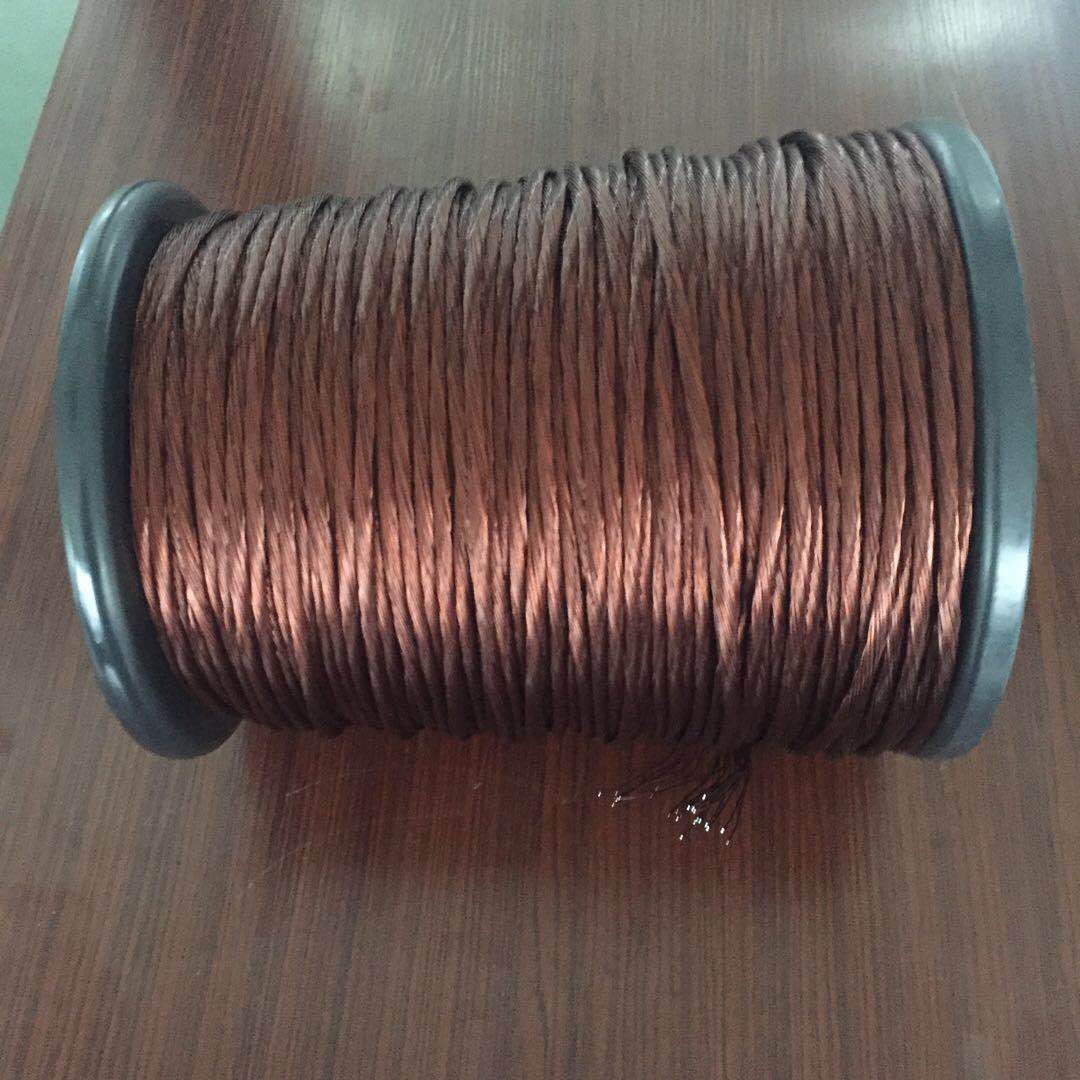

6kv 0.8 X 96 CLASS 220 HIGH FREQUENCY COPPER LITZ WIRE HIGH TEMPERATURE ENAMELED COPPER WIRE

AIW high frequency litz wire can you over 6KV breakdown voltage, 220C high temperature can give you more application

Litz wire is a type of specialized multistrand wire or cable used in electronics to carry alternating current (AC) at radio frequencies. The wire is designed to reduce the skin effect and proximity effect losses in conductors used at frequencies up to about 1 MHz.[1] It consists of many thin wire strands, individually insulated and twisted or woven together, following one of several carefully prescribed patterns[2] often involving several levels (groups of twisted wires are twisted together, etc.). The result of these winding patterns is to equalize the proportion of the overall length over which each strand is at the outside of the conductor. This has the effect of distributing the current equally among the wire strands, reducing the resistance. Litz wire is used in high Q inductors for radio transmitters and receivers operating at low frequencies, induction heating equipment and switching power supplies.

DESIGN

New design or recommmendation according to customer requirements for size,turns,current,power and environmental parameters.

Customers to use auotmatic line machine, semi-automatic machine, cutting coiling, please inform us, so that we can provide the best solution. component methods are divided into two kinds: with glue, without glue

APPLICATION

• Induction coating hobs

• RF transformers

• RF transducers

• E-Motors
