0.05mm X 130 Ustc Litz Wire Silk Covered Stranded Magnet For Transformer

Ask Lasest Price
Brand Name :	Rvyuan
Model Number :	Copper litz wire
Certification :	ISO9001/ISO14001/UL/SGS
Price :	Negotiation
Payment Terms :	Negotiation
Supply Ability :	Satisfy your demand
Delivery Time :	2-15 workding days

Add to Cart

Product Details
Company Profile

0.05mm X 130 Ustc Litz Wire Silk Covered Stranded Magnet For Transformer

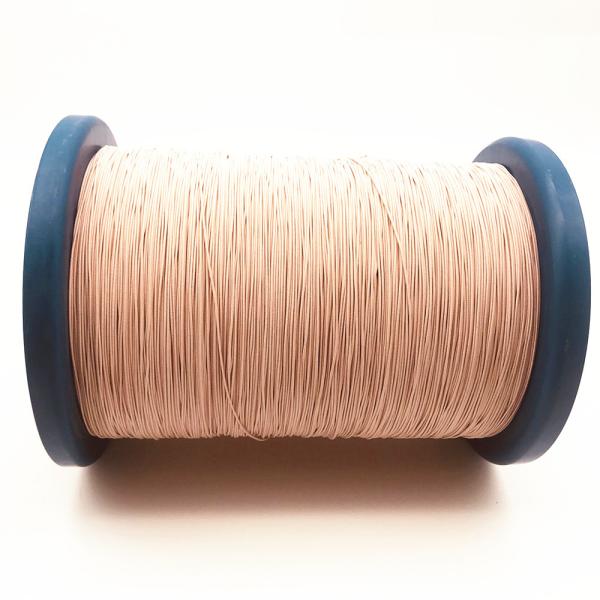

0.05mm x 130 USTC silk covered stranded magnet wire for transformer

High frequency silk covered litz wire served with natural silk, polyester or nylon is characterized by an increase in mechanical performance and excellent dimensional stability. The precise serving quality guarantees a high degree of flexibility and prevents splicing during the process of cutting the litz wire and therefore allows for optimal contacting.

The size of silk covered litz wire range we can make is 0.03-0.8mm, and strands number is 2-4000.

Name	0.05mm x 130 USTC silk covered stranded magnet wire for transformer
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.05mm
Number of strands	130
Type	Silk covered litz wire

Characteristics	Technical requests	Test Results	Conclusion
Conductor Inner diameter	0.05±0.003 mm	0.045-0.5mm	OK
Overall diameter	≤ 0.060 mm	0.055	OK
Twist direction	S/Z	Z	OK
Strands	130	130	OK
Twist Pitch	20.5±3 mm	20.6	OK
Breakdown Voltage	600V	1560	OK
Conductor Resistance	≤ 75.18Ω/km	76.16	OK
Solderability	YES	YES	OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
