0.05mm x 660 Strands Silk Covered Litz Wire USTC Copper Litz Wire

Tianjin Ruiyuan Electric Material Co,.Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 0.05mm x 660 Strands Silk Covered Litz Wire USTC Copper Litz Wire from wholesalers

    Buy cheap 0.05mm x 660 Strands Silk Covered Litz Wire USTC Copper Litz Wire from wholesalers
    • Buy cheap 0.05mm x 660 Strands Silk Covered Litz Wire USTC Copper Litz Wire from wholesalers
    • Buy cheap 0.05mm x 660 Strands Silk Covered Litz Wire USTC Copper Litz Wire from wholesalers

    0.05mm x 660 Strands Silk Covered Litz Wire USTC Copper Litz Wire

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.05*660
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 200 Ton/Tons per Month
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

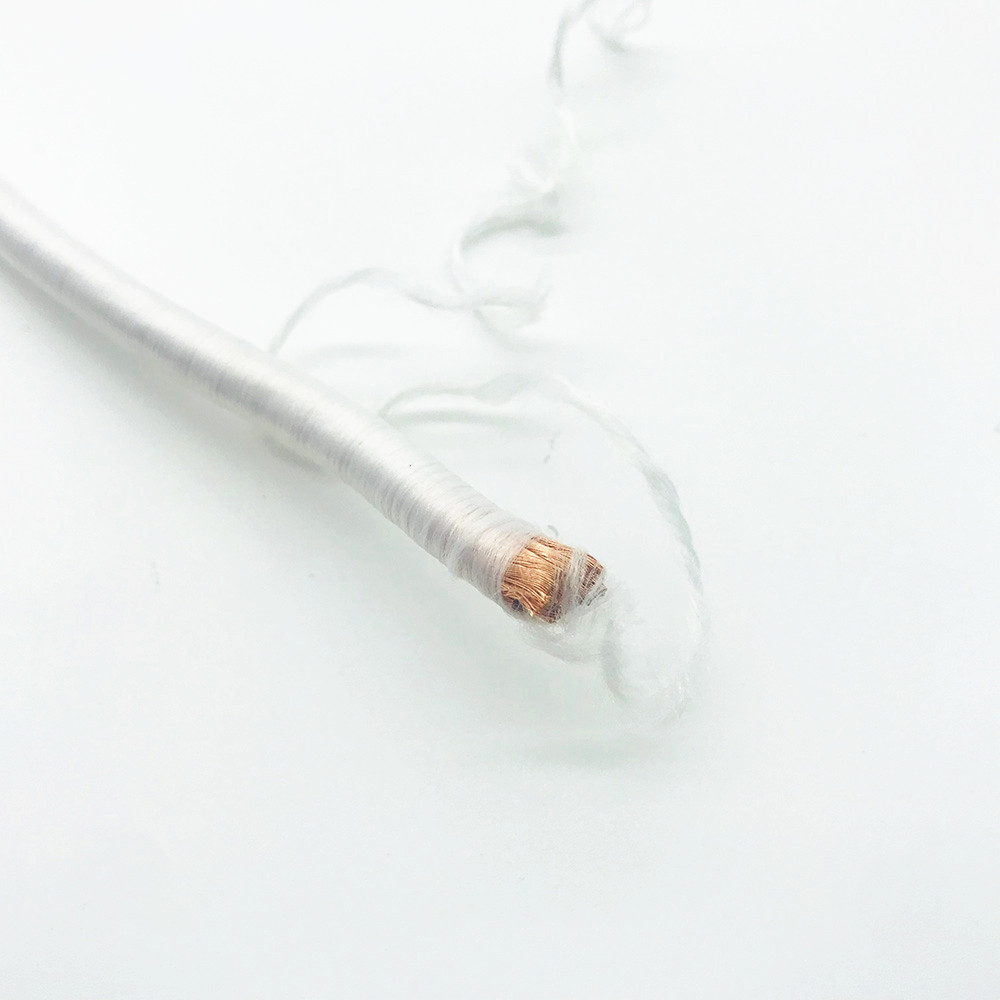

    0.05mm x 660 Strands Silk Covered Litz Wire USTC Copper Litz Wire

    0.1mm x 660 Strands Silk Covered Lize Wire Twist Copper Enameled Wire For Winding


    Litz wire employs a stranded wire with individually insulated conductors (forming a bundle). The covering with silk can improve the winding efficiency, especially at high speed.


    Test report: 0.05mm x 660 strands
    Standard
    1
    2
    Single wire diameter
    0.055-0.069mm
    0.058mm
    0.061mm
    Overall diameter
    Max. 2.41mm
    1.85mm
    1.92mm
    Pitch
    40±3
    Max resistance(Ω/Km at 20℃)
    Max. 0.01552
    0.01379
    0.01381
    Mini breakdown voltage
    Min.950
    2300
    2400
    Max pin holes fault/6m
    Max.103
    18
    15

    0.05mm x 660 Strands Silk Covered Litz Wire USTC Copper Litz Wire 0.05mm x 660 Strands Silk Covered Litz Wire USTC Copper Litz Wire


    Quality 0.05mm x 660 Strands Silk Covered Litz Wire USTC Copper Litz Wire for sale
