    UL Passed High Voltage 0.1mmx49 Copper Litz Cable

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.1*49
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : Negotiation
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

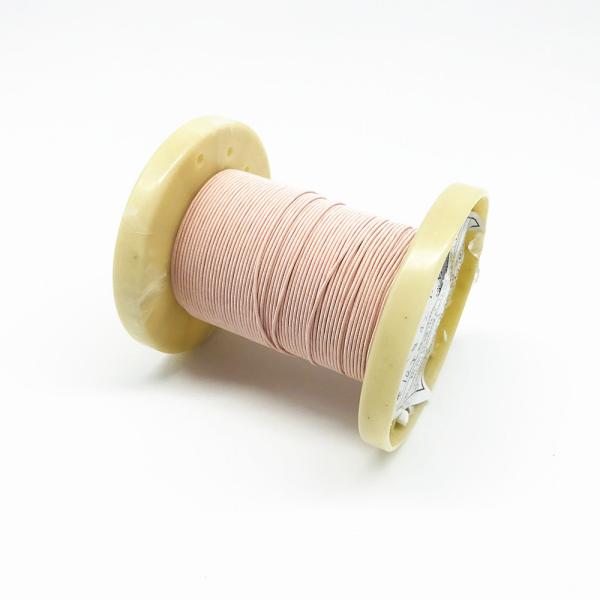

    UL Passed High Voltage 0.1mmx49 Copper Litz Cable

    High Voltage 0.1mm * 49 Silk Covered Litz Wire USTC Stranded Copper Litz Wire TEX

    Litz wire employs a stranded wire with individually insulated conductors (forming a bundle). The covering with silk can improve the winding efficiency, especially at high speed.


    FEATURES AND BENEFITS

    (a) Minimize the power losses due to "skin effect".

    (b) Superior "Q" characteristics at high frequencies.

    (c) Excellent resistance to abrasion and solvent,
    (d) Excellent electricity performance
    (e) Excellent heat shock, adherence and flexibility
    (f) High cut through


    Characteristics
    Technical requests
    Test Results
    Conductor diameter(mm)
    0.1±0.003
    0.098
    0.1
    Overall conductor diameter(mm)
    0.107-0.125
    0.110
    0.115
    No. Of strands
    49
    Max. overall diameter(mm)
    1.05
    0.87
    0.92
    Pitch(mm)
    27±3
    Max. Resistance(Ω/m 20℃)
    0.04859
    0.0432
    0.0435
    Min. Breakdown Voltage(V)
    1100
    2700
    3100
    Solderability
    390±5℃, 7s
    Pinhole(faults/6m)
    Max. 35
    6
    5
