Brand Name : | Ruiyuan |
Model Number : | 0.063mm |
Certification : | UL/ISO9001/ISO14001/RoHS/Reach |
Price : | Negotiation |
Payment Terms : | Negotiation |
Supply Ability : | 100Ton/week |
Delivery Time : | 2-15 days |

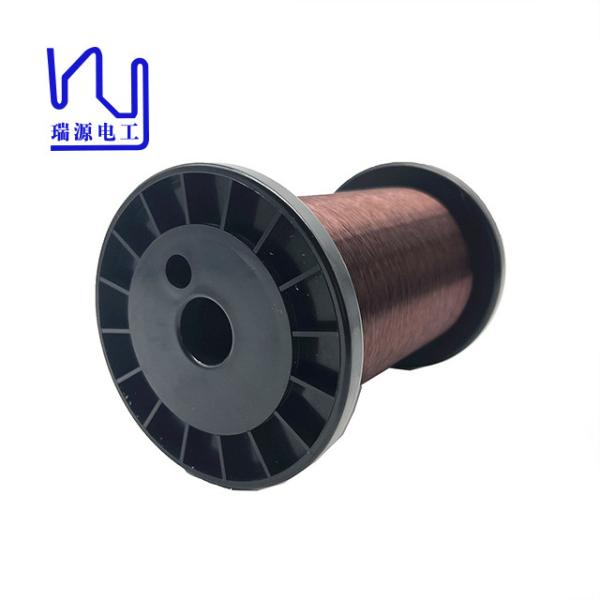

Standard 42 Awg Guitar Pickup Wire Plain Enameled
Popular insulation options include:
Some of our customers go to extremes to produce a tone that is accurate to a particular era instrument. Others are the bleeding edge of new sounds yet to be discovered.
AWG 42 Plain guitar pickup wire | ||||
Characteristics | Technical requests | Test Results | ||
Sample 1 | Sample 2 | Sample 3 | ||
Bare Wire Diameter | 0.063±0.002 | 0.063 | 0.063 | 0.063 |
Conductor Resistance | ≤ 5.900 Ω/m | 5.478 | 5.512 | 5.482 |
Breakdown voltage | ≥ 400 V | 1768 | 1672 | 1723 |
Product | Standard 42 Awg Guitar Pickup Wire Plain Enameled |
Conductor diameter | 0.063mm±0.002 |
Key word | Standard 42 Awg Guitar Pickup Wire Plain Enameled |
Coating | Plain |
![]() |
