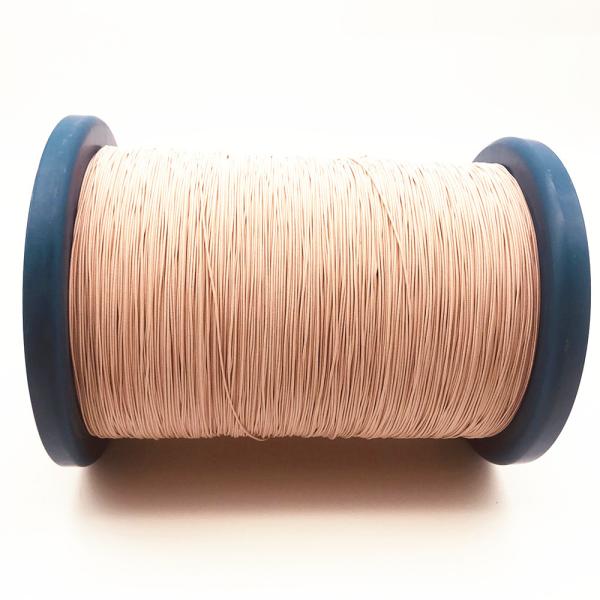

    2 - 6000 Strands 155 / 180 Ustc Nylon Covered Litz Wire Copper Twisted Silk Covered

    Ask Lasest Price
    Brand Name : Rvyuan
    Model Number : Copper litz wire
    Certification : ISO9001/ISO14001/UL/SGS
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : Satisfy your demand
    Delivery Time : 2-15 workding days
    • Product Details
    • Company Profile

    2 - 6000 Strands 155 / 180 Ustc Nylon Covered Litz Wire Copper Twisted Silk Covered

    2 - 6000 Strands 155 / 180 USTC Copper twisted wire Silk covered litz wire

    Single wire diameter (mm): 0.03-1.00

    Number of strands: 2-6000

    Maximum Finished Outer Diameter (mm): 10

    Paint film insulation class: Class B/Class F/Class H

    Film Type: Polyurethane

    Paint film thickness: 1UEW/2UEW/3UEW

    Stranding method: single twist/multiple twist

    Stranding direction: forward (S)/reverse (Z)

    Twisting distance: 20-130mm

    Filament Type: Polyester Fiber/Acetate Filament/Hot Fuse Filament

    Silk layer color: white/red

    Withstand voltage (V): >2200

    Number of silk layers: 1/2/4

    Reel Specifications: PT-4/PT-10/PT-15

    Features: In addition to the same characteristics as enameled stranded wire, silk covered wire has the characteristics of stable shape and good impregnation effect, and the breakdown voltage can be increased by 500~1200V.

    Applications: Antenna inductors, high-power LED lighting, LCD TVs, ultrasonic equipment, high-power high-frequency transformers, metal detectors, mobile phone wireless charging, etc.


    Test report: 0.08mm x 560 strands, thermal grade 180
    Item
    Standard
    Test result
    Single wire diameter mm
    0.087-0.103
    0.090
    0.093
    Max. overall diameter(mm)
    3.35
    2.55
    2.70
    Max.O.D. mm
    0.08±0.003
    0.078
    0.080
    Max. Resistance Ω/m at20℃
    0.006741
    0.00618
    0.00622
    Mini breakdown voltage
    1100
    2700
    3200

    Name

    0.03mm -0.8mm 155 / 180 Ustc UDTC High Frequency Enameled Copper Litz Wire

    Key word

    Copper litz wire

    Insulationh

    Enamel, polyster cover

    Thermal rating

    155degree

    Diameter of the enameled copper wire

    0.08mm

    Number of strands

    155 / 180

    Type

    0.03mm -0.8mm 155 / 180 Ustc UDTC High Frequency Enameled Copper Litz Wire
