Brand Name : | Rvyuan |
Model Number : | Copper litz wire |
Certification : | ISO9001/ISO14001/UL/SGS |
Price : | Negotiation |
Payment Terms : | Negotiation |
Supply Ability : | Satisfy your demand |
Delivery Time : | 2-15 workding days |

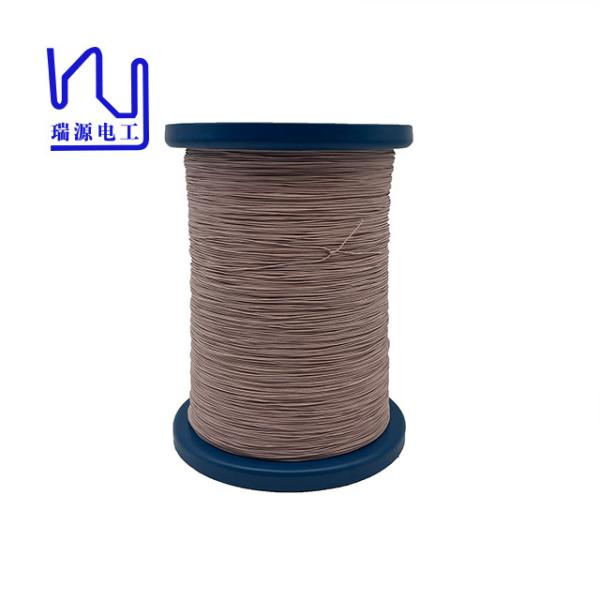

USTC/UDTC 0.04mm class 155 Nylon Silk Copper Litz
Copper Nylon Litz wire is an insulated cable consisting of strands of finely insulated flexible copper wires. The insulation covering the strands, usually nylon or polyester filaments, helps prevent short circuits and prevents interference with nearby cables and equipment. Nylon-clad Litz wire offers superior electrical performance due to its higher flexibility and lower skin effect losses compared to other types of wiring. It can be used in a wide range of applications such as high frequency signal transmission, radio frequency (RF) shielding, aerospace engineering, and robotic control systems.
Item | Standard | Sample 1 | Sample 2 |
single wire conductor diameter (mm) | 0.04±0.002 | 0.038 | 0.0.004 |
Outer diameter of single wire(mm) | 0.045-0.076 | 0.052 | 0.0554 |
Maximum overall dimension (mm) | 0.86 | 0.71 | 0.75 |
Pitch(mm) | 27±3 | √ | √ |
Max.Resistance((Ω/m at20℃) | 0.1119 | 0.1010 | 0.1006 |
Mini breakdown voltage (V) | 1300 | 3900 | 4100 |
Max pin holes faults/6m | 24 | 5 | 4 |
Solderablilty | 390±5℃, 6s | √ | √ |
Surface | Smooth | √ | √ |
![]() |
