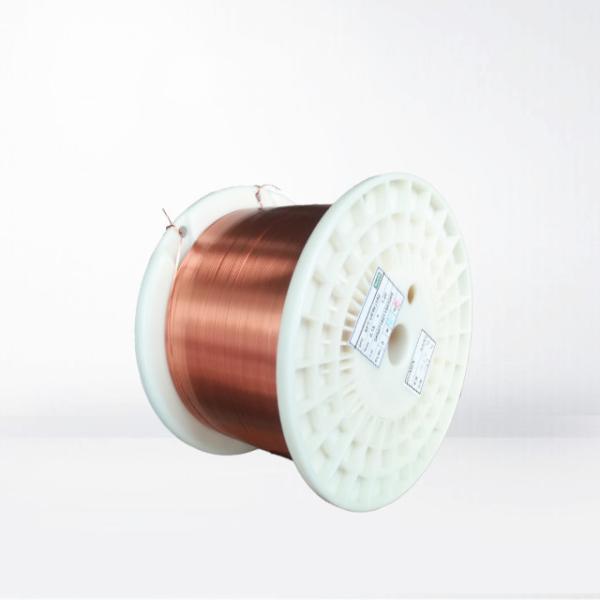

    Aiw220 Super Thin Flat Copper Magnet Wire For Motor Winding

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 3.00mm * 0.16mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    Aiw220 Super Thin Flat Copper Magnet Wire For Motor Winding

    AIW220 Super thin flat copper enameled wire for motor winding


    There are myriad electrical applications that rely on enameled rectangular wire. Because of its ability to reduce corona discharge, enamel rectangular wire increases safety and reduces costly electric energy wastage. These wires are also fire-resistant, making them a safe choice to use with equipment that may be exposed to intense heat or flames. It is also easy to wind and store.


    Ruiyuan has provided industry-leading enamel rectangular wires for a number of industrial applications including:


    Automotive

    Electric devices

    Engines

    Generators

    Transformers


    Product nameAIW220 Super thin flat copper enameled wire for motor winding
    Coating materialAIW
    Key wordAIW220 Super thin flat copper enameled wire for motor winding
    Characteristics
    Standard
    Test Result
    Appearance
    Smooth Equality
    Smooth Equality
    Conductor Diameter
    Width
    3.00
    ±0.060

    2.993

    Thickness
    0.160
    ±0.009
    0.593
    Min.thickness of insulationThickness0.0200.047
    Width0.0300.593
    Overall Diameter
    (Including bonding layer)
    Thickness
    Max.3.100
    3.040
    Width
    Max.0.650
    0.635
    Pinhole
    2 hole/m
    0
    Elongation
    Min ≥30%
    41
    Flexibility and Adherence
    No crack
    No crack
    Conductor Resistance (Ω/km at 20℃)
    10.37
    9.11
    Breakdown Voltage
    Min1.00kv
    2.10
    Heat shock
    No Crack

    Aiw220 Super Thin Flat Copper Magnet Wire For Motor Winding

    Aiw220 Super Thin Flat Copper Magnet Wire For Motor Winding

    Aiw220 Super Thin Flat Copper Magnet Wire For Motor Winding

    Aiw220 Super Thin Flat Copper Magnet Wire For Motor Winding

    Quality Aiw220 Super Thin Flat Copper Magnet Wire For Motor Winding for sale
