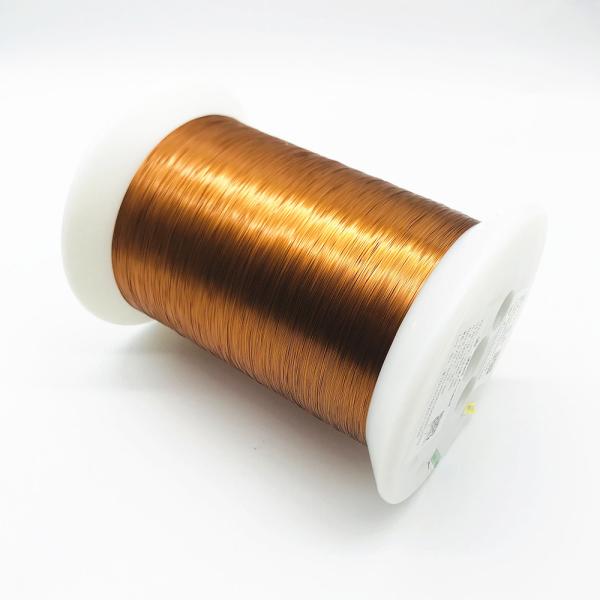

    Aiw 220 0.7mm Flat Enameled Copper Wire Alcohol Sv Self Bonding

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.3mm* 0.18
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    Aiw 220 0.7mm Flat Enameled Copper Wire Alcohol Sv Self Bonding

    AIW 220 0.7mm Alcohol SV Self Bonding Flat Enameled Copper Wire


    We offer high quality rectangular enameled copper wire, made of oxygen free copper, the thickness of the flat enameled copper wire range from 0.04mm-1.8mm. width from 0.115mm-7.5mm, class 180 and class 220 with or without self bonding layer are available.


    Bonding method: Alcohol/hot wind

    Model: SFT-HB/AIWJ 220 0.7*0.21mm

    Characteristics

    Standard


    Test Result

    Appearance

    Smooth Equality


    Smooth Equality

    Conductor Diameter(mm)


    Width

    0.70±0.060

    0.712

    Thickness

    0.21±0.009

    0.205

    Min.thickness of insulation(mm)


    Width

    0.014-0.021

    0.020

    Thickness

    0.014-0.021

    0.019

    Min. Thickness of bonding layer


    Width

    0.004-0.008

    0.008

    Thickness

    0.004-0.008

    0.008

    Overall Diameter(mm)


    Width

    0.770

    0.768

    Thickness

    0.265

    0.145

    Pinhole

    Max. 3hole/m


    0

    Flexibility and Adherence

    No crack


    No crack

    Conductor Resistance (Ω/km at 20℃)

    Max 0.122


    0.133

    Breakdown Voltage

    Min 0.30kv


    2.10kv

    Heat shock

    No Crack


    No Crack

    Conclution

    Pass
