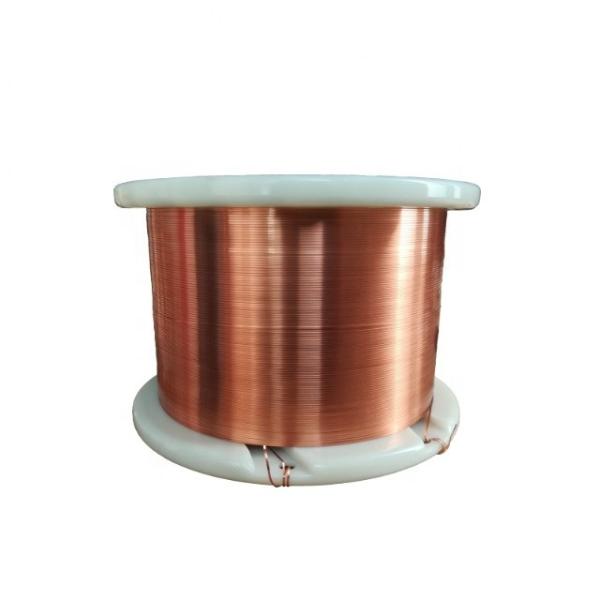

    Bondable High Temperature Rectangular Copper Wire 0.60mm For Automotive

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 3.00mm * 0.60mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    Bondable High Temperature Rectangular Copper Wire 0.60mm For Automotive

    Factory High Temperature Enameled Rectangular Copper Wire 0.60mm For Automotive


    ♢ Features:

    ·The space factor is high, and the production of smaller and lighter electronic motor products is no longer limited by the size of the coil.

    ·The density of conductors per unit area increases, and small-sized and high-current products can be realized.

    ·The heat dissipation performance and electromagnetic effect are better than that of enameled round copper wire.


    Characteristics
    Standard
    Test Result
    Appearance
    Smooth Equality
    Smooth Equality
    Conductor Diameter
    Width
    3.00
    ±0.060

    2.993

    Thickness
    0.160
    ±0.009
    0.593
    Min.thickness of insulationThickness0.0200.047
    Width0.0300.593
    Overall Diameter
    (Including bonding layer)
    Thickness
    Max.3.100
    3.040
    Width
    Max.0.650
    0.635
    Pinhole
    2 hole/m
    0
    Elongation
    Min ≥30%
    41
    Flexibility and Adherence
    No crack
    No crack
    Conductor Resistance (Ω/km at 20℃)
    10.37
    9.11
    Breakdown Voltage
    Min1.00kv
    2.10
    Heat shock
    No Crack
