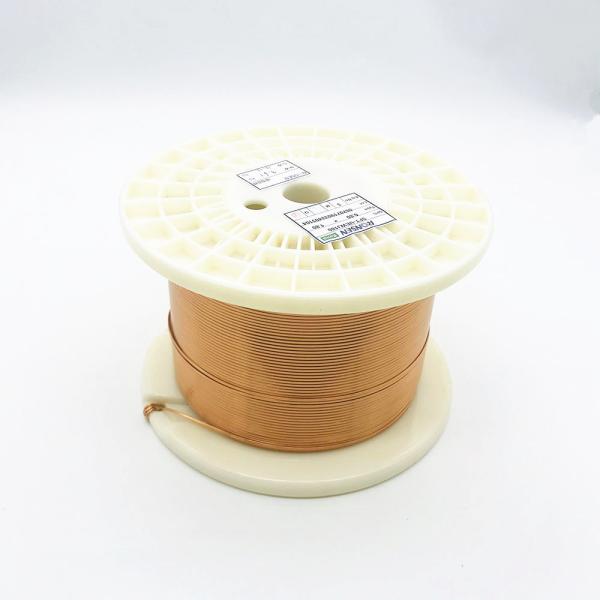

CLASS 220 0.9MM*0.4MM RECTANGULAR ENAMELED COPPER WIRE SQUARE MAGNET WINDING WIRE

Meet design requirement of lower height, smaller size, lighter and more power. The wire is widely used in electronics, electric application, motor, network communication, smart home, new energy, automobile electronic, medical electronic, military electronic, spaceflight.

Bigger surface area than round wire at the same cross section, reduce skin effect effectively, decrease current loss, that's better to adpat high frequency transduction.

High space factor and fill in ratio, greatly reduce resistance, pass bigger current, get higher Q value that is better to adapt high current load.

The product that use rectangular wire has such features:simple in structures, good heat dissipation, stable performance, stable good consistency. Maintain stable temperature rise current and saturation current in high frequency and high temperature environmnet anti EMI, small vibration, low noise and install in high density.

APPLICATIONS

1) 120 degree flat enameled wire for oil-immersed transformer
2) 130,155,180 degree flate enameled wire are widely used in all kinds of magnet coil
3) 200 degree flat enameled wire works constantly in high temperature
4) 240 degree flat enameled wire for magnet coils of aviation,military and marine application

TEST REPORT

Model: SFT-UEWJ220

size:0.90*0.40mm

RUIYUAN was established in 2002, located in Tianjin City,the second largest port city in China.We have been focusing on different kinds of high quality wires: enameled round copper wire, rectangular enameled copper triple insulated wire, silk covered Litz wire, bonding wire and special enameled wire for 21 years.Ruiyuan is one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience. In 2019, our finest diameter is 0.011mm, and mass production has been achieved. All of our products are UL, RoHS certified, in line with industry standards IEC60317, JIS C 3202, NEMA, NW82.
