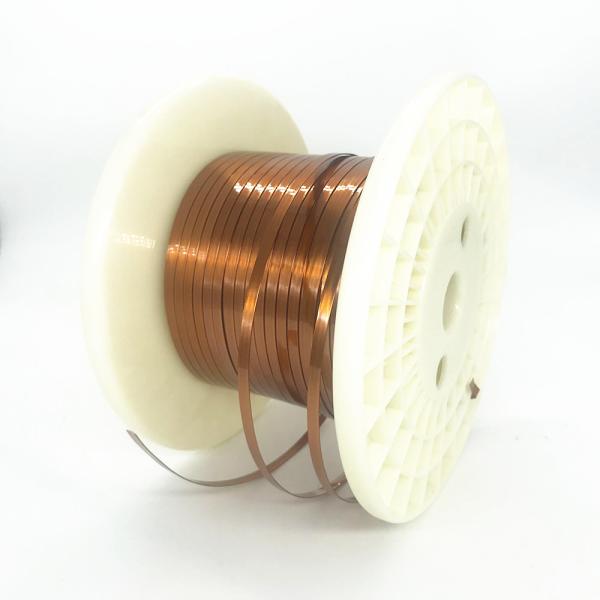

    UEW Class 180 Thickness 0.5mm Rectangular Copper Wire

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 5.0mm x 0.5mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : L/C, , T/T
    Supply Ability : 200 Ton/Tons per Month
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    UEW Class 180 Thickness 0.5mm Rectangular Copper Wire

    5.0mm x 0.5mm Class 180 Flat Enameled Magnet Wire Rectangular Copper Wire


    Meet design requirement of lower height, smaller size, lighter and more power.The wire is widely used in electronice, military electronic, spaceflight.


    Bigger surface area than round wire at the same cross section, reducce skin effect effectively, decrease current loss, that/s better to adpat high frequency transduction.


    High space factor and fill in ratio, greatly reduce resistance, pass bigger current, get higher Q value that is better to adapt high current load.


    The product that use rectangular wire has such features: simple in structures, good heat dissipation ,stable performance, stablegood consistency. Maintain stable temperature rise current and saturation current in high frequency and high temperature environment anti EMI, small vibration, low noise and install in high density.


    APPLICATIONS

    1) 120 degree flat enameled wire for oil-immersed transformer
    2) 130,155,180 degree flate enameled wire are widely used in all kinds of magnet coil
    3) 200 degree flat enameled wire works constantly in high temperature
    4) 240 degree flat enameled wire for magnet coils of aviation,military and marine application.


    UEW Class 180 Thickness 0.5mm Rectangular Copper Wire


    Specification

    CharacteristicsStandardTest Result
    AppearanceSmooth EqualitySmooth Equality
    Conductor DiameterWidth5.00±0.0605.023
    Thickness0.50±0.0090.500
    Thickness of InsulationWidth0.0200.048
    Thickness0.0300.048
    Overall DiameterWidth5.1005.071
    Thickness0.5500.548
    PinholeMax ≤3hole/m0
    ElongationMin ≥30 %41%
    Flexibility and AdherenceNo crackNo crack
    Conductor Resistance (Ω/km at 20℃)Max 7.417.03
    Breakdown VoltageMin 0.70kv1.70
    Heat shockNo CrackNo Crack
    ConclutionPass
