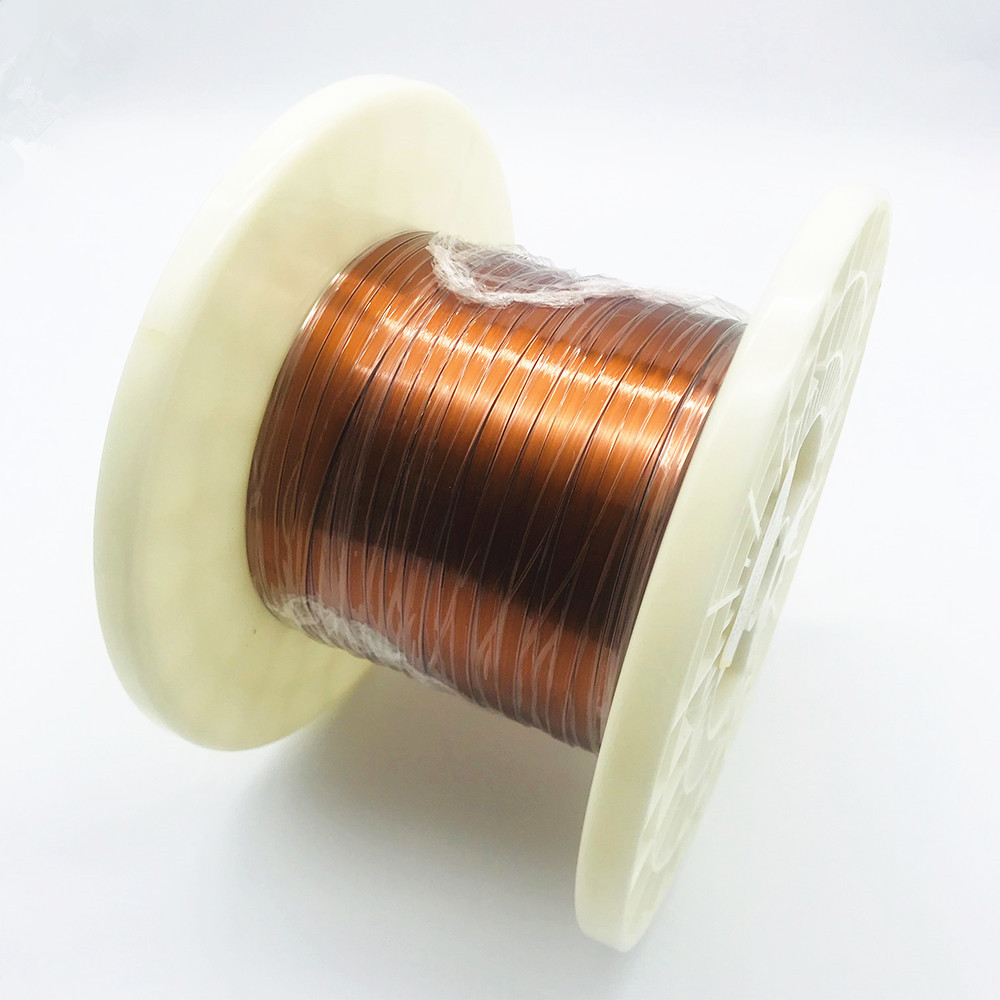

    AIW 220 5.0*0.5mm Flat Enameled Rectangular Copper Wire

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 5*0.5mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    AIW 220 5.0*0.5mm Flat Enameled Rectangular Copper Wire

    AIW220 5.0*0.5mm Flat Enameled copper Wire For Motor Rectangular Copper Wire


    Rectangular enameled copper wire is a core product in everyday products and modern infrastructure, and we offer a complete range of copper wire for all kinds of applications. Round and rectangular enameled copper wire Besides the wide standard range we offer customer specific solutions, tailor-made to suit every possible needs. Whether standard or special, all our winding wire is manufactured in a high-precision process using state-of-the-art technology and manned by dedicated professionals.


    Model:SFT-EI/AIWJ 220 size: 5.0mm*0.5mm
    Item
    Characteristics
    Standard
    Test Result
    1
    Apperance
    Smooth Equality
    Smooth Equality
    2
    Conductor Diameter
    Width
    5.0
    ±0.006
    4.989
    Thickness
    0.5
    ±0.009
    0.498
    3
    Thickness Insulation
    Width
    ≥0.020
    0.049
    Thickness
    ≥0.030
    0.050
    4
    Overall Diameter
    Width
    ≤5.100
    5.038
    Thickness
    ≤0.550
    0.542
    5
    Pinhole
    ≤3hole/m
    0
    6
    Elongation
    ≥30 %
    40
    7
    Flexibility and Adherence

    No crack
    No crack
    8
    Conductor Resistance (Ω/km at 20℃)
    ≤7.26
    7.12
    9
    Breakdown Voltage
    ≥0.7KV
    1.5KV
    10
    Heat shock
    No Crack
    No Crack
    Conclution
    Pass
