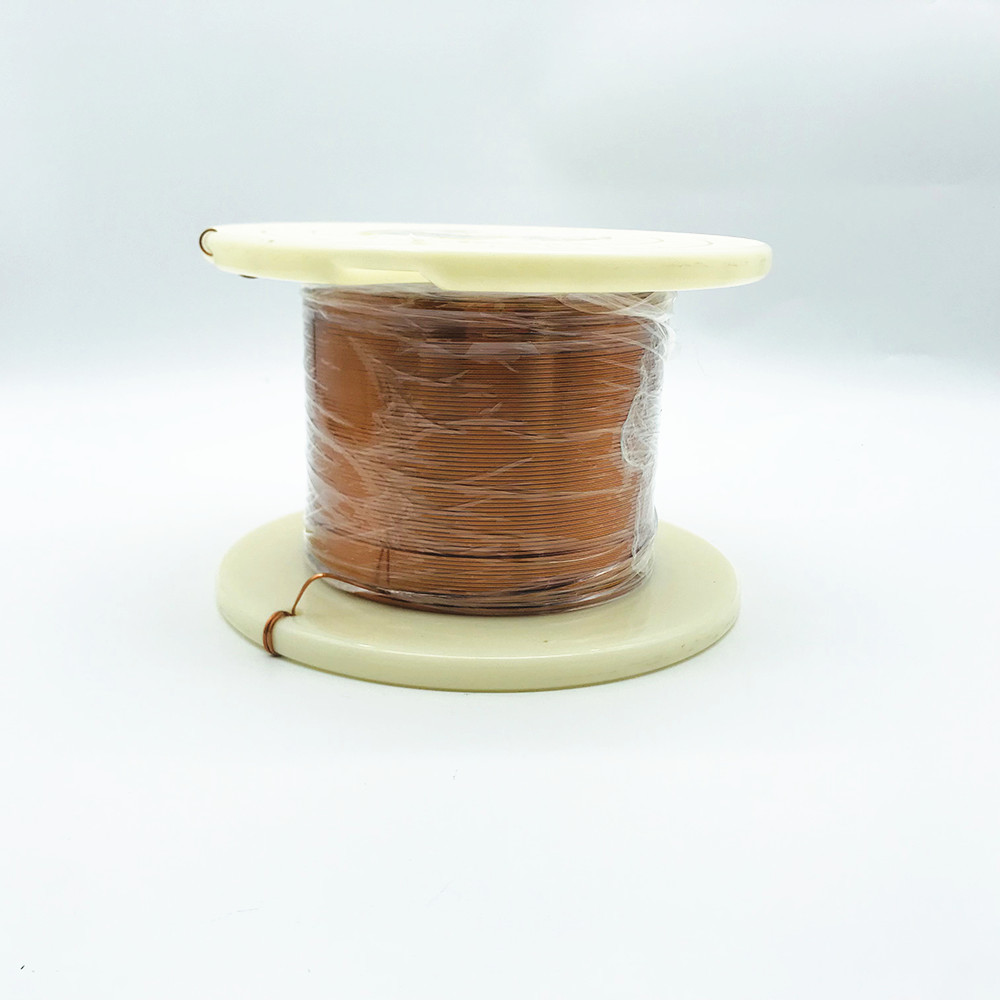

    AIW Rectangular Copper Enamel Wire Class 220 2.0*1.0mm

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 2.0*1.0mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    AIW Rectangular Copper Enamel Wire Class 220 2.0*1.0mm

    Amide-imde Class 220 2.0*1.0mm Enameled Rectangular Copper Wire For Motor


    We supply rectangular enameled copper wire, it' widely used in motor. The rectangular enameled copper wire can be customized the flat copper wire to your needs.Thickness range from 0.04mm-1.8mm. width from 0.115mm-7.5mm, class 180 and class 220 with or without self bonding layer are available.


    Characteristics
    Standard
    Test Result
    Appearance
    Smooth Equality
    Smooth Equality
    Conductor Diameter
    Width
    2±0.060
    1.982
    Thickness
    1±0.060
    0.981
    Thickness Insulation
    Width
    0.02
    0.055
    Thickness
    0.03
    0.064
    Overall Diameter
    Width
    2.1
    2.037
    Thickness
    1.05
    1.045
    Pinhole
    ≤3hole/m
    0
    Elongation
    ≥30 %
    39
    Flexibility and Adherence
    No crack
    No crack
    Conductor Resistance (Ω/km at 20℃)
    ≤10.27
    9.53
    Breakdown Voltage
    ≥0.7KV
    2.3KV
    Heat shock
    No Crack
    No Crack
