0.05 X 32 High Frequency FIW Wire Enameled Copper Stranded Litz Wire

Ask Lasest Price
Brand Name :	Rvyuan
Model Number :	AWG 54
Certification :	IEC/NEMA/JIS/RoHS/ISO
Price :	Negotiation
Payment Terms :	T/T, L/C
Supply Ability :	200 Ton/Tons per Month
Delivery Time :	2-15 workding days

Add to Cart

Product Details
Company Profile

0.05 X 32 High Frequency FIW Wire Enameled Copper Stranded Litz Wire

0.05 X 32 HIGH FREQUENCY FIW WIRE ENAMELED COPPER WIRE STRANDED LITZ WIRE

Fully insulated (FIW) zero-defect enamelled round copper wire is the wire with high thermal class, Zero-defect strengthened insulation and high voltage resistance compliance with IEC60317-56 / IEC60950U and NEMA MW85-C. FIW is an alternative wire to build electronic transformers typically using TIW (Triple Insulated Wires)The wire can meet the requirements of miniaturized components, good winding performance and low cost, applied small transformer, electronic switch etc.

PRODUCT FEATURES

Type of insulation layer:Solderable polyurethane enameled round copper wire;
High thermal class 180;
High break down voltage, up to 15KV;
High insulation resistance,up to 6000Vrms,1min;
Solderable at 390℃, (no need to peel insulation);
High cut-through temperature, 250℃,2s no cut through, Air Reflow ( peak temperature 260℃), no crack；

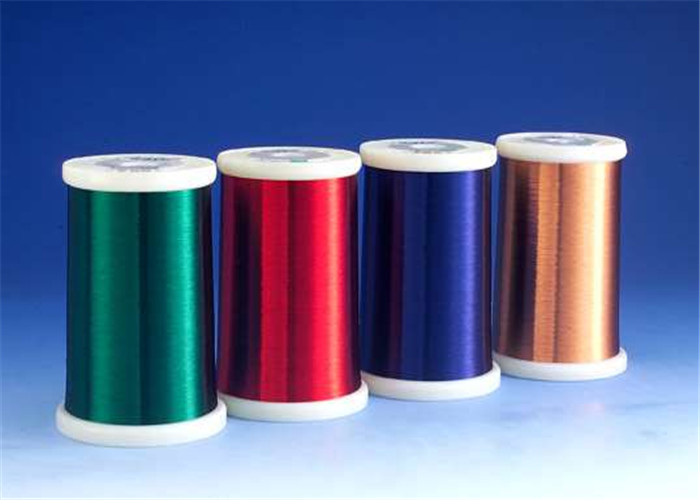

Color option: natural(N)/red(R)/green(G)/blue(B)/violet(V)/brown(BR)/Yellow(Y);
Very good winding performance, suitable for high speed winding machine.
Min.diameter can be 0.04mm.

0.05 X 32 High Frequency FIW Wire Enameled Copper Stranded Litz Wire

WIEGHT VS. LENGTH

Nom.Diameter(mm)	FIW Weight per Km (Kg/Km)							FIW Length per Kg(Km/Kg)
Nom.Diameter(mm)	FIW3	FIW4	FIW5	FIW6	FIW7	FIW8	FIW9	FIW3	FIW4	FIW5	FIW6	FIW7	FIW8	FIW9
0.040	0.013	0.014	0.015	0.017	0.019	0.021		77.95	73.10	65.71	59.43	53.66	48.43
0.050	0.020	0.021	0.023	0.025	0.027	0.030		50.33	47.49	43.66	40.01	36.59	33.44
0.060	0.028	0.030	0.033	0.036	0.039	0.043		35.16	33.10	30.48	27.97	25.62	23.44
0.071	0.059	0.041	0.044	0.047	0.051	0.055	0.059	16.99	24.39	22.78\|	21.22	19.73	18.32	16.99
0.080	0.049	0.052	0.055	0.059	0.063	0.068	0.073	20.27	19.31	18.10	16.92	15.79	14.71	13.69
0.090	0.062	0.065	0.069	0.073	0.077	0.082	0.088	16.08	15.41	14.56	13.72	12.91	12.13	11.39
0.100	0.076	0.080	0.085	0.090	0.096	0.102	0.109	13.07	12.54	11.83	11.13	10.45	9.80	9.19
0.120	0.110	0.114	0.121	0.128	0.136	0.144	0.153	9.10	8.74	8.27	7.82	7.37	6.95	6.54
0.140	0.149	0.154	0.162	0.171	0.181	0.192	0.203	6.73	6.48	6.16	5.84	5.53	5.22	4.93
0.160	0.193	0.200	0.210	0.221	0.234	0.247	0.261	5.18	4.99	4.75	4.51	4.28	4.06	3.84
0.180	0.244	0.253	0.265	0.278	0.293	0.309	0.325	4.10	3.96	3.78	3.59	3.42	3.24	3.07
0.200	0.300	0.310	0.324	0.339	0.355	0.373	0.392	3.33	3.23	3.09	2.95	2.81	2.68	2.55
0.250	0.467	0.482	0.502	0.525	0.549	0.575	0.603\|	2.14	2.08	1.99	1.91	1.82	1.74	1.66
0.300	0.669	0.687	0.712	0.739	0.768	0.798	0.831	1.49	1.46	1.40	1.35	1.30	1.25	1.20
0.400	1.177	1.202	1.233	1.267	1.303	1.340		0.85	0.83	0.81	0.79	0.77	0.75

MAX. OVERALL DIAMETER AND MIN. BREAKDOWN VOLTAGE

Nom.Diameter(mm)	Tolerance(mm)	Max.Overall diameter (mm)
Nom.Diameter(mm)	Tolerance(mm)	Grade ofFIW3	Grade ofFIW4	Grade ofFIW5	Grade ofFIW6	Grade ofFIW7	Grade ofFIW8	Grade ofFIW9
0.040	±0.003	0.058	0.069	0.079	0.089	0.099	0.109	-
0.050	±0.003	0.072	0.083	0.094	0.105	0.116	0.127
0.060	±0.003	0.085	0.099	0.112	0.125	0.138	0.151	-
0.071	±0.003	0.098	0.110	0.123	0.136	0.149	0.162	0.175
0.080	±0.003	0.108	0.122	0.136	0.150	0.164	0.178	0.192
0.090	±0.003	0.120	0.134	0.148	0.162	0.176	0.190	0.204
0.100	±0.003	0.132	0.148	0.164	0.180	0.196	0.212	0.228
0.140	±0.003	0.181	0.201	0.221	0.241	0.261	0.281	0.301
0.160	±0.003	0.205	0.227	0.249	0.271	0.293	0.315	0.337
0.180	±0.003	0.229	0.253	0.277	0.301	0.325	0.349	0.373
0.200	±0.003	0.252	0.277	0.302	0.327	0.352	0.377	0.402
0.250	±0.004	0.312	0.342	0.372	0.402	0.432	0.462	0.492
0.300	±0.004	0.369	0.400	0.431	0.462	0.493	0.524	0.555
0.400	±0.005	0.478	0.509	0.540	0.571	0.602	0.633	-
Nom.Diameter(mm)	Tolerance(mm)	Min. Breakdown voltage (V)
Nom.Diameter(mm)	Tolerance(mm)	Grade ofFIW3	Grade ofFIW4	Grade ofFIW5	Grade ofFIW6	Grade ofFIW7	Grade ofFIW8	Grade ofFIW9
0.040	±0.003	1458	2349	3159	3969	4779	5589	-
0.050	±0.003	1782	2673	3564	4455	5346	6237	-
0.060	±0.003	2025	3159	4212	5265	6318	7371	-
0.071	±0.003	2187	3159	4212	5265	6318	7371	8424
0.080	±0.003	2268	3402	4536	5670	6804	7938	9072
0.090	±0.003	2430	3564	4698	5832	6966	8100	9234
0.100	±0.003	2592	3888	5184	6480	7776	9072	10368
0.120	±0.003	2888	4256	5624	6992	8360	9728	11096
0.140	±0.003	3116	4636	6156	7676	9196	10716	12236
0.160	±0.003	3420	5092	6764	8436	10108	11780	13452
0.180	±0.003	3724	5548	7372	9196	11020	12844	14668
0.200	±0.003	3952	5852	7752	9652	11552	13452	15352
0.250	±0.004	4712	6992	9272	11552	13832	16112	18392
0.300	±0.004	5244	7600	9956	12312	14668	17024	19380
0.400	±0.005	5460	7630	9800	11970	14140	16310	-

Product Tags:

litz FIW Wire

2UEW FIW Wire

32 Strands FIW Wire
