0.1mm-1mm Magnetic Copper Wire Enamel Coating For Motor Winding FIW Wire

Ask Lasest Price
Brand Name :	Rvyuan
Model Number :	FIW
Certification :	IEC/NEMA/JIS/RoHS/ISO
Price :	Negotiation
Payment Terms :	Negotiation
Supply Ability :	Satisfy your demand
Delivery Time :	2-15 workding days

Add to Cart

Product Details
Company Profile

0.1mm-1mm Magnetic Copper Wire Enamel Coating For Motor Winding FIW Wire

0.1MM-1MM COPPER TRIPLE INSULATED WIRE TIW-B WITH UL CERTIFICATE

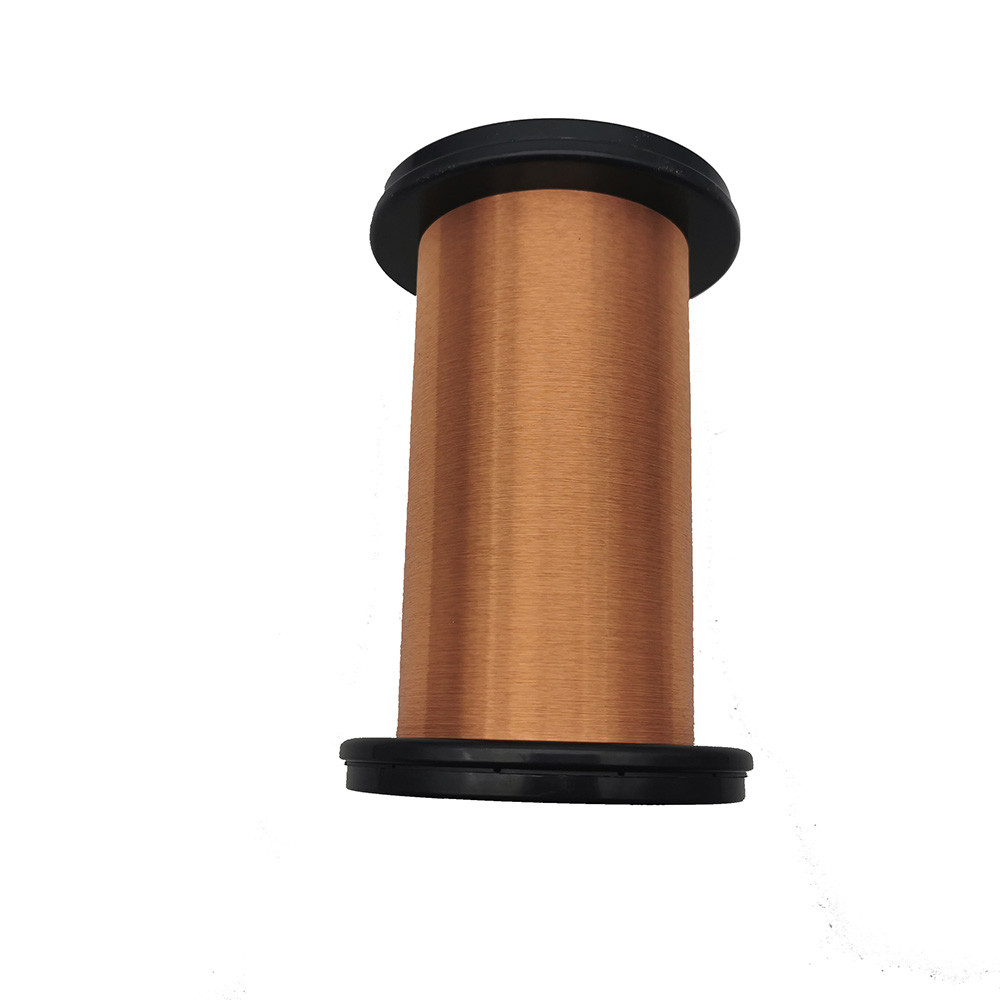

0.1mm-1mm Magnetic Copper Wire Enamel Coating For Motor Winding FIW Wire

Fully insulated (FIW) zero-defect enamelled round copper wire ,class 180,is wire with high thermal class, Zero-defect strengthened insulation and high voltage resistance compliance with IEC60317-56.The wire can meet the requirements of miniaturized components, good winding performance and low cost, applied small transformer, electronic switch etc. The wire is the best substitute material for TIW(Triple Insulated Wire).

SPECIFICATION

Conductor m/m		End product m/m		Maximum Conductor Resistance at 20 ℃	Minimum Elongation %
Diameter m/m	Tolerance m/m	Target outside diameter	Tolerance m/m
Diameter m/m	Tolerance m/m	Target outside diameter	Tolerance m/m
0.15	±0.008	0.35	±0.02	1111	15
0.16	±0.008	0.36	±0.02	908.8	15
0.17	±0.008	0.37	±0.02	853.5	15
0.18	±0.008	0.38	±0.02	757	15
0.19	±0.008	0.39	±0.02	676.2	15
0.2	±0.008	0.4	±0.02	607.6	15
0.21	±0.008	0.41	±0.02	549	15
0.22	±0.008	0.42	±0.02	498.4	15
0.23	±0.008	0.43	±0.02	454.5	15
0.24	±0.008	0.44	±0.02	416.2	15
0.25	±0.008	0.45	±0.02	382.5	15
0.26	±0.010	0.46	±0.02	358.4	15
0.27	±0.010	0.47	±0.02	331.4	15
0.28	±0.010	0.48	±0.02	307.3	15
0.29	±0.010	0.49	±0.02	285.7	20
0.3	±0.010	0.5	±0.02	262.9	20
0.32	±0.010	0.52	±0.02	230	20
0.35	±0.010	0.55	±0.02	191.2	20
0.37	±0.010	0.57	±0.02	170.6	20
0.4	±0.010	0.6	±0.02	145.3	20
0.45	±0.010	0.65	±0.02	114.2	20
0.5	±0.010	0.7	±0.02	91.4	20
0.55	±0.020	0.75	±0.02	78.2	20
0.6	±0.020	0.8	±0.02	65.3	20
0.65	±0.020	0.85	±0.02	88.3	20
0.7	±0.020	0.9	±0.02	47.2	20
0.75	±0.020	0.95	±0.02	41.2	20
0.8	±0.020	1	±0.02	36.1	25
0.85	±0.020	1.05	±0.02	31.9	25
0.9	±0.020	1.1	±0.02	28.4	25
0.95	±0.020	1.15	±0.02	25.4	25
1	±0.030	1.2	±0.02	23.3	25
