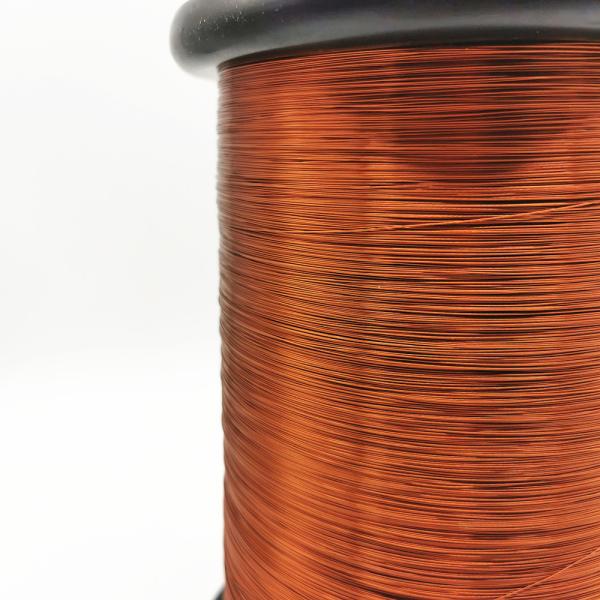

    Fiw Enameled Copper Round Wire For Transformer Winding

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.3mm* 0.18
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    Fiw Enameled Copper Round Wire For Transformer Winding

    High Voltage Enameled Copper Wire FIW Wire For Transformer Winding

    Type of insulation layer: Solderable polyurethane enameled round copper wire;

    High thermal class 180;

    High break down voltage, up to 15KV;

    High insulation resistance,up to 6000Vrms,1min;

    Solderable at 390℃, (no need to peel insulation);

    High cut-through temperature, 250℃,2s no cut through, Air Reflow ( peak temperature 260℃), no crack;

    Very good winding performance, suitable for high speed winding machine.

    Min.diameter can be 0.04mm.


    Diameter(mm)
    Min. Breakdown voltage (V)
    Grade of FIW3
    Grade of FIW4
    Grade of FIW5
    Grade of FIW6
    0.040
    1458
    2349
    3159
    3969
    0.050
    1782
    2673
    3564
    4455
    0.060
    2025
    3159
    4212
    5265
    0.071
    2187
    3159
    4212
    5265
    0.080
    2268
    3402
    4536
    5670
    0.090
    2430
    3564
    4698
    5832
    0.100
    2592
    3888
    5184
    6480
    0.120
    2888
    4256
    5624
    6992
    0.140
    3116
    4636
    6156
    7676
    0.160
    3420
    5092
    6764
    8436
    0.180
    3724
    5548
    7372
    9196
    0.200
    3952
    5852
    7752
    9652
    0.250
    4712
    6992
    9272
    11552
    0.300
    5244
    7600
    9956
    12312
    0.400
    5460
    7630
    9800
    11970
