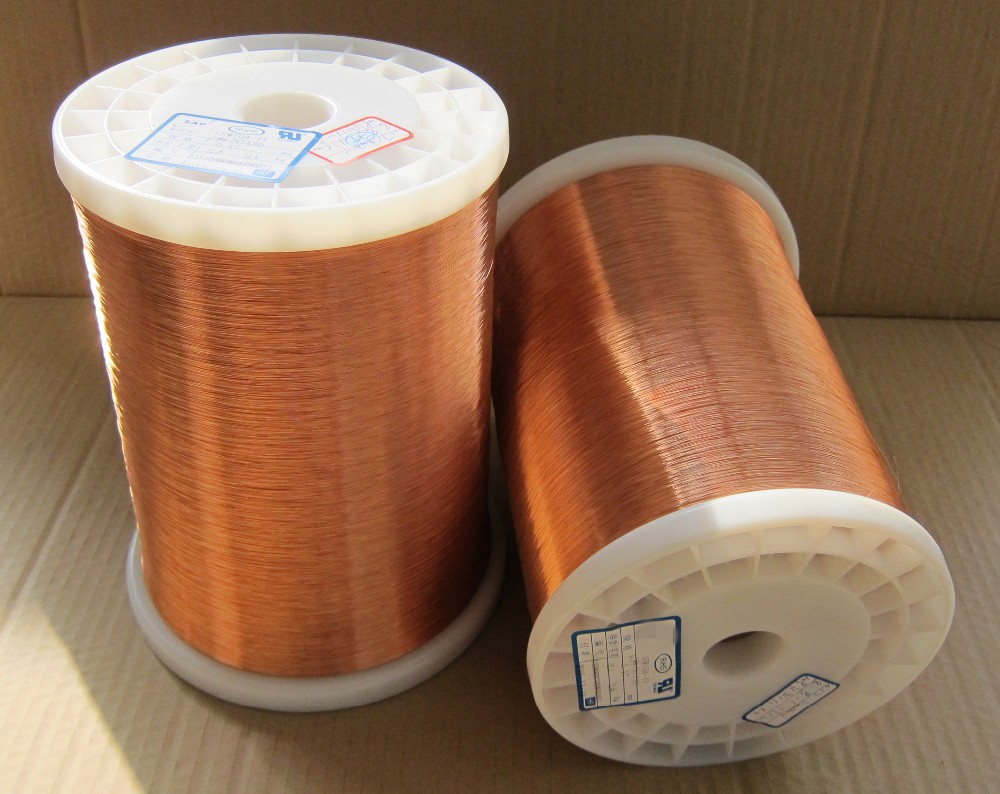

Class 180 0.71mm Diameter Enameled Copper Wire Ultra Fine Magnet Wire Polyurethane Coating Enamelled Wire

Ask Lasest Price
Brand Name :	Rvyuan
Model Number :	0.71mm
Certification :	ISO9001/ISO14001 /UL/SGS
Price :	Negotiation
Payment Terms :	L/C, T/T, Credit card
Supply Ability :	Satisfy your demand
Delivery Time :	2-15 workding days

Add to Cart

Product Details
Company Profile

Class 180 0.71mm Diameter Enameled Copper Wire Ultra Fine Magnet Wire Polyurethane Coating Enamelled Wire

CLASS 180 0.71MM DIAMETER ENAMELED COPPER WIRE ULTRA FINE MAGNET WIRE POLYURETHANE COATING ENAMELLED WIRE

1) With good solderability, reduces coil production costs due to elimination of mechanical or chemical stripping.

2) Superior ''Q'' characteristic at high frequencies.

3) Excellent film adhension and flexibility.

4) Extremely resistant to a variety of solvents including most varnishes and hardener catalysts.

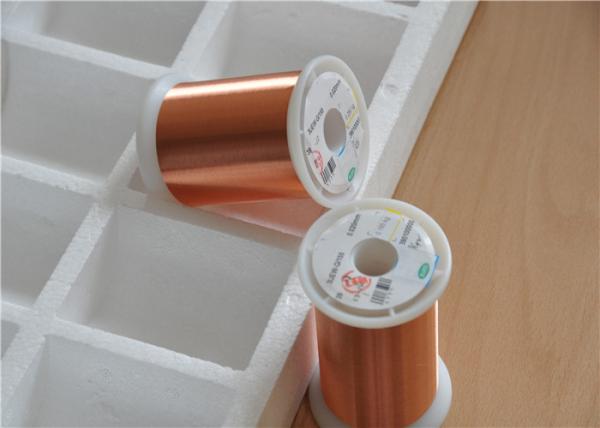

Class 180 0.71mm Diameter Enameled Copper Wire Ultra Fine Magnet Wire Polyurethane Coating Enamelled Wire

Nominal Diameter mm	Tolerance	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage		Elongation	Pin Hole	Electrical Resistance
	mm			≥ V		≥%	≤Default/5m	Ω/km (20℃)
				Mandrel Method	Twisted Method			Min.	Max.
0.012	----	0.013	0.015	50.000	----	5.00	10.00	142.64	157.65
0.013	----	0.015	0.017	70.000	----	5.00	10.00	118.41	133.98
0.014	----	0.016	0.018	70.000	----	5.00	10.00	102.64	120.45
0.015	----	0.017	0.020	80.000	----	5.00	10.00	89.83	104.41
0.016	----	0.018	0.021	90.000	----	5.00	8.00	74.67	97.56
0.017	----	0.019	0.022	90.000	----	5.00	8.00	66.60	85.75
0.018	----	0.020	0.023	100.000	----	5.00	8.00	59.77	75.95
0.019	----	0.021	0.024	100.000	----	5.00	8.00	53.95	67.75
0.020	0.001	0.022	0.024	100.000	----	8.00	8.00	51.83	60.81
0.050	±0.002	0.007	0.062	400.000	1200.00	12.00	5.00	7981.00	9528.00
0.055	±0.002	0.007	0.068	400.000	1200.00	12.00	5.00	6642.00	7815.00
0.060	±0.002	0.007	0.073	500.000	1200.00	14.00	5.00	5614.00	6526.00
0.065	±0.002	0.007	0.078	500.000	1200.00	14.00	5.00	4807.00	5531.00
0.070	±0.002	0.007	0.083	500.000	1200.00	15.00	5.00	4163.00	4747.00
0.075	±0.002	0.007	0.088	550.000	1200.00	15.00	5.00	3640.00	4119.00
0.080	±0.002	0.008	0.094	550.000	1200.00	16.00	5.00	3209.00	3608.00
0.085	±0.002	0.008	0.099	550.000	1200.00	16.00	5.00	2851.00	3187.00
0.090	±0.002	0.010	0.106	650.000	1200.00	16.00	5.00	2550.00	2835.00
0.095	±0.002	0.010	0.111	650.000	1200.00	17.00	5.00	2294.00	2538.00
0.100	±0.002	0.011	0.118	650.000	1200.00	17.00	5.00	2074.00	2286.00
0.110	±0.002	0.011	0.129	----	1300.00	17.00	5.00	1720.00	1882.00
0.120	±0.002	0.011	0.139	----	1500.00	17.00	5.00	1450.00	1577.00
0.130	±0.002	0.011	0.149	----	1500.00	18.00	5.00	1239.00	1340.00
0.140	±0.002	0.011	0.159	----	1600.00	19.00	5.00	1070.00	1153.00
0.150	±0.002	0.011	0.169	----	1700.00	20.00	5.00	934.10	1002.00
0.160	±0.002	0.012	0.180	----	1700.00	21.00	5.00	822.30	879.40
0.170	±0.003	0.013	0.192	----	2000.00	22.00	5.00	721.10	787.10
0.180	±0.003	0.014	0.204	----	2000.00	22.00	5.00	644.40	700.70
0.190	±0.003	0.014	0.214	----	2000.00	23.00	5.00	579.40	627.80
0.200	±0.003	0.014	0.224	----	2000.00	23.00	5.00	523.70	565.70
0.210	±0.003	0.014	0.234	----	2000.00	23.00	5.00	475.70	512.30
0.220	±0.003	0.014	0.245	----	2200.00	23.00	5.00	434.00	466.20
0.230	±0.003	0.016	0.257	----	2200.00	24.00	5.00	397.50	426.00
0.240	±0.003	0.016	0.267	----	2200.00	24.00	5.00	365.50	390.80
0.250	±0.003	0.016	0.277	----	2300.00	24.00	5.00	337.10	359.80
0.260	±0.004	0.018	0.287	----	2300.00	25.00	5.00	309.60	335.00
0.270	±0.004	0.018	0.297	----	2300.00	25.00	5.00	287.40	310.30
0.280	±0.004	0.022	0.313	----	2300.00	25.00	5.00	267.60	288.20
0.290	±0.004	0.022	0.323	----	2500.00	25.00	5.00	249.70	268.40
0.300	±0.004	0.022	0.334	----	2500.00	25.00	5.00	233.50	250.60
0.310	±0.004	0.022	0.344	----	2500.00	25.00	5.00	218.90	234.40
0.315	±0.004	0.022	0.349	----	2500.00	25.00	5.00	212.10	227.00
0.320	±0.004	0.023	0.355	----	2700.00	25.00	5.00	205.60	219.80
0.330	±0.004	0.023	0.365	----	2700.00	25.00	5.00	193.50	206.60
0.350	±0.004	0.023	0.385	----	2700.00	26.00	5.00	172.20	183.40
0.355	±0.004	0.023	0.390	----	2700.00	26.00	5.00	167.40	178.20
0.370	±0.004	0.024	0.406	----	2900.00	26.00	5.00	154.30	163.90
0.380	±0.004	0.024	0.416	----	2900.00	26.00	5.00	146.40	155.30
0.400	±0.004	0.025	0.437	----	2900.00	27.00	5.00	132.20	140.00
0.410	±0.004	0.025	0.447	----	2900.00	27.00	5.00	125.90	133.20
0.440	±0.004	0.025	0.477	----	2900.00	27.00	5.00	109.50	115.50
0.450	±0.004	0.025	0.487	----	2900.00	27.00	5.00	104.70	110.40
0.470	±0.004	0.026	0.508	----	3100.00	27.00	5.00	96.05	101.10
0.500	±0.004	0.026	0.539	----	3100.00	27.00	5.00	84.96	89.23
0.550	±0.004	0.027	0.590	----	3300.00	28.00	5.00	70.31	73.64
0.600	±0.005	0.027	0.640	----	3500.00	28.00	5.00	58.96	62.01
0.650	±0.005	0.027	0.690	----	3500.00	28.00	5.00	50.30	52.77
0.700	±0.005	0.029	0.742	----	3500.00	28.00	5.00	43.42	45.45
0.750	±0.005	0.030	0.794	----	3800.00	28.00	5.00	37.86	39.55
0.800	±0.005	0.032	0.846	----	3800.00	28.00	5.00	33.30	34.73
