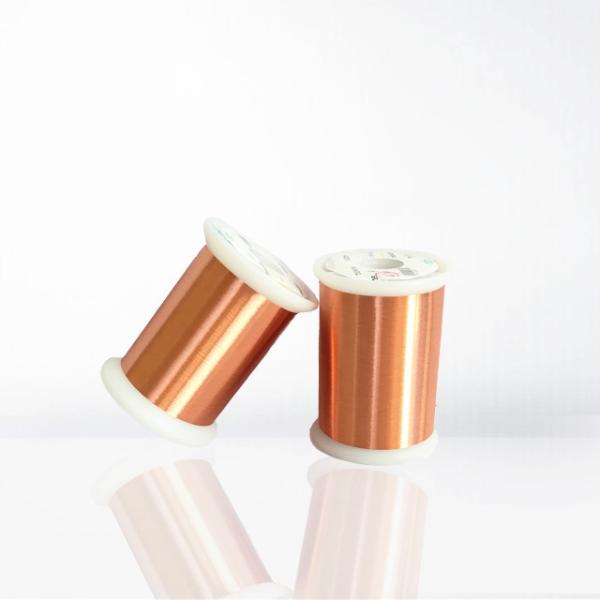

Enameled Copper Wire Round Insulated Copper Magnet Wire Varnished Copper Wire

ENAMELED COPPER WIRE ROUND INSULATED COPPER MAGNET WIRE VARNISHED COPPER WIRE

Enamelled copper wire comes in many different diameters, and with several different kinds of enamel. The diameters vary from less than that of a hair, to about that of a child’s finger. Different standards exist for the wire diameter. A very common one is American Wire Gauge, shortened to AWG, which is used in much of the world. Britain has its own standard, and in many countries the wire is specified simply by its diameter in millimeters.

FEATURES AND BENEFITS

With good solderability, reduces coil production costs due to elimination of mechanical or chemical stripping.
Excellent film adhension and flexibility.
Extremely resistant to a variety of solvents including most varnishes and hardener catalysts.

APPLICATIONS

Magnet wire is used in many products from cell phones, bigger appliances we use in our home. Magnet wire is used to generate electrical fields to change voltage or to generate movement. Examples of magnet wire applications include: ignition coils in automobile indutry, solenoids in house hold appliances, transformers, invertors, inductors and motors in electronic gadgets, chargers, cell phone battery chargers, voice coils in speakers.

SPECIFICATION

Diameter (mm)	Tolerance (mm)	Max Diameter			Min Film Thickness			Min breakdown voltage(20°C)			Conductor resistance ohm/m(20°C)


		Class1	Class2	Class3	Class1	Class2	Class3	Class1	Class2	Class3	Min	Max
0.028	--	0.034	0.038	--	--	--	--	170	325	--	24.99	30.54
0.032	--	0.039	0.043	--	--	--	--	190	375	--	19.13	23.38
0.036	--	0.044	0.049	--	--	--	--	225	425	--	15.16	18.42
0.040	--	0.049	0.054	--	--	--	--	250	475	--	12.28	14.92
0.045	--	0.055	0.061	--	--	--	--	275	550	--	9.705	11.79
0.050	--	0.06	0.066	--	--	--	--	300	600	--	7.922	9.489
0.056	--	0.067	0.074	--	--	--	--	325	650	--	6.316	7.565
0.063	0.002	0.076	0.083	--	0.007	0.012	0.018	375	700	--	5.045	5.922
0.071	0.003	0.084	0.091	0.097	0.007	0.012	0.018	425	700	--	3.941	4.747
0.080	0.003	0.094	0.101	0.108	0.007	0.014	0.020	425	850	1200	3.133	3.703
0.090	0.003	0.105	0.113	0.120	0.008	0.015	0.022	500	900	1300	2.495	2.900
0.100	0.003	0.117	0.125	0.132	0.008	0.016	0.023	500	950	1400	2.034	2.333
0.112	0.003	0.13	0.139	0.147	0.009	0.017	0.026	1300	2700	3900	1.632	1.848
0.125	0.003	0.144	0.154	0.163	0.010	0.019	0.028	1500	2800	4100	1.317	1.475
0.140	0.003	0.16	0.171	0.181	0.011	0.021	0.030	1600	3000	4200	1.055	1.170
0.160	0.003	0.182	0.194	0.205	0.012	0.023	0.033	1700	3200	4400	0.8122	0.8906
0.180	0.003	0.204	0.217	0.229	0.013	0.025	0.036	1700	3300	4700	0.6444	0.7007
0.200	0.003	0.226	0.239	0.252	0.014	0.027	0.039	1800	3500	5100	0.5237	0.5657
0.224	0.003	0.252	0.266	0.280	0.015	0.029	0.043	1900	3700	5200	0.4188	0.4495
0.250	0.004	0.281	0.297	0.312	0.017	0.032	0.048	2100	3900	5500	0.3345	0.3628
0.280	0.004	0.312	0.329	0.345	0.018	0.033	0.050	2200	4000	5800	0.2676	0.2882
0.315	0.004	0.349	0.367	0.384	0.019	0.035	0.053	2200	4100	6100	0.2121	0.227
0.355	0.004	0.392	0.411	0.428	0.02	0.038	0.057	2300	4300	6400	0.1674	0.1782
0.400	0.005	0.439	0.459	0.478	0.021	0.040	0.060	2300	4400	6600	0.1316	0.1407
0.450	0.005	0.491	0.513	0.533	0.022	0.042	0.064	2300	4400	6800	0.1042	0.1109
0.500	0.005	0.544	0.566	0.587	0.024	0.045	0.067	2400	4600	7000	0.08462	0.08959
0.560	0.006	0.606	0.630	0.653	0.025	0.047	0.071	2500	4600	7100	0.06736	0.07153
0.560	0.006	0.606	0.630	0.653	0.025	0.047	0.071	2500	4600	7100	0.06736	0.07153
0.630	0.006	0.679	0.704	0.728	0.027	0.050	0.075	2600	4800	7100	0.05335	0.05638
0.710	0.007	0.762	0.789	0.814	0.028	0.053	0.080	2600	4800	7200	0.04198	0.04442
0.800	0.008	0.855	0.884	0.911	0.03	0.056	0.085	2600	4900	7400	0.03305	0.035
0.900	0.009	0.959	0.989	1.018	0.032	0.060	0.090	2700	5000	7600	0.02612	0.02765
1.000	0.010	1.062	1.094	1.124	0.034	0.063	0.095	2700	5000	7600	0.02116	0.0224
1.120	0.011	1.184	1.217	1.248	0.034	0.065	0.098	2700	5000	7600	0.01687	0.01785
1.250	0.013	1.316	1.349	1.381	0.035	0.067	0.100	2700	5000	7600	0.01353	0.01435
1.400	0.014	1.468	1.502	1.535	0.036	0.069	0.103	2700	5000	7600	0.01079	0.01143
1.600	0.016	1.67	1.706	1.740	0.038	0.071	0.107	2700	5000	7600	0.008264	0.008749
1.800	0.018	1.872	1.909	1.944	0.039	0.073	0.110	2700	5000	7600	0.006529	0.006913
