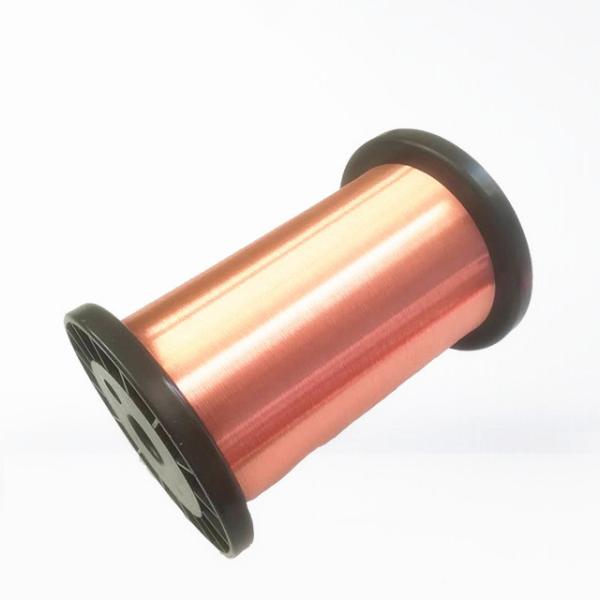

    0.020 - 0.50mm Compacted Copper Litz Wire Magnet Wire Waterproof For Motor

    0.020 - 0.50MM COMPACTED LITZ MAGNET WIRE WATERPROOF FOR MOTOR

    Litz wire conductors are beneficial for reducing A.C. losses in high frequency windings. The first consideration in any design regarding Litz wire is the operating frequency. The operating frequency not only influences the actual construction details of the copper magnet wire, but is also used to determine the individual strand size of the Litz wire construction. All Litz constructions will exhibit some skin effect due to the limitations of stranding. Higher frequency ranges require more strands of a finer gauge size than Litz wires of equal cross sectional area but composed of fewer and larger strands.The enamels commonly used for insulating individual strands are Polyurethane and Polyurethane with a Nylon topcoat because of the low electrical losses and ease of solderability. Other insulations can also be used. In many cases, Litz is insulated with an overall single or double wrap or serving, of a textile, but are also available unserved.

    FEATURES
    • Exlellent insulation strength.

    • Good heat resistance and good waterproof performance.

    • Easy to solder and less residue, solder condition: 380±5℃

    • Flexibilty can be customs made for different requirement.

    • High resistance to radiation ( PI tape)

    APPLICATION

    Transformers requires for high interlayer discharge voltage.

    Motor, transformer and meter with requirements for high resistance to temperature and radiation.

    0.020 - 0.50mm Compacted Copper Litz Wire Magnet Wire Waterproof For Motor


    Equivalent

    AWG

    Circular

    Mil Area

    Number of

    Wires

    AWG of

    Wire

    Film

    Coating1

    Nominal

    Width

    Nominal

    Thickness

    Nominal

    LBS/1000 FT

    Construction

    RECOMMENDED OPERATING FREQUENCY - 1 KHZ TO 15 KHZ

    10

    9600

    96

    30

    H

    .363

    .073

    33

    24-4-30

    9

    12000

    120

    30

    H

    .435

    .073

    41

    24-5-30

    8

    16800

    168

    30

    H

    .508

    .073

    58

    24-7-30

    6

    24000

    240

    30

    H

    .580

    .109

    83

    24-10-30

    5

    36000

    360

    30

    H

    .725

    .109

    124

    24-15-30

    5

    33600

    336

    30

    H

    1.600

    .073

    121

    48-7-30

    4

    48000

    480

    30

    H

    .870

    .145

    173

    24-20-30

    3

    64800

    648

    30

    H

    1.090

    .145

    227

    24-27-30

    2

    76800

    768

    30

    H

    1.160

    .145

    279

    24-32-30

    1/0

    105600

    1056

    30

    H

    1.450

    .145

    373

    24-44-30

    2/0

    153600

    1536

    30

    H

    2.320

    .181

    526

    48-32-30

    3/0

    168000

    1680

    30

    H

    2.610

    .181

    569

    48-35-30

    4/0

    249600

    2496

    30

    H

    2.900

    .181

    824

    48-52-30

    RECOMMENDED OPERATING FREQUENCY - 15 KHZ TO 50 KHZ

    22

    800

    32

    36

    H

    .075

    .038

    2.79

    16-2-36

    18

    1600

    64

    36

    H

    .113

    .038

    5.41

    16-4-36

    16

    2400

    96

    36

    H

    .188

    .038

    8.50

    24-4-36

    14

    4200

    168

    36

    H

    .263

    .038

    15.00

    24-7-36

    12

    7200

    288

    36

    H

    .450

    .038

    26.00

    48-6-36

    10

    9600

    384

    36

    H

    .450

    .076

    33.00

    24-16-36

    9

    13200

    528

    36

    H

    .750

    .076

    46.00

    48-11-36

    8

    18000

    720

    36

    H

    .750

    .075

    63.00

    48-15-36

    6

    26400

    1056

    36

    H

    1.050

    .075

    96.00

    48-22-36

    4

    40200

    1608

    36

    H

    .900

    .113

    143.00

    24-67-36

    2

    72000

    2880

    36

    H

    1.500

    .113

    265.00

    48-60-36

    1/0

    100800

    4032

    36

    H

    1.950

    .150

    376.00

    48-84-36
