    Soldering Self Bonding Enameled Copper Wire Electric Motor Winding Materials

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.14mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

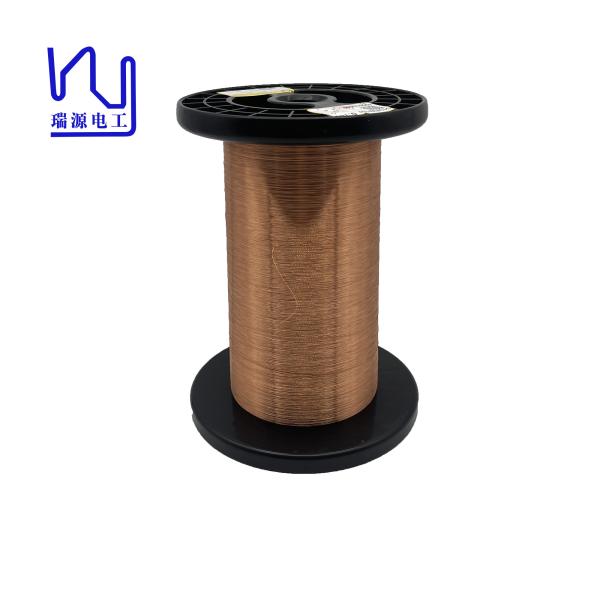

    Soldering Self Bonding Enameled Copper Wire Electric Motor Winding Materials

    Electric Motor Winding Materials Enameled Copper Wire


    Application fields: Enamelled copper wire has a wide range of applications. In the electronics manufacturing industry, enamelled copper wires are usually used in important parts such as the connection of circuit boards and the winding of transmitting equipment. In the fields of aviation, aerospace, nuclear energy and other fields, enamelled copper wire is also an indispensable key component.


    ItemRequirementsTest Data
    Sample 1Sample 2Sample 3
    Conductor diameter(mm)0.140±0.004mm0.1400.1400.140
    Coating thickness≥ 0.011mm0.01500.01600.0150
    Overall dimention(mm)≤0.159mm0.15500.15600.1550
    DC Resistance≤1.153Ω/m1.0851.0731.103
    Elongation≥19%242524
    Breakdown Voltage≥1600V316332153163
    Pinhole≤5(faults)/5m000
    Cut-through200℃ 2min No breakdownok
    Heat Shock175±5℃/30min No cracksok
    Solderability390± 5℃ 2 Sec No slagsok

    Name

    Electric Motor Winding Materials Enameled Copper Wire

    Key word

    Enameled copper wire

    Insulation

    Enamel

    Thermal rating

    155/180

    Diameter

    0.4mm

    Type

    Electric Motor Winding Materials Enameled Copper Wire

    Soldering Self Bonding Enameled Copper Wire Electric Motor Winding Materials

    Soldering Self Bonding Enameled Copper Wire Electric Motor Winding Materials

    Soldering Self Bonding Enameled Copper Wire Electric Motor Winding Materials
