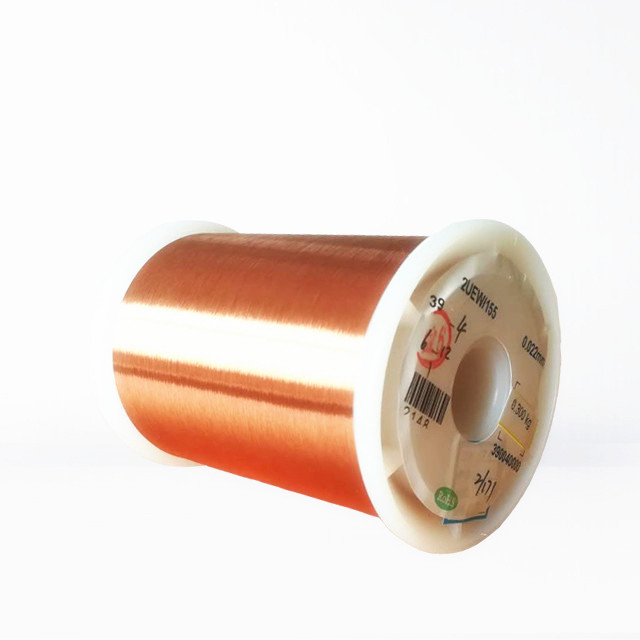

0.012-0.8mm Magnet Wire Enameled Copper Wire For Motor Winding

Ask Lasest Price
Brand Name :	Rvyuan
Certification :	IEC/NEMA/JIS/RoHS/ISO
Price :	Negotiation
Payment Terms :	Negotiation
Delivery Time :	2-15 workding days
Supply Ability :	Satisfy your demand
Model Number :	0.012-0.8mm

Add to Cart

Product Details
Company Profile

0.012-0.8mm Magnet Wire Enameled Copper Wire For Motor Winding

0.012-0.8MM ENAMELED COPPER WIRE MAGNET WIRE FOR MOTOR WINDING

Enameled wire or magnet wire contains the following elements:

Conductor type: The conductor is the basic material of the enameled wire. Commonly used materials for conductors are copper, aluminum and Copper-silver alloy, copper-tin alloy, copper-nickel alloy, copper-zinc alloy and other alloy materials. Usually the resistance in an electronic component is determined by the conductor. The cross-sectional area and length of the conductor affect the resistance.
The type of insulating film: The insulating film is divided into single film and heavy film. Single film includes UEW, PEW, EIWHE AIW etc. Heavy film refers to an additional coating of nylon or self-adhesive paint on a single film.
The thickness of the coating is the thickness of the insulating paint on the conductor. The coating thickness is classified and defined by NEMA, MW1000, JISC3202, and IEC60317 standards. The thickness of the coating determines the pressure level of the enameled wire.
Thermal rating refers to the heat resistance level of the enameled wire, showing the temperature index, softening breakdown and thermal shock, etc. It is defined by the NEMA, MW1000, JISC3202, and IEC60317 standards. Thermal rating are 130, 155, 180, 200, 220, 240.

FEATURES AND BENEFITS:

Can be soldered without removal of coating,and easy to be dyed.
Small dielectric loss under high frequency apparatus and good pinhole test performace.
Apply to replays,micro-motors,transfomers,instrumentation and various kinds of electronic components and with for coils

APPLICATIONS:

Rotating machines
Power and Distribution Transformers
Alternators
Hermetic motors (for refrigeration and air conditioning equipment)
Control and Power supply Transformers

0.012-0.8mm Magnet Wire Enameled Copper Wire For Motor Winding

SPOOL SIZE

BICONICAL TYPE

CYLINDRICAL TYPE

0.012-0.8mm Magnet Wire Enameled Copper Wire For Motor Winding

TAPERED TYPE

SPECIFICATION:

Diameter (mm)	Tolerance (mm)	Max Diameter			Min Film Thickness			Min breakdown voltage(20°C)			Conductor resistance ohm/m(20°C)


		Class1	Class2	Class3	Class1	Class2	Class3	Class1	Class2	Class3	Min	Max
0.028	--	0.034	0.038	--	--	--	--	170	325	--	24.99	30.54
0.032	--	0.039	0.043	--	--	--	--	190	375	--	19.13	23.38
0.036	--	0.044	0.049	--	--	--	--	225	425	--	15.16	18.42
0.040	--	0.049	0.054	--	--	--	--	250	475	--	12.28	14.92
0.045	--	0.055	0.061	--	--	--	--	275	550	--	9.705	11.79
0.050	--	0.06	0.066	--	--	--	--	300	600	--	7.922	9.489
0.056	--	0.067	0.074	--	--	--	--	325	650	--	6.316	7.565
0.063	0.002	0.076	0.083	--	0.007	0.012	0.018	375	700	--	5.045	5.922
0.071	0.003	0.084	0.091	0.097	0.007	0.012	0.018	425	700	--	3.941	4.747
0.080	0.003	0.094	0.101	0.108	0.007	0.014	0.020	425	850	1200	3.133	3.703
0.090	0.003	0.105	0.113	0.120	0.008	0.015	0.022	500	900	1300	2.495	2.900
0.100	0.003	0.117	0.125	0.132	0.008	0.016	0.023	500	950	1400	2.034	2.333
0.112	0.003	0.13	0.139	0.147	0.009	0.017	0.026	1300	2700	3900	1.632	1.848
0.125	0.003	0.144	0.154	0.163	0.010	0.019	0.028	1500	2800	4100	1.317	1.475
0.140	0.003	0.16	0.171	0.181	0.011	0.021	0.030	1600	3000	4200	1.055	1.170
0.160	0.003	0.182	0.194	0.205	0.012	0.023	0.033	1700	3200	4400	0.8122	0.8906
0.180	0.003	0.204	0.217	0.229	0.013	0.025	0.036	1700	3300	4700	0.6444	0.7007
0.200	0.003	0.226	0.239	0.252	0.014	0.027	0.039	1800	3500	5100	0.5237	0.5657
0.224	0.003	0.252	0.266	0.280	0.015	0.029	0.043	1900	3700	5200	0.4188	0.4495
0.250	0.004	0.281	0.297	0.312	0.017	0.032	0.048	2100	3900	5500	0.3345	0.3628
0.280	0.004	0.312	0.329	0.345	0.018	0.033	0.050	2200	4000	5800	0.2676	0.2882
0.315	0.004	0.349	0.367	0.384	0.019	0.035	0.053	2200	4100	6100	0.2121	0.227
0.355	0.004	0.392	0.411	0.428	0.02	0.038	0.057	2300	4300	6400	0.1674	0.1782
0.400	0.005	0.439	0.459	0.478	0.021	0.040	0.060	2300	4400	6600	0.1316	0.1407
0.450	0.005	0.491	0.513	0.533	0.022	0.042	0.064	2300	4400	6800	0.1042	0.1109
0.500	0.005	0.544	0.566	0.587	0.024	0.045	0.067	2400	4600	7000	0.08462	0.08959
