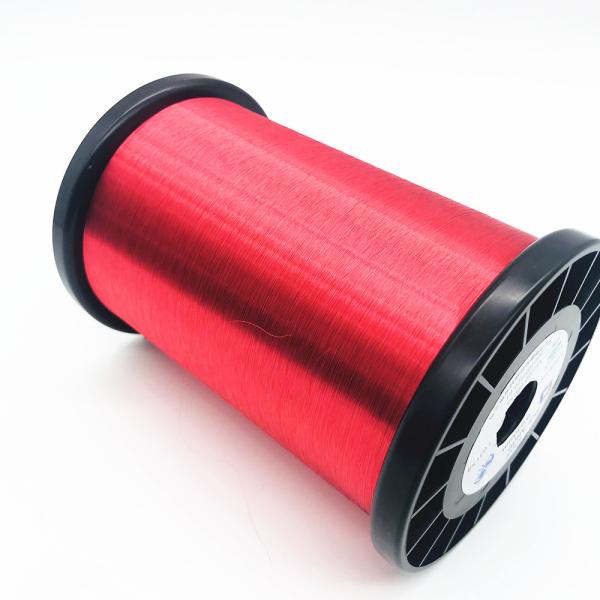

    46 Awg Class 155 Enameled Copper Winding Wire Colored Self Adhesive

    Ask Lasest Price
    Brand Name : Rvyuan
    Model Number : UEW
    Certification : ISO9001/ISO14001/UL/SGS
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : Satisfy your demand
    Delivery Time : 2-15 workding days
    • Product Details
    • Company Profile

    46 Awg Class 155 Enameled Copper Winding Wire Colored Self Adhesive

    46 AWG class 155 colored self adhesive enameled copper winding wire


    Self-adhesive enameled copper wires almost all adopt a composite layer structure, that is, outside the general enameled wire (baseline), self-adhesive paint (self-adhesive layer) is applied.


    Heat-resistant composite coating self-adhesive enameled wire and its use characteristics Self-adhesive enameled wire refers to the coil wound with it, which can be heated by baking or electric heating to make the outer coating bond layer interact, and the coil will harden and form by itself after cooling. An enameled wire.


    Name

    46 AWG class 155 colored self adhesive enameled copper winding wire

    Key word

    Enameled copper wire

    Insulation

    Polyurethane

    Thermal rating

    155degree

    Diameter of the enameled copper wire

    0.04mm

    Key word

    46 AWG class 155 colored self adhesive enameled copper winding wire

    Characteristics
    Technical requests
    Test Results
    Sample 1
    Sample 2
    Surface
    Good
    OK
    OK
    Bare Wire Diameter
    0.040±
    0.001
    0.040
    0.040
    0.001
    Insulation Film Thickness
    Min. 0.002 mm
    0.003
    0.003
    Bonding Film Thickness
    Min. 0.002mm
    0.003
    0.003
    Overall Diameter
    ≤ 0.054 mm
    0.0534
    0.0534
    Continuity of Covering
    Max. 3 pcs
    Max. 0
    Max. 0
    Elongation
    ≥ 14 %
    21
    22
    Breakdown Voltage
    Min. 350 V
    Min. 1502 V
    Min. 1502 V
    Flexibility
    /
    /
    /
    Adherence
    No crack
    Good
    Good
    Cut through
    Continur 2 times pass
    230 ℃/Good
    230 ℃/Good
    Solder Test
    Max. 2
    Max. 1.5
    Max. 1.5
    Bonding Strength
    Min. 5
    13
    13
    Electrical Resistance(20℃)
    13.83-14.43 Ω/m
    14.23
    14.24

    Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
