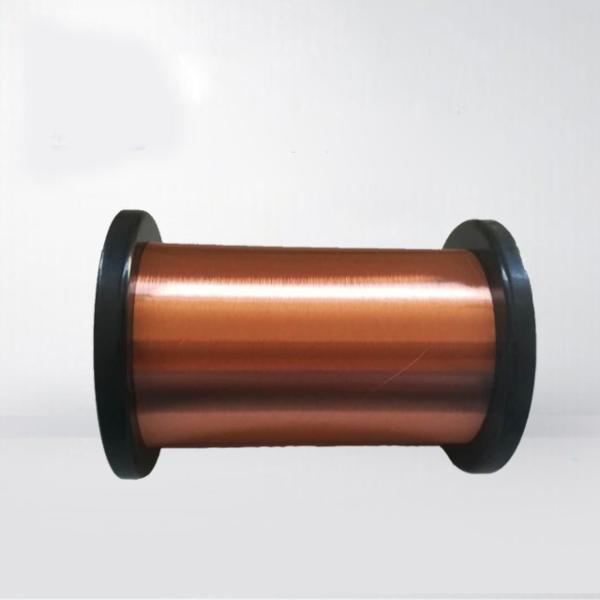

Super Fine Enamel Coated Copper Wire 0.35mm 2uew 155 / 180

Ask Lasest Price
Brand Name :	Ruiyuan
Model Number :	0.35mm
Certification :	UL/ISO9001/ISO14001/RoHS/Reach
Price :	Negotiation
Payment Terms :	Negotiation
Supply Ability :	10Ton/week
Delivery Time :	2-15 days

Add to Cart

Product Details
Company Profile

Super Fine Enamel Coated Copper Wire 0.35mm 2uew 155 / 180

Super Fine 0.35mm 2UEW 155 / 180 Enameled Copper Wire

Main features:
1. With good solvent resistance, dyes can be added to change the
color of the paint film for easy identification. Currently
polyurethane enameled wire, we can produce red, blue, green, black
and so on.
2. Our advantage: strive to achieve "zero" pinholes after
stretching. Excessive pinholes are the main cause of short circuits
in electronic devices. The goal of our product is to strive for
"zero" pinholes after stretching by 15%.

Test Items
Requirements
Test Data
Result
1st Sample
2nd Sample
3rd Sample
Appearance
Smooth & Clean
OK
OK
OK
OK
Conductor Diameter
0.35mm ±
0.004mm
0.351
0.351
0.351
OK
0.004mm
Thickness of Insulation
≥0.023 mm
0.031
0.033
0.032
OK
Overall Diameter
≤ 0.387 mm
0.382
0.384
0.383
OK
DC Resistance
≤ 0.1834Ω/m
0.1798
0.1812
0.1806
OK
Elongation
≥23%
28
30
29
OK
Breakdown Voltage
≥2700V
5199
5543
5365
OK
Pin Hole
≤ 5 faults/5m
0
0
0
OK
Adherence
No cracks visible
OK
OK
OK
OK
Cut-through
200℃ 2min No breakdown
OK
OK
OK
OK
Heat Shock
175±5℃/30min No cracks
OK
OK
OK
OK
Solderability
390± 5℃ 2 Sec No slags
OK
OK
OK
OK
Insulation Continuity
≤ 25 faults/30m
0
0
0

Name	Super Fine 0.35mm 2UEW 155 / 180 Enameled Copper Wire
Key word	Enameled copper wire
Insulationh	Enamel
Thermal rating	155/180
Diameter of the enameled copper wire	0.35mm
Type	Super Fine 0.35mm 2UEW 155 / 180 Enameled Copper Wire

Super Fine Enamel Coated Copper Wire 0.35mm 2uew 155 / 180

Product Tags:

super fine enamel coated copper wire

0.35mm enamel coated copper wire

ultra fine copper magnet wire

Super Fine Enamel Coated Copper Wire 0.35mm 2uew 155 / 180

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Tianjin Ruiyuan Electric Material Co,.Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Explore more Ultra Fine Enameled Copper Wire products from this supplier

Find Similar Products By Category:

Electrical Equipment & Supplies > Wires, Cables & Cable Assemblies

Hot Searches:

Test Items	Requirements		Test Data			Result
Test Items	Requirements		1st Sample	2nd Sample	3rd Sample	Result
Appearance	Smooth & Clean		OK	OK	OK	OK
Conductor Diameter	0.35mm ±	0.004mm	0.351	0.351	0.351	OK
Conductor Diameter	0.35mm ±	0.004mm	0.351	0.351	0.351	OK
Thickness of Insulation	≥0.023 mm		0.031	0.033	0.032	OK
Overall Diameter	≤ 0.387 mm		0.382	0.384	0.383	OK
DC Resistance	≤ 0.1834Ω/m		0.1798	0.1812	0.1806	OK
Elongation	≥23%		28	30	29	OK
Breakdown Voltage	≥2700V		5199	5543	5365	OK
Pin Hole	≤ 5 faults/5m		0	0	0	OK
Adherence	No cracks visible		OK	OK	OK	OK
Cut-through	200℃ 2min No breakdown		OK	OK	OK	OK
Heat Shock	175±5℃/30min No cracks		OK	OK	OK	OK
Solderability	390± 5℃ 2 Sec No slags		OK	OK	OK	OK
Insulation Continuity	≤ 25 faults/30m		0	0	0
