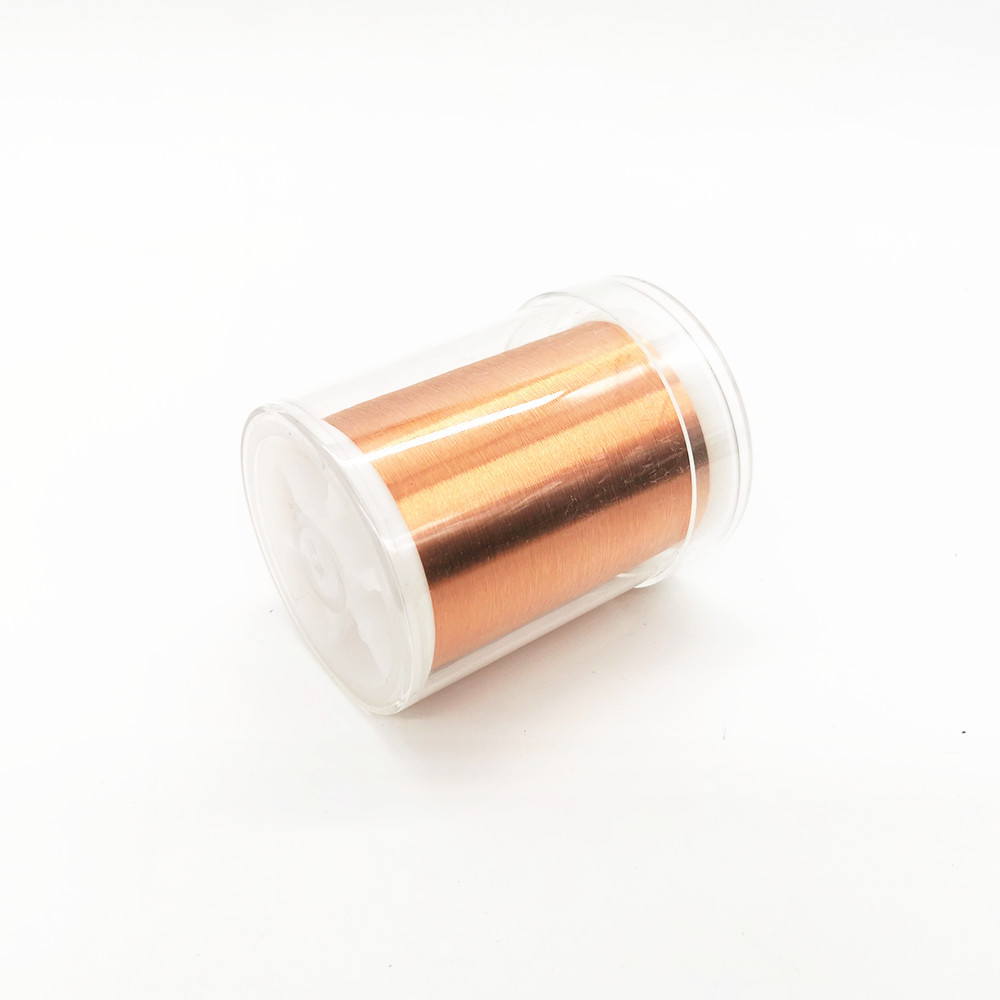

    UEW 0.016mm Self Adhesive Watch Copper Magnet Wire

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.016mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : Negotiation
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    UEW 0.016mm Self Adhesive Watch Copper Magnet Wire

    UEW 0.016mm Self Adhesive Magent Wire Ultra Fine Enameled Copper Wire For Watch


    We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of marketexperience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm,and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with ashare of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materialsWe surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...


    UEW 0.016mm Self Adhesive Watch Copper Magnet Wire



    Characteristics
    Technical requests
    Test ResultsConclusion
    Sample 1Sample 2Sample 3
    1SurfaceGoodOKOKOKOK
    2
    Bare Wire Diameter
    0.016±
    0.001

    0.016

    0.016
    0.016
    OK
    0.001
    3Overall diameter≤ 0.020mm0.0150.01950.01958OK
    4Insulation thicknessMin0.0010.0020.0020.002OK
    5Self-bonding layer thicknessMin0.0010.00150.00150.0015OK
    6Elongation≥ 6 %121212OK
    7Breakdown Voltage≥ 120V248260270OK
    8Pinhole Test≤ 5 hole/5m000OK
    9Enamel Continuity(50v/30m)≤ 60 hole/5m000OK
    10Bonding Strength≥5 g10109OK
    11Electrical Resistance84.29-91.37Ω/m86.386.386.3OK
