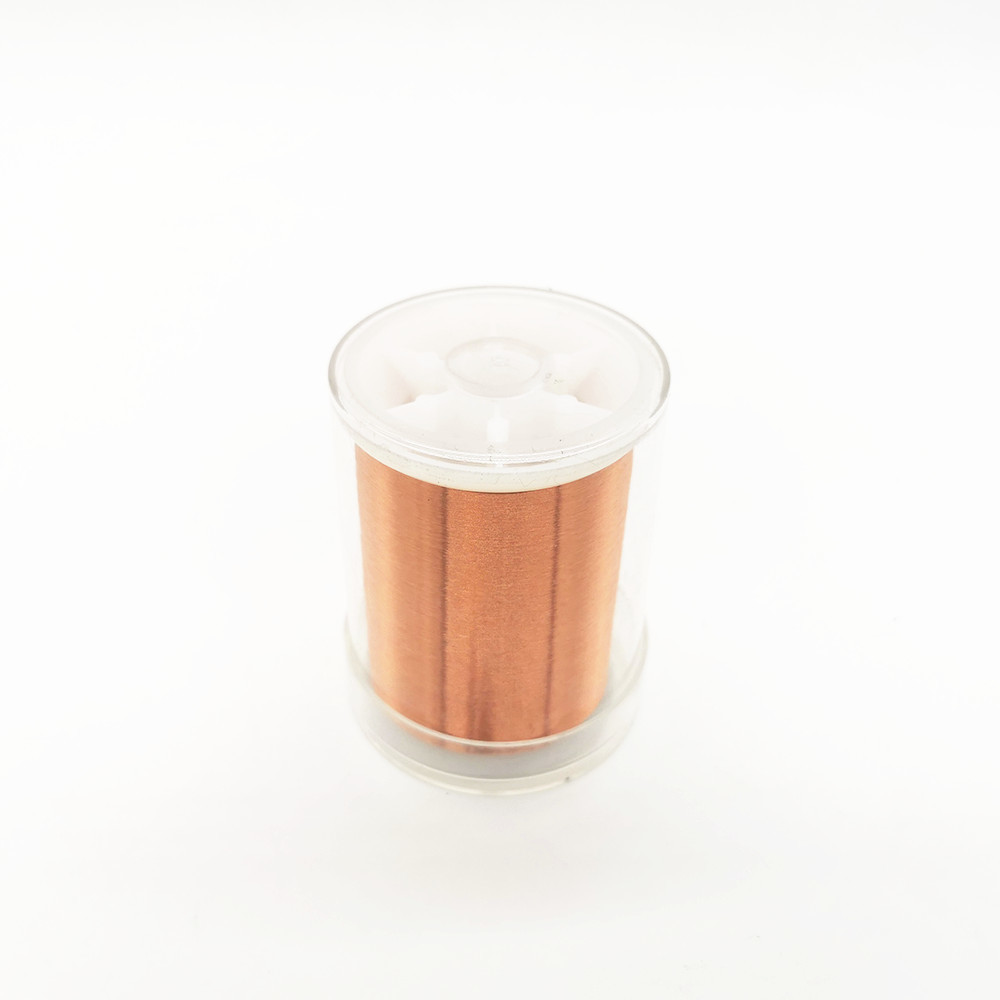

    3UEW / 155 0.011mm Magnet Earphone Ultra Fine Enameled Copper Wire

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.011mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : Negotiation
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    3UEW / 155 0.011mm Magnet Earphone Ultra Fine Enameled Copper Wire

    3UEW / 155 0.011mm Magnet Wire Ultra Fine Enameled Copper Wire For Earphone / Watch

    We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of marketexperience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm,and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with ashare of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materialsWe surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...

    3UEW / 155 0.011mm Magnet Earphone Ultra Fine Enameled Copper Wire


    Test Item

    Unit

    Standard Value

    Reality Value

    MinAveMax

    Conductor dimensions

    mm0.011±0.0010.0110.0110.011

    (Basecoat dimensions) Overall dimensions

    mm

    Max. 0.0135


    0.0134


    0.0134


    0.0135

    Insulation Film Thickness

    mmMin0.0020.00240.00240.0025

    Bonding Film Thickness

    mm

    /


    /


    /


    /

    Continuity of covering

    pcs.Max.60Max.0

    Flexibility

    //

    Adherence

    No crakegood

    Breakdown Voltage

    VMin.250Min.483

    Resistance to Softening (Cut Through)


    Continue 2 times pass


    170℃/Good

    (375℃±5℃)Solder test


    s


    Max. 2

    Max.1.5

    Bonding Strength

    g

    //

    Electrical Resistance

    Ω /m

    150—157.6154.01154.98155.10

    Elongation

    %Min. 3101011

    Breaking Load

    N

    Min///

    Surface appearance

    Smooth coloury

    Good
    Delivery Reels ount:1

    pcs.


    Test Result: OK


    Synthetic Evaluation : OK
