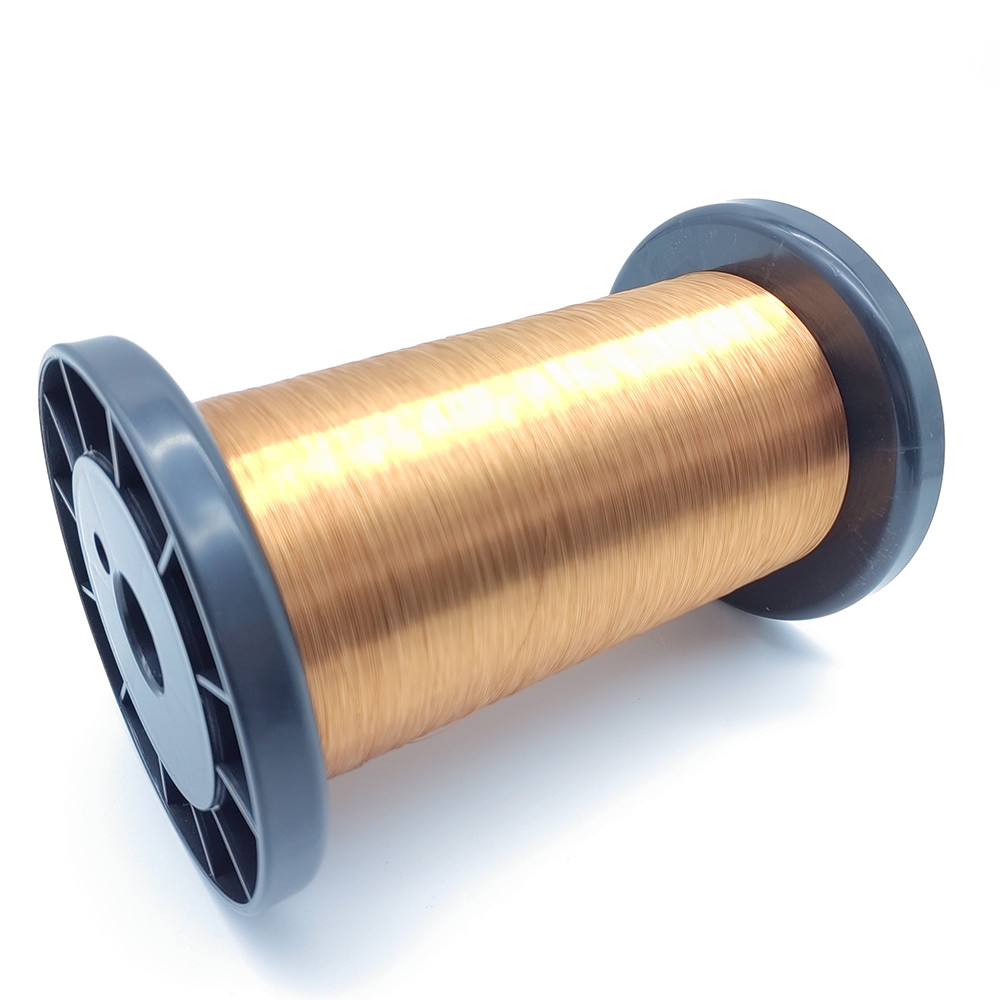

    2uew 0.06mm Solderable Enameled Magnet Wire Ultra Fine

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.06mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    2uew 0.06mm Solderable Enameled Magnet Wire Ultra Fine

    2UEW 0.06mm Solderable Magnet Wire Ultra Fine Enameled Copper Wire


    Features:


    1.Solid enough, the wire is not easy to be broken
    2.Insulation thickness can be customized
    3.Wire can reach almost 0 pinhole
    4.High consistency
    5.The wire is even and tidy, which is convenient for users to wind
    6. Low temperature soldering
    7. Bonding method options: Hot
    air,Solvent and others


    CharacteristicsTechnical requestsTest resultResult
    SurfaceGoodOKOKOK
    Coating Thickness≥ 0.008 mm0.01000.01200.0110OK
    Overall Diameter≤ 0.074 mm0.07000.07200.0710OK
    Conductor Resistance≤6.415Ω/m6.0096.0816.013OK
    Elongation≥ 14 %21.722.621.9OK
    Breakdown Voltage≥500 V176919611886OK
    Pinhole Test≤ 5 holes/5m00
    Continuity≤ 15 hole/30m000OK
    Test ItemsTechnical RequestsResults
    AdhesiveCoating layer is goodOK
    Solder Ability390℃ ±5℃ SmoothOK
    Heat Shock175±5℃/30min no crackOK
