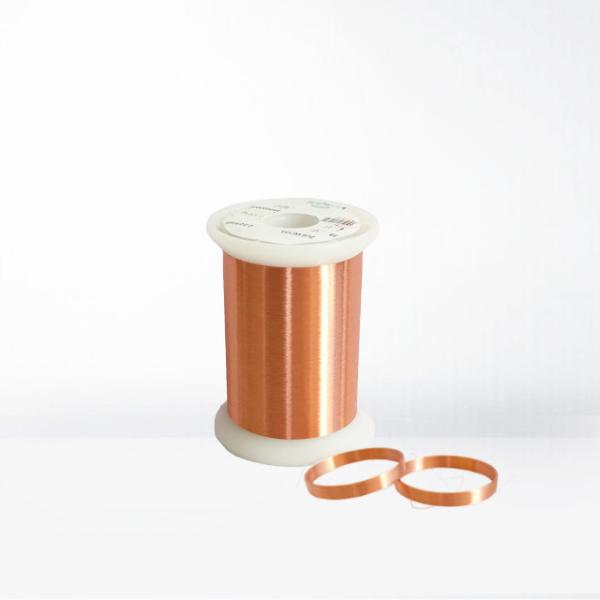

0.070MM COPPER MAGNET WIRE SINGLE STRADN UL CERTIFICATED ENAMELED WIRE SOLDERABILITY
Enameled copper wire is a copper coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.Super Enameled Copper Wire, for Motor Winding. This Super Enamelled Copper Wire is suitable for use in crafts or for electrical grounding. This single-strand wire is annealed for improved ductility.
FEATURES
-
Solid enough, the wire is not easy to be broken
-
Insulation thickness can be customized
-
Wire can reach almost 0 pinhole
-
High consistency
-
The wire is even and tidy, which is convenient for users to wind
-
Low temperature soldering
-
Bonding method options: Hot air,Solvent and other
-
Touch screen
-
Watch coil
-
Voice coil
-
Transformer
-
Intelligent Cloth
-
Micro Motor
-
Relay
SPECIFICATION
| Nominal Diameter mm | Tolerance | Min. Increase of Diameter | Max. Overall Diameter | Breakdown Voltage | | Elongation | Pin Hole | Electrical Resistance | |
| | mm | | | ≥ V | | ≥% | ≤Default/5m | Ω/km (20℃) | |
| | | | | Mandrel Method | Twisted Method | | | Min. | Max. |
| 0.012 | ---- | 0.013 | 0.015 | 50.000 | ---- | 5.00 | 10.00 | 142.64 | 157.65 |
| 0.013 | ---- | 0.015 | 0.017 | 70.000 | ---- | 5.00 | 10.00 | 118.41 | 133.98 |
| 0.014 | ---- | 0.016 | 0.018 | 70.000 | ---- | 5.00 | 10.00 | 102.64 | 120.45 |
| 0.015 | ---- | 0.017 | 0.020 | 80.000 | ---- | 5.00 | 10.00 | 89.83 | 104.41 |
| 0.016 | ---- | 0.018 | 0.021 | 90.000 | ---- | 5.00 | 8.00 | 74.67 | 97.56 |
| 0.017 | ---- | 0.019 | 0.022 | 90.000 | ---- | 5.00 | 8.00 | 66.60 | 85.75 |
| 0.018 | ---- | 0.020 | 0.023 | 100.000 | ---- | 5.00 | 8.00 | 59.77 | 75.95 |
| 0.019 | ---- | 0.021 | 0.024 | 100.000 | ---- | 5.00 | 8.00 | 53.95 | 67.75 |
| 0.020 | 0.001 | 0.022 | 0.024 | 100.000 | ---- | 8.00 | 8.00 | 51.83 | 60.81 |
| 0.050 | ±0.002 | 0.007 | 0.062 | 400.000 | 1200.00 | 12.00 | 5.00 | 7981.00 | 9528.00 |
| 0.055 | ±0.002 | 0.007 | 0.068 | 400.000 | 1200.00 | 12.00 | 5.00 | 6642.00 | 7815.00 |
| 0.060 | ±0.002 | 0.007 | 0.073 | 500.000 | 1200.00 | 14.00 | 5.00 | 5614.00 | 6526.00 |
| 0.065 | ±0.002 | 0.007 | 0.078 | 500.000 | 1200.00 | 14.00 | 5.00 | 4807.00 | 5531.00 |
| 0.070 | ±0.002 | 0.007 | 0.083 | 500.000 | 1200.00 | 15.00 | 5.00 | 4163.00 | 4747.00 |
| 0.075 | ±0.002 | 0.007 | 0.088 | 550.000 | 1200.00 | 15.00 | 5.00 | 3640.00 | 4119.00 |
| 0.080 | ±0.002 | 0.008 | 0.094 | 550.000 | 1200.00 | 16.00 | 5.00 | 3209.00 | 3608.00 |
| 0.085 | ±0.002 | 0.008 | 0.099 | 550.000 | 1200.00 | 16.00 | 5.00 | 2851.00 | 3187.00 |
| 0.090 | ±0.002 | 0.010 | 0.106 | 650.000 | 1200.00 | 16.00 | 5.00 | 2550.00 | 2835.00 |
| 0.095 | ±0.002 | 0.010 | 0.111 | 650.000 | 1200.00 | 17.00 | 5.00 | 2294.00 | 2538.00 |
| 0.100 | ±0.002 | 0.011 | 0.118 | 650.000 | 1200.00 | 17.00 | 5.00 | 2074.00 | 2286.00 |
| 0.110 | ±0.002 | 0.011 | 0.129 | ---- | 1300.00 | 17.00 | 5.00 | 1720.00 | 1882.00 |
| 0.120 | ±0.002 | 0.011 | 0.139 | ---- | 1500.00 | 17.00 | 5.00 | 1450.00 | 1577.00 |
| 0.130 | ±0.002 | 0.011 | 0.149 | ---- | 1500.00 | 18.00 | 5.00 | 1239.00 | 1340.00 |
| 0.140 | ±0.002 | 0.011 | 0.159 | ---- | 1600.00 | 19.00 | 5.00 | 1070.00 | 1153.00 |
| 0.150 | ±0.002 | 0.011 | 0.169 | ---- | 1700.00 | 20.00 | 5.00 | 934.10 | 1002.00 |
| 0.160 | ±0.002 | 0.012 | 0.180 | ---- | 1700.00 | 21.00 | 5.00 | 822.30 | 879.40 |
| 0.170 | ±0.003 | 0.013 | 0.192 | ---- | 2000.00 | 22.00 | 5.00 | 721.10 | 787.10 |
| 0.180 | ±0.003 | 0.014 | 0.204 | ---- | 2000.00 | 22.00 | 5.00 | 644.40 | 700.70 |
| 0.190 | ±0.003 | 0.014 | 0.214 | ---- | 2000.00 | 23.00 | 5.00 | 579.40 | 627.80 |
| 0.200 | ±0.003 | 0.014 | 0.224 | ---- | 2000.00 | 23.00 | 5.00 | 523.70 | 565.70 |
| 0.210 | ±0.003 | 0.014 | 0.234 | ---- | 2000.00 | 23.00 | 5.00 | 475.70 | 512.30 |
| 0.220 | ±0.003 | 0.014 | 0.245 | ---- | 2200.00 | 23.00 | 5.00 | 434.00 | 466.20 |
| 0.230 | ±0.003 | 0.016 | 0.257 | ---- | 2200.00 | 24.00 | 5.00 | 397.50 | 426.00 |
| 0.240 | ±0.003 | 0.016 | 0.267 | ---- | 2200.00 | 24.00 | 5.00 | 365.50 | 390.80 |
| 0.250 | ±0.003 | 0.016 | 0.277 | ---- | 2300.00 | 24.00 | 5.00 | 337.10 | 359.80 |
| 0.260 | ±0.004 | 0.018 | 0.287 | ---- | 2300.00 | 25.00 | 5.00 | 309.60 | 335.00 |
| 0.270 | ±0.004 | 0.018 | 0.297 | ---- | 2300.00 | 25.00 | 5.00 | 287.40 | 310.30 |
| 0.280 | ±0.004 | 0.022 | 0.313 | ---- | 2300.00 | 25.00 | 5.00 | 267.60 | 288.20 |
| 0.290 | ±0.004 | 0.022 | 0.323 | ---- | 2500.00 | 25.00 | 5.00 | 249.70 | 268.40 |
| 0.300 | ±0.004 | 0.022 | 0.334 | ---- | 2500.00 | 25.00 | 5.00 | 233.50 | 250.60 |
| 0.310 | ±0.004 | 0.022 | 0.344 | ---- | 2500.00 | 25.00 | 5.00 | 218.90 | 234.40 |
| 0.315 | ±0.004 | 0.022 | 0.349 | ---- | 2500.00 | 25.00 | 5.00 | 212.10 | 227.00 |
| 0.320 | ±0.004 | 0.023 | 0.355 | ---- | 2700.00 | 25.00 | 5.00 | 205.60 | 219.80 |
| 0.330 | ±0.004 | 0.023 | 0.365 | ---- | 2700.00 | 25.00 | 5.00 | 193.50 | 206.60 |
| 0.350 | ±0.004 | 0.023 | 0.385 | ---- | 2700.00 | 26.00 | 5.00 | 172.20 | 183.40 |
| 0.355 | ±0.004 | 0.023 | 0.390 | ---- | 2700.00 | 26.00 | 5.00 | 167.40 | 178.20 |
| 0.370 | ±0.004 | 0.024 | 0.406 | ---- | 2900.00 | 26.00 | 5.00 | 154.30 | 163.90 |
| 0.380 | ±0.004 | 0.024 | 0.416 | ---- | 2900.00 | 26.00 | 5.00 | 146.40 | 155.30 |
| 0.400 | ±0.004 | 0.025 | 0.437 | ---- | 2900.00 | 27.00 | 5.00 | 132.20 | 140.00 |
| 0.410 | ±0.004 | 0.025 | 0.447 | ---- | 2900.00 | 27.00 | 5.00 | 125.90 | 133.20 |
| 0.440 | ±0.004 | 0.025 | 0.477 | ---- | 2900.00 | 27.00 | 5.00 | 109.50 | 115.50 |
| 0.450 | ±0.004 | 0.025 | 0.487 | ---- | 2900.00 | 27.00 | 5.00 | 104.70 | 110.40 |
| 0.470 | ±0.004 | 0.026 | 0.508 | ---- | 3100.00 | 27.00 | 5.00 | 96.05 | 101.10 |
| 0.500 | ±0.004 | 0.026 | 0.539 | ---- | 3100.00 | 27.00 | 5.00 | 84.96 | 89.23 |
| 0.550 | ±0.004 | 0.027 | 0.590 | ---- | 3300.00 | 28.00 | 5.00 | 70.31 | 73.64 |
| 0.600 | ±0.005 | 0.027 | 0.640 | ---- | 3500.00 | 28.00 | 5.00 | 58.96 | 62.01 |
| 0.650 | ±0.005 | 0.027 | 0.690 | ---- | 3500.00 | 28.00 | 5.00 | 50.30 | 52.77 |
| 0.700 | ±0.005 | 0.029 | 0.742 | ---- | 3500.00 | 28.00 | 5.00 | 43.42 | 45.45 |
| 0.750 | ±0.005 | 0.030 | 0.794 | ---- | 3800.00 | 28.00 | 5.00 | 37.86 | 39.55 |
| 0.800 | ±0.005 | 0.032 | 0.846 | ---- | 3800.00 | 28.00 | 5.00 | 33.30 | 34.73 |
Tianjin Ruiyuan Electric Material Co,.Ltd
RUIYUAN was established in 2002, located in Tianjin City,the second
largest port city in China.We have been focusing on different kinds
of high quality wires: enameled round copper wire, rectangular
enameled copper triple insulated wire, silk covered Litz wire,
bonding wire and special enameled wire for 21 years.Ruiyuan is one
of the pioneers in producing micro thin enameled wires below 0.03mm
in China. Our R & D team has 20 years of market experience. In
2019, our finest diameter is 0.011mm, and mass production has been
achieved. All of our products are UL, RoHS certified, in line with
industry standards IEC60317, JIS C 3202, NEMA, NW82.
