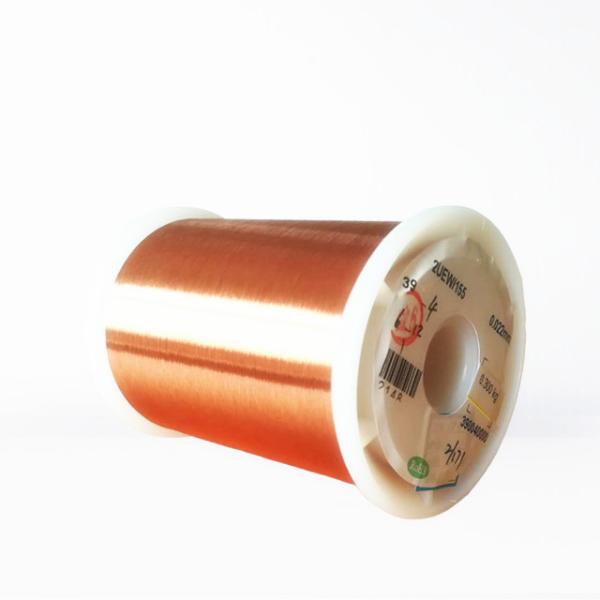

High Frequency Solderable Enamelled Magnet Wire Polyester Insulation For Transformer

Ask Lasest Price
Brand Name :	Rvyuan
Model Number :	0.012-3.00MM
Certification :	ISO9001/ISO14001/UL /SGS
Price :	Negotiation
Payment Terms :	Negotiation, T/T, L/C
Supply Ability :	Satisfy your demand
Delivery Time :	2-15 workding days

Add to Cart

Product Details
Company Profile

High Frequency Solderable Enamelled Magnet Wire Polyester Insulation For Transformer

HIGH FREQUENCY SOLDERABLE ENAMELED MAGNET WIRE POLYESTER INSULATION FOR TRANSFORMER

Magnet wire or enameled wire is a copper or aluminium wire coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.The wire itself is most often fully annealed, electrolytically refined copper. Aluminium magnet wire is sometimes used for large transformers and motors. The insulation is typically made of tough polymer film materials rather than enamel, as the name might suggest.

FEATURES

With good solderability, reduces coil production costs due to elimination of mechanical or chemical stripping.
Superior ''Q'' characteristic at high frequencies.
3Excellent film adhension and flexibility.
4) Extremely resistant to a variety of solvents including most varnishes and hardener catalysts.

High Frequency Solderable Enamelled Magnet Wire Polyester Insulation For Transformer

Nominal Diameter mm	Tolerance	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage		Elongation	Pin Hole	Electrical Resistance
	mm			≥ V		≥%	≤Default/5m	Ω/km (20℃)
				Mandrel Method	Twisted Method			Min.	Max.
0.012	----	0.013	0.015	50.000	----	5.00	10.00	142.64	157.65
0.013	----	0.015	0.017	70.000	----	5.00	10.00	118.41	133.98
0.014	----	0.016	0.018	70.000	----	5.00	10.00	102.64	120.45
0.015	----	0.017	0.020	80.000	----	5.00	10.00	89.83	104.41
0.016	----	0.018	0.021	90.000	----	5.00	8.00	74.67	97.56
0.017	----	0.019	0.022	90.000	----	5.00	8.00	66.60	85.75
0.018	----	0.020	0.023	100.000	----	5.00	8.00	59.77	75.95
0.019	----	0.021	0.024	100.000	----	5.00	8.00	53.95	67.75
0.020	0.001	0.022	0.024	100.000	----	8.00	8.00	51.83	60.81
0.050	±0.002	0.007	0.062	400.000	1200.00	12.00	5.00	7981.00	9528.00
0.055	±0.002	0.007	0.068	400.000	1200.00	12.00	5.00	6642.00	7815.00
0.060	±0.002	0.007	0.073	500.000	1200.00	14.00	5.00	5614.00	6526.00
0.065	±0.002	0.007	0.078	500.000	1200.00	14.00	5.00	4807.00	5531.00
0.070	±0.002	0.007	0.083	500.000	1200.00	15.00	5.00	4163.00	4747.00
0.075	±0.002	0.007	0.088	550.000	1200.00	15.00	5.00	3640.00	4119.00
0.080	±0.002	0.008	0.094	550.000	1200.00	16.00	5.00	3209.00	3608.00
0.085	±0.002	0.008	0.099	550.000	1200.00	16.00	5.00	2851.00	3187.00
0.090	±0.002	0.010	0.106	650.000	1200.00	16.00	5.00	2550.00	2835.00
0.095	±0.002	0.010	0.111	650.000	1200.00	17.00	5.00	2294.00	2538.00
0.100	±0.002	0.011	0.118	650.000	1200.00	17.00	5.00	2074.00	2286.00
0.110	±0.002	0.011	0.129	----	1300.00	17.00	5.00	1720.00	1882.00
0.120	±0.002	0.011	0.139	----	1500.00	17.00	5.00	1450.00	1577.00
0.130	±0.002	0.011	0.149	----	1500.00	18.00	5.00	1239.00	1340.00
0.140	±0.002	0.011	0.159	----	1600.00	19.00	5.00	1070.00	1153.00
0.150	±0.002	0.011	0.169	----	1700.00	20.00	5.00	934.10	1002.00
0.160	±0.002	0.012	0.180	----	1700.00	21.00	5.00	822.30	879.40
0.170	±0.003	0.013	0.192	----	2000.00	22.00	5.00	721.10	787.10
0.180	±0.003	0.014	0.204	----	2000.00	22.00	5.00	644.40	700.70
0.190	±0.003	0.014	0.214	----	2000.00	23.00	5.00	579.40	627.80
0.200	±0.003	0.014	0.224	----	2000.00	23.00	5.00	523.70	565.70
0.210	±0.003	0.014	0.234	----	2000.00	23.00	5.00	475.70	512.30
0.220	±0.003	0.014	0.245	----	2200.00	23.00	5.00	434.00	466.20
0.230	±0.003	0.016	0.257	----	2200.00	24.00	5.00	397.50	426.00
0.240	±0.003	0.016	0.267	----	2200.00	24.00	5.00	365.50	390.80
0.250	±0.003	0.016	0.277	----	2300.00	24.00	5.00	337.10	359.80
0.260	±0.004	0.018	0.287	----	2300.00	25.00	5.00	309.60	335.00
0.270	±0.004	0.018	0.297	----	2300.00	25.00	5.00	287.40	310.30
0.280	±0.004	0.022	0.313	----	2300.00	25.00	5.00	267.60	288.20
0.290	±0.004	0.022	0.323	----	2500.00	25.00	5.00	249.70	268.40
0.300	±0.004	0.022	0.334	----	2500.00	25.00	5.00	233.50	250.60
0.310	±0.004	0.022	0.344	----	2500.00	25.00	5.00	218.90	234.40
0.315	±0.004	0.022	0.349	----	2500.00	25.00	5.00	212.10	227.00
0.320	±0.004	0.023	0.355	----	2700.00	25.00	5.00	205.60	219.80
0.330	±0.004	0.023	0.365	----	2700.00	25.00	5.00	193.50	206.60
0.350	±0.004	0.023	0.385	----	2700.00	26.00	5.00	172.20	183.40
0.355	±0.004	0.023	0.390	----	2700.00	26.00	5.00	167.40	178.20
0.370	±0.004	0.024	0.406	----	2900.00	26.00	5.00	154.30	163.90
0.380	±0.004	0.024	0.416	----	2900.00	26.00	5.00	146.40	155.30
0.400	±0.004	0.025	0.437	----	2900.00	27.00	5.00	132.20	140.00
0.410	±0.004	0.025	0.447	----	2900.00	27.00	5.00	125.90	133.20
0.440	±0.004	0.025	0.477	----	2900.00	27.00	5.00	109.50	115.50
0.450	±0.004	0.025	0.487	----	2900.00	27.00	5.00	104.70	110.40
0.470	±0.004	0.026	0.508	----	3100.00	27.00	5.00	96.05	101.10
0.500	±0.004	0.026	0.539	----	3100.00	27.00	5.00	84.96	89.23
0.550	±0.004	0.027	0.590	----	3300.00	28.00	5.00	70.31	73.64
0.600	±0.005	0.027	0.640	----	3500.00	28.00	5.00	58.96	62.01
0.650	±0.005	0.027	0.690	----	3500.00	28.00	5.00	50.30	52.77
0.700	±0.005	0.029	0.742	----	3500.00	28.00	5.00	43.42	45.45
0.750	±0.005	0.030	0.794	----	3800.00	28.00	5.00	37.86	39.55
0.800	±0.005	0.032	0.846	----	3800.00	28.00	5.00	33.30	34.73
