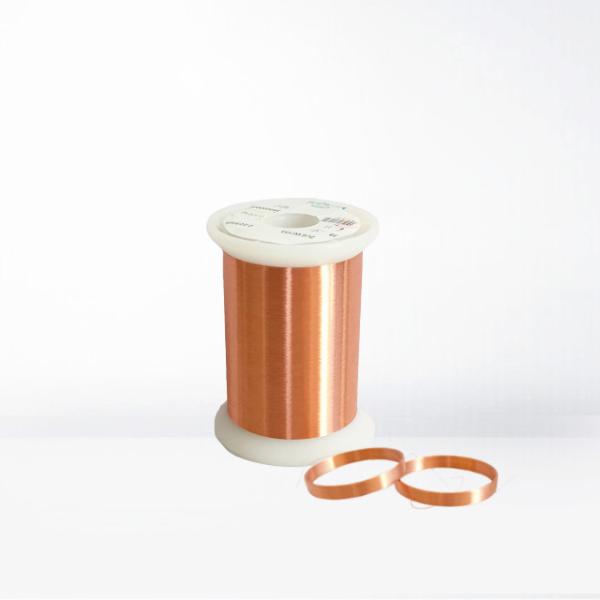

    Polyurethane High Temperature Copper Magnet Wire Coated Self Bonding Enameled Wire

    Ask Lasest Price
    Brand Name : Rvyuan
    Certification : IEC/NEMA/JIS/RoHS/ISO
    Price : Negotiation
    Payment Terms : Negotiation
    Delivery Time : 2-15 workding days
    Supply Ability : Satisfy your demand
    Model Number : 155/180
    • Product Details
    • Company Profile

    Polyurethane High Temperature Copper Magnet Wire Coated Self Bonding Enameled Wire

    POLYURETHANE HIGH TEMPERATURE COPPER MAGNET WIRE COATED SELF BONDING ENAMELED WIRE
    One of the primary properties that make Enamelled copper wire desirable for wide applications is the thin enameling insulation. Transformers, motors and generators are all machines based on the coil, which is a device that generates magnetic fields and electrical currents using large coils of wire. The smaller these devices are, the stronger they are. Because Enameled Aluminum Magnet Wire and Enameled copper Magnet Wire is insulated by a thin coat of enamel instead other types of thicker insulation like paper, fibre glass, mica etc. As Enamel Aluminum Wire or Enamel Copper Wire takes up less space in coil formation so it makes more effective and compact coils with higher efficiency.
    FEATURES AND BENEFITS

    • Good resistance to refrigerant and freon

    • Suitable for windings that are subjected to constantly high temperature and mechanical stress

    • Good chemical resistance

    • Outstanding mechanical and chemical property

    APPLICATIONS
    • Small type motor ( Electric household appliance, Toys & etc. )

    • Transformer for measuring instrument

    • For communication : High frequency coil for transformer, Coil for power source transformer

    • Coil-small transformer, TV, speaker & etc.

    Polyurethane High Temperature Copper Magnet Wire Coated Self Bonding Enameled Wire


    Polyurethane High Temperature Copper Magnet Wire Coated Self Bonding Enameled Wire

    SPECIFICATION

    Dimensions

    Minimum
    dielectric
    breakdown
    voltage
    V.

    Maximun
    conductor
    resistance per
    unit length
    W / km (20oC)

    Minimum
    elongation
    %

    Conductor

    Minimum thick-

    ness of poly-
    urethane layer
    mm.

    n
    Miniimum film
    thickness
    mm.

    Maximum
    overall diameter
    mm.

    Diameter
    mm.

    Tolerance
    mm.

    0.025

    + 0.002

    0.002

    0.003

    0.037

    60

    42780

    5.0

    0.03

    0.044

    70

    28870

    5.0

    0.04

    0.056

    100

    15670

    7.0

    0.05

    + 0.003

    0.003

    0.004

    0.069

    700

    10240

    10.0

    0.06

    0.081

    6966

    0.07

    0.091

    4990

    0.08

    0.103

    3778

    0.005

    0.09

    0.113

    2959

    0.10

    0.125

    2381

    15.0

    0.11

    0.135

    1957

    0.12

    0.147

    1636

    0.004

    0.006

    850

    0.13

    0.157

    1389

    0.14

    0.167

    1193

    0.15

    0.177

    1037

    0.16

    0.189

    908.8

    0.005

    0.007

    0.17

    0.199

    803.2

    0.18

    0.211

    715.0

    0.008

    1000

    0.19

    0.221

    640.6

    0.20

    0.231

    577.2

    0.21

    0.241

    522.8

    0.22

    0.252

    480.1

    + 0.004

    0.23

    0.264

    438.6

    0.006

    0.009

    0.24

    0.274

    402.2

    0.25

    0.284

    370.2

    0.26

    0.294

    341.8

    0.27

    0.304

    316.6

    0.28

    0.314

    294.1

    0.29

    0.324

    273.9

    20.0

    0.30

    + 0.005

    0.007

    0.010

    0.337

    1400

    254.0

    0.32

    0.357

    222.8

    0.35

    0.387

    185.7

    0.37

    0.407

    165.9

    0.40

    0.439

    141.7

    0.011

    0.45

    + 0.006

    0.490

    112.1

    0.50

    0.542

    90.0

    0.008

    0.012

    1450

    0.55

    0.592

    74.1

    0.60

    + 0.008

    0.644

    62.6
