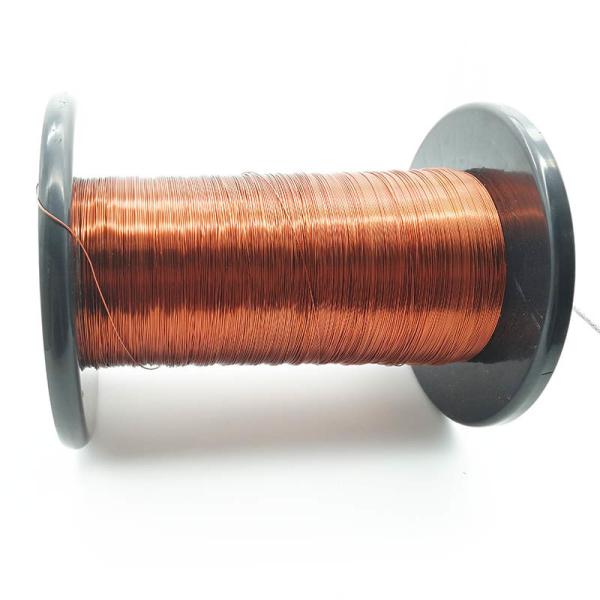

    Electric Motor Winding Materials Enamelled Copper Wire 0.5mm

    Ask Lasest Price
    Brand Name : Rvyuan
    Model Number : UEW
    Certification : ISO9001/ISO14001/UL/SGS
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : Satisfy your demand
    Delivery Time : 2-15 workding days
    • Product Details
    • Company Profile

    Electric Motor Winding Materials Enamelled Copper Wire 0.5mm

    Electric Motor Winding Materials Enameled Copper Wire


    Polyurethane enameled wire; thermal grades 130, 155, 180, 200. The biggest feature is that it has direct welding, good high frequency resistance, easy coloring, and good moisture resistance. It is widely used in electronic appliances and precision instruments, telecommunications, and instruments. The weakness of this product is that its mechanical strength is slightly poor and its heat resistance is not high. , and the flexibility and adhesion of large-sized wires are poor, so the specifications of this product are mostly small and medium-sized wires.


    Name

    Electric Motor Winding Materials Enameled Copper Wire

    Key word

    Enameled copper wire

    Insulation

    Polyurethane

    Thermal rating

    155degree

    Diameter of the enameled copper wire

    0.5mm

    Key word

    Electric Motor Winding Materials Enameled Copper Wire


    Characteristics
    Technical requests
    Test Results
    Sample 1
    Sample 2
    Surface
    Good
    OK
    OK
    Bare Wire Diameter
    0.500±0.004
    0.5
    0.5
    Coating Thickness
    ≥ 0.043 mm
    0.48
    0.48
    Overall Diameter
    ≤ 0.555 mm
    0.548
    0.548
    Conductor resistance
    ≤ 0.08923 Ω/m
    0.08726
    0.08763
    Elongation
    ≥ 27 %
    36
    35
    Breakdown Voltage
    ≥ 4300 V
    5533
    5647
    Pinhole Test
    ≤ 3 holes/5m
    0
    0
    Continuity
    ≤ 5 holes/30m
    0
    0
    Test Items
    Technical Requests
    Results
    Adhesive
    Coating layer is good
    OK
    Cut-through
    200℃ 2mins no breakdown
    OK
    Heat Shock
    175±5℃/30min no crack
    OK
    Solder Ability
    390± 5℃ 2SecSmooth
    OK
    Solvent resistance
    No foam, no swelling, no falling off
    OK

    Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
