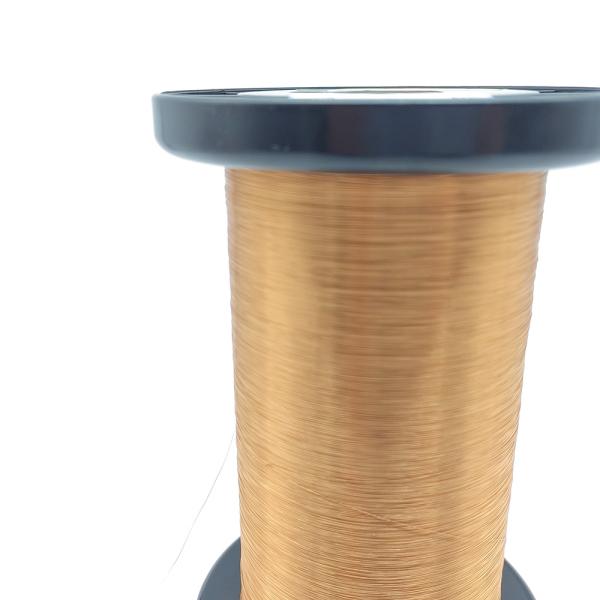

    0.055mm Enamel Copper Wire Super Thin 2uew Winding

    Ask Lasest Price
    Brand Name : Rvyuan
    Model Number : UEW
    Certification : ISO9001/ISO14001/UL/SGS
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : Satisfy your demand
    Delivery Time : 2-15 workding days
    • Product Details
    • Company Profile

    0.055mm Enamel Copper Wire Super Thin 2uew Winding

    0.055mm Super Thin 2UEW Winding Wire Enameled Copper Wire


    Features and benefits of enameled copper wire


    1. Excellent wet/dry dielectric characteristics and moisture resistance compared favorably with PEW+NY enameled copper wire.

    2. Excellent flexibility, film adhesion and cut throught reisstance

    3. Superior "Q" characteristics at high frequencies.Enameled copper wire

    c4. Excellent resistant to a variety of solvents including most varnishes and hardener catalysts.


    Name

    0.055mm Super Thin 2UEW Winding Wire Enameled Copper Wire

    Key word

    Enameled copper wire

    Insulation

    Polyurethane

    Thermal rating

    155degree

    Diameter of the enameled copper wire

    0.025mm

    Type

    Enameled copper wire


    NO.
    Characteristics
    Technical requests
    Test Results
    Conclusion
    Sample1
    Sample 2
    Sample 3
    OK
    1
    Surface
    Good
    OK
    OK
    OK
    OK
    2
    Bare Wire Diameter
    0.0550±
    0.002
    0.055
    0.055
    0.055
    OK
    0.002
    3
    Overall diameter
    ≤ 0.069 mm
    0.0660
    0.0650
    0.0650
    OK
    4
    Insulation thickness
    Min 0.007
    0.0110
    0.0110
    0.0110
    OK
    5
    Electrical Resistance
    ≤ 7.815 Ω/m
    7.342
    7.287
    7.358
    OK
    6
    Elongation
    ≥ 12%
    17
    17
    18
    OK
    7
    Breakdown voltage
    ≥ 375 V
    1602
    1435
    1568
    OK
    8
    Pinbole test
    ≤ 5 hole/5m
    0
    0
    0
    OK
    9
    Enamel continuity
    ≤ 60 hole/30m
    0
    0
    0
    OK
    Remark
    Test items
    Technical Requests
    Results
    1
    Adhesive
    No crack
    OK
    2
    Cut-through
    200℃ 2mins no crack
    OK
    3
    Heat Shock
    175±5℃/30min no crack
    OK
    4
    Solder Ability
    390℃±5C/2S Smooth
    OK

    Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
