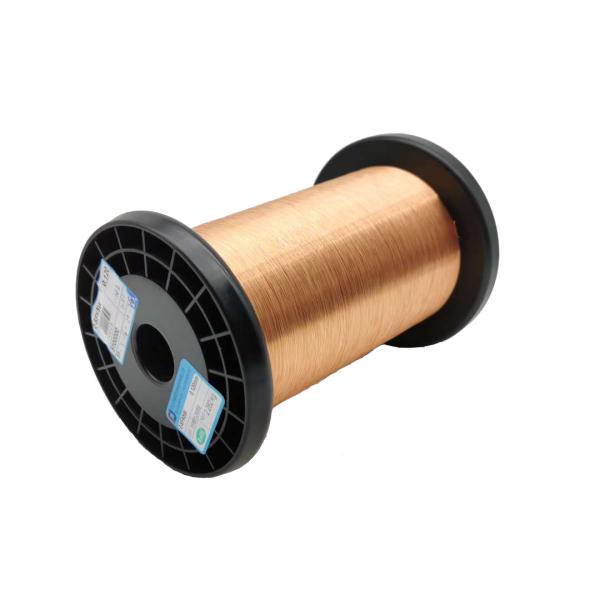

UEW Insulation 0.35mm Class 155 Winding Enameled Copper Wire

Tianjin Ruiyuan Electric Material Co,.Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap UEW Insulation 0.35mm Class 155 Winding Enameled Copper Wire from wholesalers

    Buy cheap UEW Insulation 0.35mm Class 155 Winding Enameled Copper Wire from wholesalers
    • Buy cheap UEW Insulation 0.35mm Class 155 Winding Enameled Copper Wire from wholesalers
    • Buy cheap UEW Insulation 0.35mm Class 155 Winding Enameled Copper Wire from wholesalers

    UEW Insulation 0.35mm Class 155 Winding Enameled Copper Wire

    Ask Lasest Price
    Brand Name : Rvyuan
    Model Number : UEW
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 200 Ton/Tons per Month
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    UEW Insulation 0.35mm Class 155 Winding Enameled Copper Wire

    0.35mm Class 155 Winding Wire Enameled Copper Wire


    We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...

    Advantages Of Enameled Copper Wire

    1. a) High resistance to heat shock.

    2. b) High temperature.

    3. c) Good performance in cut-through.

    4. d) Suitable for high-speed automated routing.

    5. e) Able to be direct weld, with no pinhole.

    6. f) Resistive to high frequency, wearing, refrigerants and electronics corona.

    7. g) High breakdown voltage, small dielectric loss angle.

    8. h) Environment-friendly.


    9. Test report

    10. Test Items
      Requirements
      Test Data
      Result
      1st Sample
      2nd Sample
      3rd Sample
      Appearance
      Smooth & Clean
      OK
      OK
      OK
      OK
      Conductor Diameter
      0.35mm ±
      0.004mm
      0.351
      0.351
      0.351
      OK
      0.004mm
      Thickness of Insulation
      ≥0.023 mm
      0.031
      0.033
      0.032
      OK
      Overall Diameter
      ≤ 0.387 mm
      0.382
      0.384
      0.383
      OK
      DC Resistance
      ≤ 0.1834Ω/m
      0.1798
      0.1812
      0.1806
      OK
      Elongation
      ≥23%
      28
      30
      29
      OK
      Breakdown Voltage
      ≥2700V
      5199
      5543
      5365
      OK
      Pin Hole
      ≤ 5 faults/5m
      0
      0
      0
      OK
      Adherence
      No cracks visible
      OK
      OK
      OK
      OK
      Cut-through
      200℃ 2min No breakdown
      OK
      OK
      OK
      OK
      Heat Shock
      175±5℃/30min No cracks
      OK
      OK
      OK
      OK
      Solderability
      390± 5℃ 2 Sec No slags
      OK
      OK
      OK
      OK
      Insulation Continuity
      ≤ 25 faults/30m
      0
      0
      0
      OK
