0.012 - 0.05mm Solderable Magnet Wire

Ask Lasest Price
Brand Name :	Rvyuan
Model Number :	0.012-0.05mm
Certification :	ISO9001/ISO14001 /UL/SGS
Price :	Negotiation
Payment Terms :	Negotiation,
Supply Ability :	Satisfy your demand
Delivery Time :	2-15 workding days

Add to Cart

Product Details
Company Profile

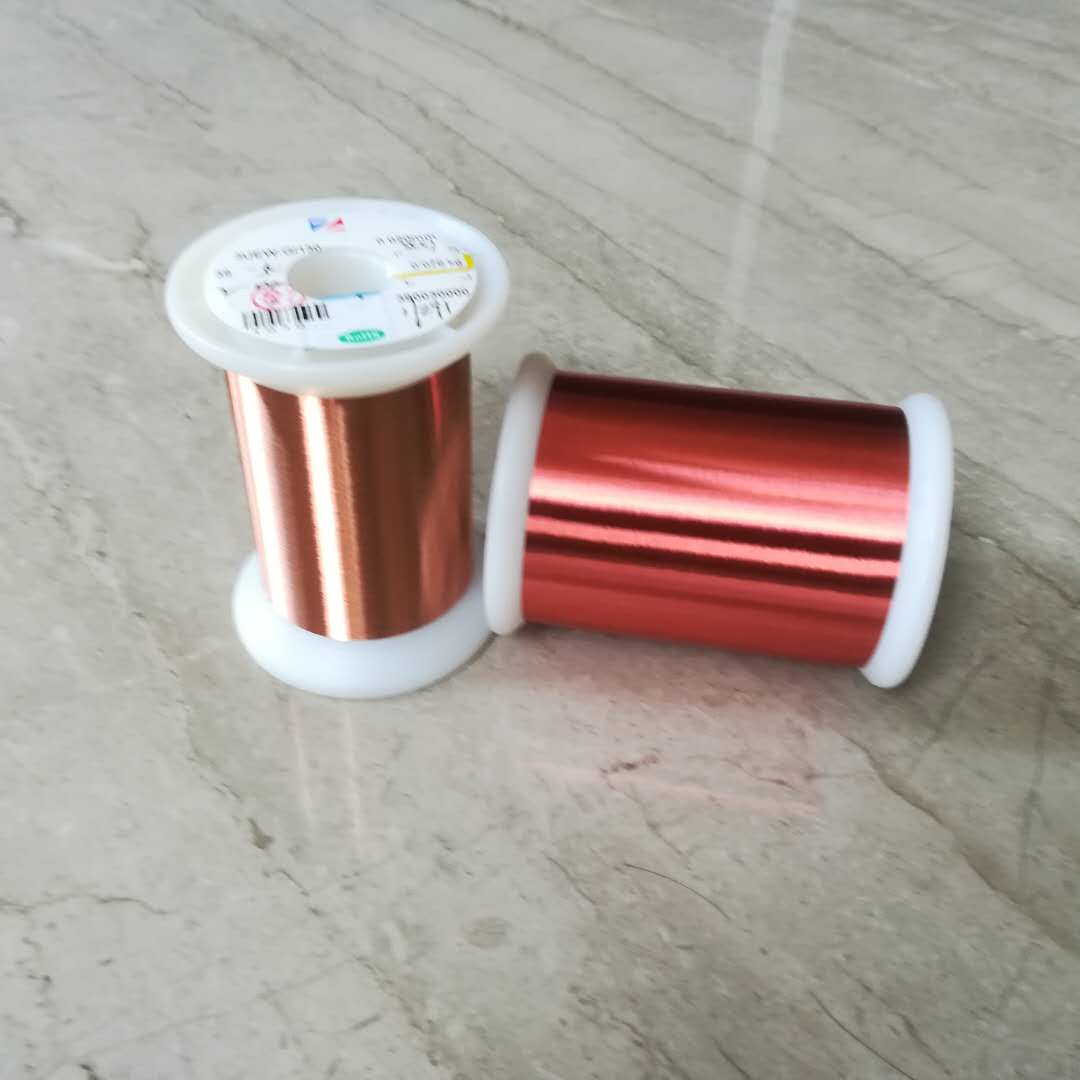

0.012 - 0.05mm Solderable Magnet Wire

0.012 - 0.05MM COLORFUL ULTR THIN COPPER WIRE AWG56-24 SOLDERABLE MAGNET WIRE

Ultra thin enameled copper wire is widely used in precise electronic device,such as medical device,touch screen, sensors etc.Our wilre has been tested by European market with different applications with superexcellent performance. Most manufacture can only provide natural color or other color but need very hugh quantity, we can offer you the best solution, color wire with very low MOQ that will be grealy reduce your costs.

FEATURES

1. Temperature Rate: 130/155/180/200/220

2. Great consistency: 0 pinhole, no quality issue for long time storage

3. Excellant winding quality:Higher elongation, seldom broken during high speed winding

4. Marvelous breakdown voltage uniform coating, 3-6times than standard

0.02 Red-5.jpg

SPECIFICATION

Nominal Diameter mm	Breakdown Voltage ( ≥ V, Mandrel Method)	Breakdown Voltage ( ≥ V, Twisted Method)	Electrical Resistance Ω/m (20℃) Min.	Electrical Resistance Ω/m (20℃) Max.
0.012	50	----	142.64	157.65
0.013	70	----	118.41	133.98
0.014	70	----	102.64	120.45
0.015	80	----	89.83	104.41
0.016	90	----	74.67	97.56
0.017	90	----	66.6	85.75
0.018	100	----	59.77	75.95
0.019	100	----	53.95	67.75
0.02	100	----	51.83	60.81
0.05	400	1200	7981	9528
