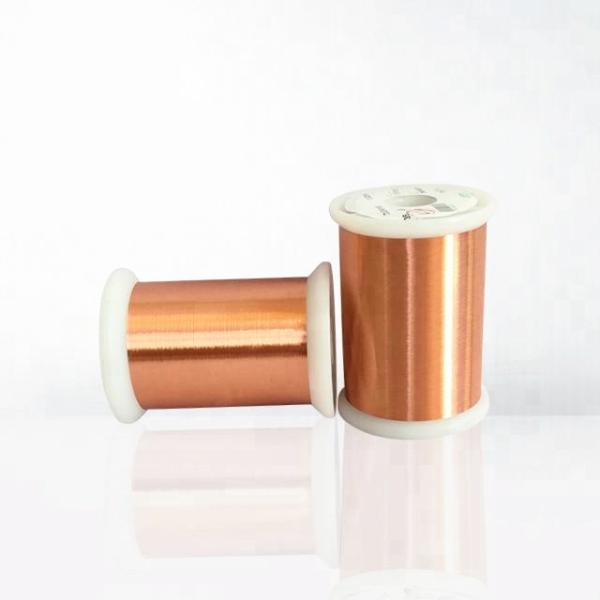

0.012 - 0.08mm Ultra Thin Enameled Copper Wire Self Bonding Magnet Wire

Ask Lasest Price
Brand Name :	Rvyuan
Certification :	IEC/NEMA/JIS/RoHS/ISO
Price :	Negotiation
Payment Terms :	T/T, L/C
Delivery Time :	2-15 workding days
Supply Ability :	200 Ton/Tons per Month
Model Number :	0.012 - 0.08mm

Add to Cart

Product Details
Company Profile

0.012 - 0.08mm Ultra Thin Enameled Copper Wire Self Bonding Magnet Wire

0.012 - 0.08MM ULTRA THIN ENAMELED COPPER WIRE SELF BONDING MAGNET WIRE

Enameled copper wire or magnet wire is a fundamental part of a winding in every electrical machine or apparatus. Compared to fibrous insulations, enamelled copper & aluminium wire offers a favourable space saving factor together with a high level of breakdown voltage. The main application of Enamelled Copper Wire & Enamelled Aluminium wire is in winding of Motor and Transformers.Enamelled Aluminium Wire or Enameled Copper Wire is a wire coated with a thin layer of enamel (varnish) insulation to prevent the wire surfaces from being in a short circuit when wound into coils. Magnetic flux is created when current flows through the coil. Aluminum Enameled Wire and Copper Enamelled Winding Wire are used mainly in the construction of motors, electromagnets, transformers and inductors. For ease of manufacturing inductive components like transformers and inductors, most of these wires can be soldered.

FEATURES AND BENEFITS

Excellent resistance to abrasion and solvent,
Excellent electricity performance
Excellent heat shock, adherence and flexibility
High cut through

APPLICATION

Dry type transformers ( For power distribution, Vehicles & etc. )
Transformer for measuring instrument
For power generation : Coil for electromagnetic switches, solenoid coil, Coil for lighting fixtures
Coil-motor ( Class H )

0.012 - 0.08mm Ultra Thin Enameled Copper Wire Self Bonding Magnet Wire

SPECIFICATIONS

Nominal Diameter mm	Tolerance	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage		Elongation	Pin Hole	Electrical Resistance
	mm			≥ V		≥%	≤Default/5m	Ω/km (20℃)
				Mandrel Method	Twisted Method			Min.	Max.
0.012	----	0.013	0.015	50.000	----	5.00	10.00	142.64	157.65
0.013	----	0.015	0.017	70.000	----	5.00	10.00	118.41	133.98
0.014	----	0.016	0.018	70.000	----	5.00	10.00	102.64	120.45
0.015	----	0.017	0.020	80.000	----	5.00	10.00	89.83	104.41
0.016	----	0.018	0.021	90.000	----	5.00	8.00	74.67	97.56
0.017	----	0.019	0.022	90.000	----	5.00	8.00	66.60	85.75
0.018	----	0.020	0.023	100.000	----	5.00	8.00	59.77	75.95
0.019	----	0.021	0.024	100.000	----	5.00	8.00	53.95	67.75
0.020	0.001	0.022	0.024	100.000	----	8.00	8.00	51.83	60.81
0.050	±0.002	0.007	0.062	400.000	1200.00	12.00	5.00	7981.00	9528.00
0.055	±0.002	0.007	0.068	400.000	1200.00	12.00	5.00	6642.00	7815.00
0.060	±0.002	0.007	0.073	500.000	1200.00	14.00	5.00	5614.00	6526.00
0.065	±0.002	0.007	0.078	500.000	1200.00	14.00	5.00	4807.00	5531.00
0.070	±0.002	0.007	0.083	500.000	1200.00	15.00	5.00	4163.00	4747.00
0.075	±0.002	0.007	0.088	550.000	1200.00	15.00	5.00	3640.00	4119.00
0.080	±0.002	0.008	0.094	550.000	1200.00	16.00	5.00	3209.00	3608.00
