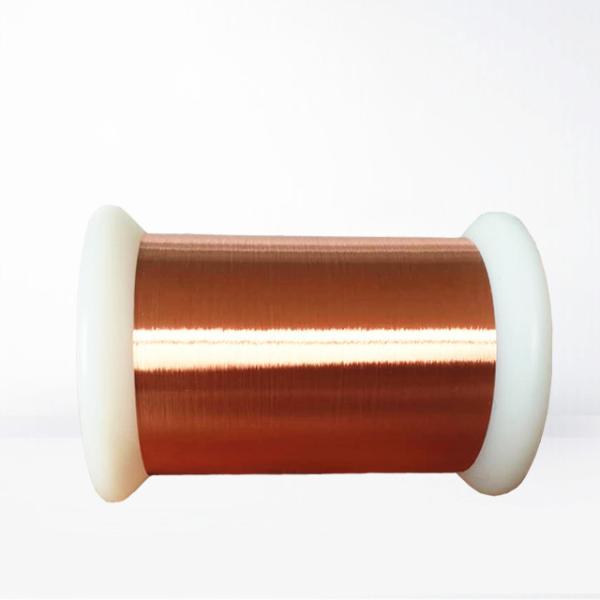

0.022MM POLYURETHANE MOTOR WINDING WIRE ULTRA FINE ENAMELED ROUND COPPER WIRE MAGNET WIRE FOR WINDING
Enameled round copper wire is extruded or drawn from oxygen-free copper rod with certain specification mould,then coated with insulating paint on mang times.the product is widely applied in transformer,electromotors,generator and other similar electrical instruments.Our enamelled wire is produced environmentally compatibly and containes a minimum of pollutants only. Independent laboratories confirm with their corresponding RoHS certificates, that enamelled wire is compatible with the environment.
FEATURES AND BENEFITS
1. Good solderable and colorability. And it reduce small under high frequency.
2. imports foreign technology and equipments cooperating with foreign experts and foreign companies.
3. Good radiation resistance, excellent chemical corrosion.
4. Stable insulation layer and its copper paste
5. Good environment resistant and good stableity.
| Nominal Diameter mm | Tolerance | Min. Increase of Diameter | Max. Overall Diameter | Breakdown Voltage | | Elongation | Pin Hole | Electrical Resistance | |
| | mm | | | ≥ V | | ≥% | ≤Default/5m | Ω/km (20℃) | |
| | | | | Mandrel Method | Twisted Method | | | Min. | Max. |
| 0.012 | ---- | 0.013 | 0.015 | 50.000 | ---- | 5.00 | 10.00 | 142.64 | 157.65 |
| 0.013 | ---- | 0.015 | 0.017 | 70.000 | ---- | 5.00 | 10.00 | 118.41 | 133.98 |
| 0.014 | ---- | 0.016 | 0.018 | 70.000 | ---- | 5.00 | 10.00 | 102.64 | 120.45 |
| 0.015 | ---- | 0.017 | 0.020 | 80.000 | ---- | 5.00 | 10.00 | 89.83 | 104.41 |
| 0.016 | ---- | 0.018 | 0.021 | 90.000 | ---- | 5.00 | 8.00 | 74.67 | 97.56 |
| 0.017 | ---- | 0.019 | 0.022 | 90.000 | ---- | 5.00 | 8.00 | 66.60 | 85.75 |
| 0.018 | ---- | 0.020 | 0.023 | 100.000 | ---- | 5.00 | 8.00 | 59.77 | 75.95 |
| 0.019 | ---- | 0.021 | 0.024 | 100.000 | ---- | 5.00 | 8.00 | 53.95 | 67.75 |
| 0.020 | 0.001 | 0.022 | 0.024 | 100.000 | ---- | 8.00 | 8.00 | 51.83 | 60.81 |
| 0.050 | ±0.002 | 0.007 | 0.062 | 400.000 | 1200.00 | 12.00 | 5.00 | 7981.00 | 9528.00 |
| 0.055 | ±0.002 | 0.007 | 0.068 | 400.000 | 1200.00 | 12.00 | 5.00 | 6642.00 | 7815.00 |
| 0.060 | ±0.002 | 0.007 | 0.073 | 500.000 | 1200.00 | 14.00 | 5.00 | 5614.00 | 6526.00 |
| 0.065 | ±0.002 | 0.007 | 0.078 | 500.000 | 1200.00 | 14.00 | 5.00 | 4807.00 | 5531.00 |
| 0.070 | ±0.002 | 0.007 | 0.083 | 500.000 | 1200.00 | 15.00 | 5.00 | 4163.00 | 4747.00 |
| 0.075 | ±0.002 | 0.007 | 0.088 | 550.000 | 1200.00 | 15.00 | 5.00 | 3640.00 | 4119.00 |
| 0.080 | ±0.002 | 0.008 | 0.094 | 550.000 | 1200.00 | 16.00 | 5.00 | 3209.00 | 3608.00 |
| 0.085 | ±0.002 | 0.008 | 0.099 | 550.000 | 1200.00 | 16.00 | 5.00 | 2851.00 | 3187.00 |
| 0.090 | ±0.002 | 0.010 | 0.106 | 650.000 | 1200.00 | 16.00 | 5.00 | 2550.00 | 2835.00 |
| 0.095 | ±0.002 | 0.010 | 0.111 | 650.000 | 1200.00 | 17.00 | 5.00 | 2294.00 | 2538.00 |
| 0.100 | ±0.002 | 0.011 | 0.118 | 650.000 | 1200.00 | 17.00 | 5.00 | 2074.00 | 2286.00 |
| 0.110 | ±0.002 | 0.011 | 0.129 | ---- | 1300.00 | 17.00 | 5.00 | 1720.00 | 1882.00 |
| 0.120 | ±0.002 | 0.011 | 0.139 | ---- | 1500.00 | 17.00 | 5.00 | 1450.00 | 1577.00 |
| 0.130 | ±0.002 | 0.011 | 0.149 | ---- | 1500.00 | 18.00 | 5.00 | 1239.00 | 1340.00 |
| 0.140 | ±0.002 | 0.011 | 0.159 | ---- | 1600.00 | 19.00 | 5.00 | 1070.00 | 1153.00 |
| 0.150 | ±0.002 | 0.011 | 0.169 | ---- | 1700.00 | 20.00 | 5.00 | 934.10 | 1002.00 |
| 0.160 | ±0.002 | 0.012 | 0.180 | ---- | 1700.00 | 21.00 | 5.00 | 822.30 | 879.40 |
| 0.170 | ±0.003 | 0.013 | 0.192 | ---- | 2000.00 | 22.00 | 5.00 | 721.10 | 787.10 |
| 0.180 | ±0.003 | 0.014 | 0.204 | ---- | 2000.00 | 22.00 | 5.00 | 644.40 | 700.70 |
| 0.190 | ±0.003 | 0.014 | 0.214 | ---- | 2000.00 | 23.00 | 5.00 | 579.40 | 627.80 |
| 0.200 | ±0.003 | 0.014 | 0.224 | ---- | 2000.00 | 23.00 | 5.00 | 523.70 | 565.70 |
| 0.210 | ±0.003 | 0.014 | 0.234 | ---- | 2000.00 | 23.00 | 5.00 | 475.70 | 512.30 |
| 0.220 | ±0.003 | 0.014 | 0.245 | ---- | 2200.00 | 23.00 | 5.00 | 434.00 | 466.20 |
| 0.230 | ±0.003 | 0.016 | 0.257 | ---- | 2200.00 | 24.00 | 5.00 | 397.50 | 426.00 |
| 0.240 | ±0.003 | 0.016 | 0.267 | ---- | 2200.00 | 24.00 | 5.00 | 365.50 | 390.80 |
| 0.250 | ±0.003 | 0.016 | 0.277 | ---- | 2300.00 | 24.00 | 5.00 | 337.10 | 359.80 |
| 0.260 | ±0.004 | 0.018 | 0.287 | ---- | 2300.00 | 25.00 | 5.00 | 309.60 | 335.00 |
| 0.270 | ±0.004 | 0.018 | 0.297 | ---- | 2300.00 | 25.00 | 5.00 | 287.40 | 310.30 |
| 0.280 | ±0.004 | 0.022 | 0.313 | ---- | 2300.00 | 25.00 | 5.00 | 267.60 | 288.20 |
| 0.290 | ±0.004 | 0.022 | 0.323 | ---- | 2500.00 | 25.00 | 5.00 | 249.70 | 268.40 |
| 0.300 | ±0.004 | 0.022 | 0.334 | ---- | 2500.00 | 25.00 | 5.00 | 233.50 | 250.60 |
| 0.310 | ±0.004 | 0.022 | 0.344 | ---- | 2500.00 | 25.00 | 5.00 | 218.90 | 234.40 |
| 0.315 | ±0.004 | 0.022 | 0.349 | ---- | 2500.00 | 25.00 | 5.00 | 212.10 | 227.00 |
| 0.320 | ±0.004 | 0.023 | 0.355 | ---- | 2700.00 | 25.00 | 5.00 | 205.60 | 219.80 |
| 0.330 | ±0.004 | 0.023 | 0.365 | ---- | 2700.00 | 25.00 | 5.00 | 193.50 | 206.60 |
| 0.350 | ±0.004 | 0.023 | 0.385 | ---- | 2700.00 | 26.00 | 5.00 | 172.20 | 183.40 |
| 0.355 | ±0.004 | 0.023 | 0.390 | ---- | 2700.00 | 26.00 | 5.00 | 167.40 | 178.20 |
| 0.370 | ±0.004 | 0.024 | 0.406 | ---- | 2900.00 | 26.00 | 5.00 | 154.30 | 163.90 |
| 0.380 | ±0.004 | 0.024 | 0.416 | ---- | 2900.00 | 26.00 | 5.00 | 146.40 | 155.30 |
| 0.400 | ±0.004 | 0.025 | 0.437 | ---- | 2900.00 | 27.00 | 5.00 | 132.20 | 140.00 |
| 0.410 | ±0.004 | 0.025 | 0.447 | ---- | 2900.00 | 27.00 | 5.00 | 125.90 | 133.20 |
| 0.440 | ±0.004 | 0.025 | 0.477 | ---- | 2900.00 | 27.00 | 5.00 | 109.50 | 115.50 |
| 0.450 | ±0.004 | 0.025 | 0.487 | ---- | 2900.00 | 27.00 | 5.00 | 104.70 | 110.40 |
| 0.470 | ±0.004 | 0.026 | 0.508 | ---- | 3100.00 | 27.00 | 5.00 | 96.05 | 101.10 |
| 0.500 | ±0.004 | 0.026 | 0.539 | ---- | 3100.00 | 27.00 | 5.00 | 84.96 | 89.23 |
| 0.550 | ±0.004 | 0.027 | 0.590 | ---- | 3300.00 | 28.00 | 5.00 | 70.31 | 73.64 |
| 0.600 | ±0.005 | 0.027 | 0.640 | ---- | 3500.00 | 28.00 | 5.00 | 58.96 | 62.01 |
| 0.650 | ±0.005 | 0.027 | 0.690 | ---- | 3500.00 | 28.00 | 5.00 | 50.30 | 52.77 |
| 0.700 | ±0.005 | 0.029 | 0.742 | ---- | 3500.00 | 28.00 | 5.00 | 43.42 | 45.45 |
| 0.750 | ±0.005 | 0.030 | 0.794 | ---- | 3800.00 | 28.00 | 5.00 | 37.86 | 39.55 |
| 0.800 | ±0.005 | 0.032 | 0.846 | ---- | 3800.00 | 28.00 | 5.00 | 33.30 | 34.73 |
Tianjin Ruiyuan Electric Material Co,.Ltd
RUIYUAN was established in 2002, located in Tianjin City,the second
largest port city in China.We have been focusing on different kinds
of high quality wires: enameled round copper wire, rectangular
enameled copper triple insulated wire, silk covered Litz wire,
bonding wire and special enameled wire for 21 years.Ruiyuan is one
of the pioneers in producing micro thin enameled wires below 0.03mm
in China. Our R & D team has 20 years of market experience. In
2019, our finest diameter is 0.011mm, and mass production has been
achieved. All of our products are UL, RoHS certified, in line with
industry standards IEC60317, JIS C 3202, NEMA, NW82.
