    Aiw 220 Rectangular Copper Wire Size 0.5mm 0.7mm High Temperature

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.50mm*0.70mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    Aiw 220 Rectangular Copper Wire Size 0.5mm 0.7mm High Temperature

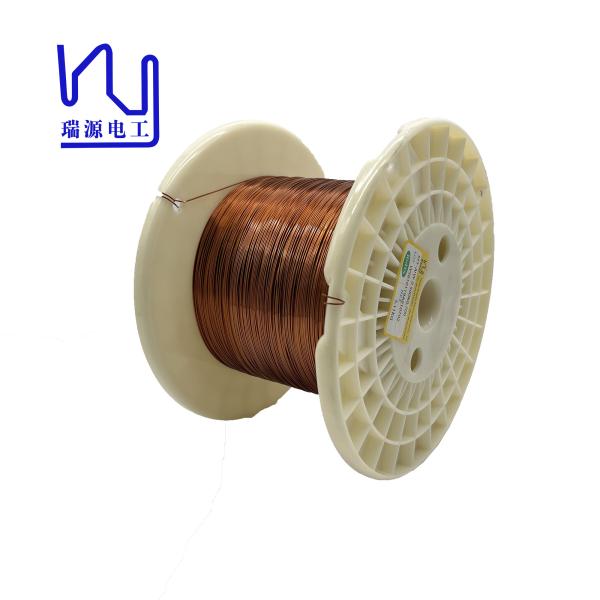

    AIW 220 0.5mm 0.7mm High Temperature Rectangular Enameled Copper Winding Wire

    Ultra-fine high-temperature enamelled flat wire can not only be applied to electrical equipment in various high-temperature environments, but also suitable for high-frequency, high-voltage and high-level integrated circuit systems, which greatly broadens its application range.


    Product name

    AIW 220 0.5mm 0.7mm High Temperature Rectangular Enameled Copper Winding Wire

    Coating material

    AIW

    Thermal class

    220

    Key word

    AIW 220 0.5mm 0.7mm High Temperature Rectangular Enameled Copper Winding Wire


    0.500*0.700 AIW rectangular enameled copper wire

    Item

    conductor dimensionThickness Of InsulationOverall dimension

    Dielectric

    breakdown

    voltage

    Pinhole


    Conductor resistance


    Elongation


    Apperance


    Flexibility


    Adherence


    Thermal

    shock

    ThicknessWidthThicknessWidthThicknessWidth
    UnitmmmmmmmmmmmmkvPcs/mΩ/km 20℃%

    No to be

    scratched

    No dirt


    No crack


    No crack


    No crack

    SPEC

    0.5000.7000.0250.025
    Max0.5090.7600.0400.0400.5500.800362.250
    Min0.4910.6400.0100.0100.70030
    No. 10.4940.7110.0240.0220.5410.7552.310

    0

    53.461

    35

    No to be

    scratched

    No dirt


    Good


    Good


    Good

    No. 2
    2.201
    No. 42.240
    No. 52.056
    Ave0.4940.7110.0240.0220.5410.7552.233
    Number of reading1111115
    Min. reading0.4940.7110.0240.0220.5410.7552.056
    Max. reading0.4940.7110.0240.0220.5410.7552.360
    Range0.0000.0000.0000.0000.0000.0000.304
    ResultOKOKOKOKOKOKOKOKOKOKOKOKOKOK
