    2ustc-F 180 0.04mm / 420 Ustc Litz Wire Silk Covered Copper For Motor

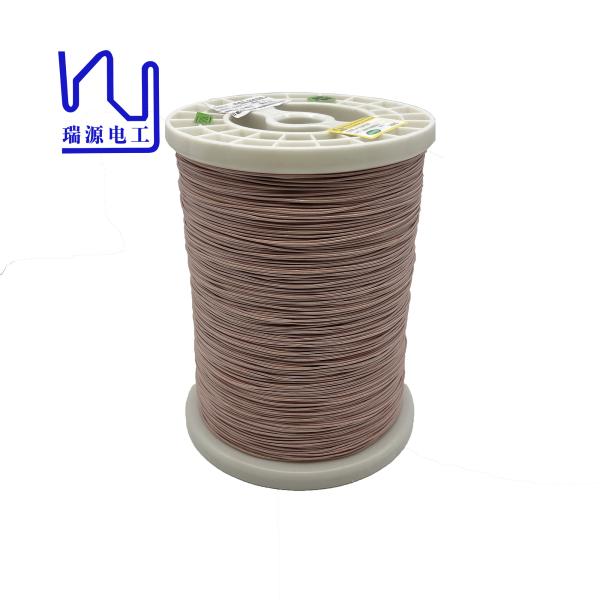

    2USTC-F 180 0.04mm / 420 Silk covered copper litz wire for motor

    This wire is covered with nylon yarn, the single wireis 0.04mm enameled copper wire. We use polyurethane lacquered single wire that can be directly welded, so that the silk covered litz wire has good temperature resistance, and the maximum temperature resistance can reach 155 degrees.


    If you need wires with higher temperature resistance, we also provide 180 degree and 200 degree options. This wire is twisted by 420 strands.


    2USTC-F 180 0.04mm / 420 Silk covered copper litz wire for motor

    Item

    Technical requirement(mm)

    Sample 1

    Sample 2

    Outer diameter

    0.077-0.084

    0.078

    0.081

    Conductor diameter(mm)

    0.071±0.003

    0.068

    0.07

    Pitch(mm)

    29±5

    Conductor Resistance(Ω/km at 20℃)

    Max. 0.05940

    0.0541

    0.0540

    Breakdow Voltage(v)

    Min.950

    3400

    3000

    Key word

    2USTC-F 180 0.04mm / 420 Silk covered copper litz wire for motor
