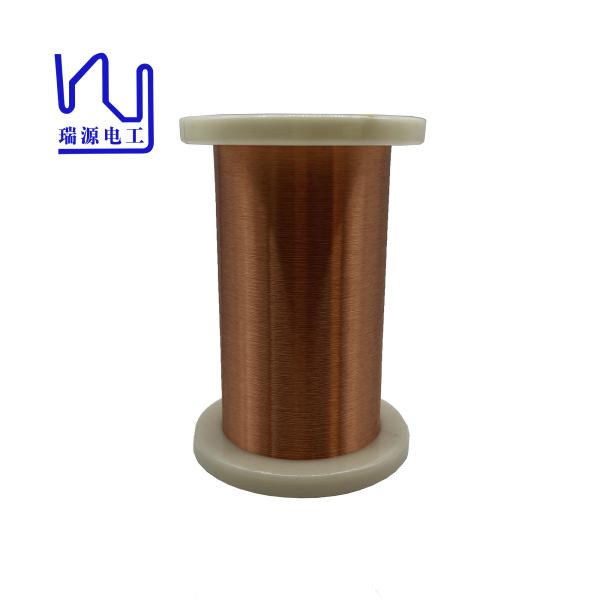

    2uew 0.050mm Self Bonding Wire Enameled Round Copper Winding Wire

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.05mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    2uew 0.050mm Self Bonding Wire Enameled Round Copper Winding Wire

    2UEW 0.050mm Self Bonding Enameled Round Copper Winding Wire

    The coils of electronic equipment such as stereos and speakers usually use self-adhesive enamelled copper wires.


    Its high electrical conductivity and excellent thermal conductivity can ensure the high-fidelity performance of audio equipment.


    Self-adhesive enamelled copper wire is also commonly used in household appliances, communication equipment, electronic instruments and meters, etc., providing stable and reliable electrical characteristics for various circuit connections.


    Key word

    2UEW 0.050mm Self Bonding Enameled Round Copper Winding Wire

    Characteristics

    Technical requests

    Reality Value

    Min

    Ave

    Max

    Bare Wire Diameter(mm)

    0.050±0.002

    0.050

    0.050

    0.050

    (Basecoat dimension)Overall mimensions(mm)

    Max. 0.061

    0.0602

    0.0603

    0.0604

    Insulation Film Thickness(mm)

    Min 0.003

    0.004

    0.004

    0.004

    Bonding Film Thickness(mm)

    Min 0.0015

    0.002

    0.002

    0.002

    Enamel Continuity(50v/30m)

    Max.60

    0

    Breakdown Voltage(V)

    Min.300

    1201

    Resistance to Solftening(Cut Through)℃

    Continue 2 times pass

    170℃/Good

    Solder test(375℃±5℃)s

    Max.2

    Max.1.5

    Bonding Strength(g)

    Min.5

    12

    Electrical Resistance(20℃)Ω/m

    8.632-8.959

    8.80

    8.81

    8.82

    Elongation%

    Min.16

    20

    21

    22
