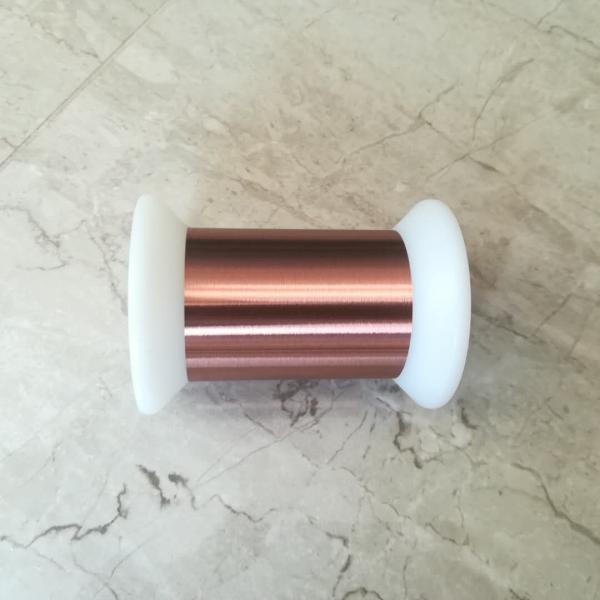

    Audio Use Self Bonding Magnet Wire 0.07mm Alcohol Activated

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.07mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    Audio Use Self Bonding Magnet Wire 0.07mm Alcohol Activated

    Audio Use 0.07mm Alcohol Activated Self Bonding Magnet Wire


    Voice coil is a new high-quality product that can help you optimize your sound. It is manufactured with the latest materials to give you an excellent acoustic experience.


    Voice coil wire is an important product of our company. The voice coil wire we currently produce is mainly suitable for high-end audio.This unique product will greatly enhance the distance, cleanliness and brightness of the sound you hear.


    haracteristics
    Technical requests
    Test Results
    Sample 1
    Sample 2
    Sample 3
    Surface
    Good
    OK
    OK
    OK
    Bare Wire Diameter
    0.070±
    0.002
    0.070
    0.070
    0.070
    0.002
    Coating Thickness
    min. 0.003mm
    0.004
    0.004
    0.004
    Bonding Thickness
    min. 0.003mm
    0.004
    0.004
    0.004
    Overall Diameter
    max. 0.087mm
    0.0854
    0.0854
    0.0854

    Name

    Audio Use 0.07mm Alcohol Activated Self Bonding Magnet Wire

    Key word

    Audio Use 0.07mm Alcohol Activated Self Bonding Magnet Wire

    Insulationh

    Enamel

    Thermal rating

    155/180

    Diameter of the enameled copper wire

    0.07mm
