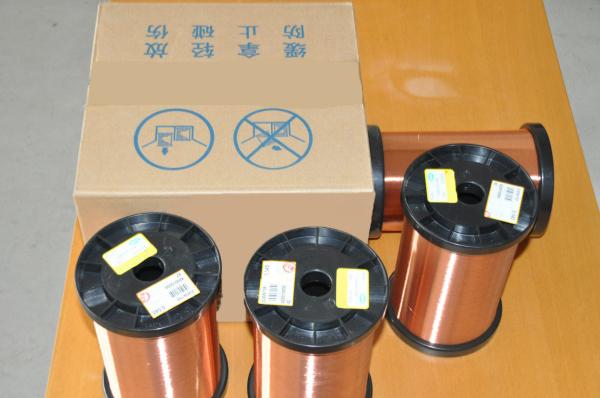

    Electric Motor Winding Materials Enameled Copper Wire

    Ask Lasest Price
    Brand Name : RVYUAN
    Model Number : UEW
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    Electric Motor Winding Materials Enameled Copper Wire

    Electric Motor Winding Materials Enameled Copper Wire

    Magnet wire is used in windings of electric motors, transformers, inductors, generators, headphones, loudspeaker coils, hard drive head positioners, electromagnets, and other devices.

    Electric motors convert electrical energy into mechanical motion, usually through the interaction of magnetic fields and current-carrying conductors. Electric motors are found in numerous diverse applications, such as fans, blowers, pumps, machines, household appliances, power tools, and disk drives. The very largest electric motors with ratings in the thousands of kilowatts are used in such applications as the propulsion of large ships. The smallest motors move the hands in electric wristwatches.

    Item
    Electric Motor Winding Materials Enameled Copper Wire
    Key wordElectric Motor Winding Materials Enameled Copper Wire
    Coating
    Polyurethane
    Thermal grade
    155
    Characteristics
    Technical requests
    Test Results
    Sample 1
    Sample 2
    Surface
    Good
    OK
    OK
    Bare Wire Diameter
    0.080±0.002
    0.45
    0.45
    Coating Thickness
    ≥ 0.008 mm
    0.011
    0.012
    Overall Diameter
    ≤ 0.094 mm

    0.091
    0.092
    Conductor Resistance
    ≤ 3.608 Ω/m
    3.456
    3.443
    Elongation
    ≥ 16 %
    19
    19
    Breakdown Voltage
    ≥ 425 V
    1578
    1496
    Pinhole Test
    ≤ 5 holes/5m
    0
    0
    Continuity
    ≤ 40 holes/30m
    0
    0
    Test Items
    Technical Requests
    Results
    Adhesive
    Coating layer is good
    OK
    Cut-through
    200℃ 2minsno breakdown
    OK
    Heat Shock
    175±5℃/30minno crack
    OK
    Solder Ability
    390± 5℃ 2SecNo blister, no expansion, no shed
    OK
