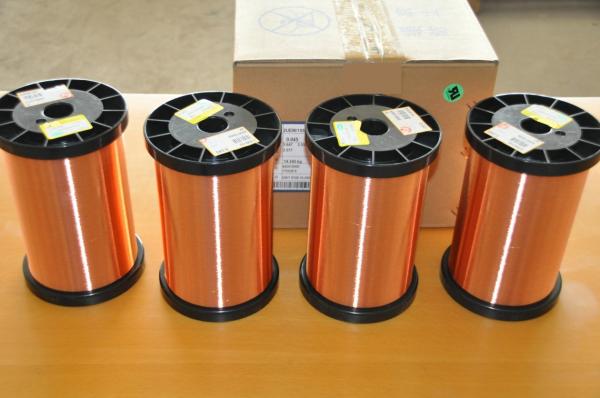

    SWG / AWG Submersible Winding Wire Enamelled Copper Wire For Motor Winding

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.08mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    SWG / AWG Submersible Winding Wire Enamelled Copper Wire For Motor Winding

    SWG / AWG Submersible Winding Wire Enamelled Copper Wire for Motor Winding

    In practice, maximum current density can vary from 2.5 A/mm2 for a wire isolated from free air to 6 A/mm2 for a wire in free air.If the wire is carrying high frequency currents (above 10 kHz), the skin effect may affect the distribution of the current across the section by concentrating the current on the surface of the conductor.

    If active cooling is provided by blowing air or circulating water, then much higher current densities can be achieved - proportionally to the effectiveness of cooling.

    Item
    SWG / AWG Submersible Winding Wire Enamelled Copper Wire for Motor Winding
    Key wordSWG / AWG Submersible Winding Wire Enamelled Copper Wire for Motor Winding
    Coating
    Polyurethane
    Thermal grade
    155
    Characteristics
    Technical requests
    Test Results
    Sample 1
    Sample 2
    Surface
    Good
    OK
    OK
    Bare Wire Diameter
    0.080±0.002
    0.45
    0.45
    Coating Thickness
    ≥ 0.008 mm
    0.011
    0.012
    Overall Diameter
    ≤ 0.094 mm

    0.091
    0.092
    Conductor Resistance
    ≤ 3.608 Ω/m
    3.456
    3.443
    Elongation
    ≥ 16 %
    19
    19
    Breakdown Voltage
    ≥ 425 V
    1578
    1496
    Pinhole Test
    ≤ 5 holes/5m
    0
    0
    Continuity
    ≤ 40 holes/30m
    0
    0
    Test Items
    Technical Requests
    Results
    Adhesive
    Coating layer is good
    OK
    Cut-through
    200℃ 2minsno breakdown
    OK
    Heat Shock
    175±5℃/30minno crack
    OK
    Solder Ability
    390± 5℃ 2SecNo blister, no expansion, no shed
    OK
