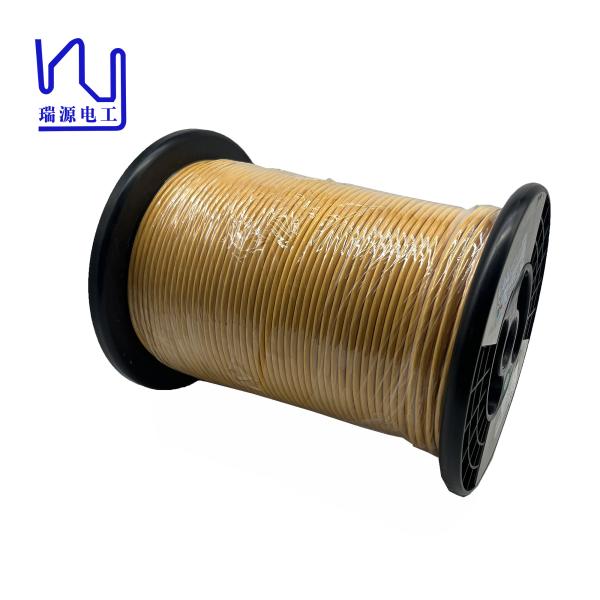

0.08mm*1700 Copper Conductor Triple Insulated Litz Wire

Tianjin Ruiyuan Electric Material Co,.Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 0.08mm*1700 Copper Conductor Triple Insulated Litz Wire from wholesalers

    Buy cheap 0.08mm*1700 Copper Conductor Triple Insulated Litz Wire from wholesalers
    • Buy cheap 0.08mm*1700 Copper Conductor Triple Insulated Litz Wire from wholesalers

    0.08mm*1700 Copper Conductor Triple Insulated Litz Wire

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.08x1700
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    0.08mm*1700 Copper Conductor Triple Insulated Litz Wire

    litz wrie triple insulated wire 0.08mm*1700 Copper conductor


    ETFE triple insulated wire is engineered to perform well in a wide range of applications from the aerospace and automotive industries to medical devices and consumer electronics. Its excellent insulation properties make it an excellent choice for high-frequency signal transmission, power distribution and control systems.


    The triple-insulated design provides enhanced protection against electrical breakdown, ensuring reliable performance even in the most challenging conditions. Whether in harsh industrial environments or critical medical equipment, our ETFE triple insulated wire provides unparalleled reliability and durability.


    Comparison table of dimensional parameters of insulated wire (table C)


    FTIW-F-Y 0.08*1700

    Specification (nominal diameter of conductor * number of

    strands)

    Single line [mm]LITZ WIRE

    Conductor tolerance

    Min.paint film

    thickness


    Finished outside diameter


    molding


    Twist [MM]


    0.08*1700


    0.08±0.003


    0.003


    0.086-0.097

    0.08*68S1=45±3
    0.08*68*5S2=45±3
    0.08*68*5*5S3=66±5

    0.08*1700 Finished product line

    Temperature resistance grade ℃


    Straight weldability [s] (430℃±10℃)

    Max.


    resistance [Ω/m]

    (20℃)

    Max.

    Withstand voltage AC to stranded wire (Leakage current 5mA)

    Min.


    Thickness of single insulating layer(mm)


    Max.finished outside diameter[mm]


    155


    6


    2.29


    6000


    0.11±0.01


    4.80
