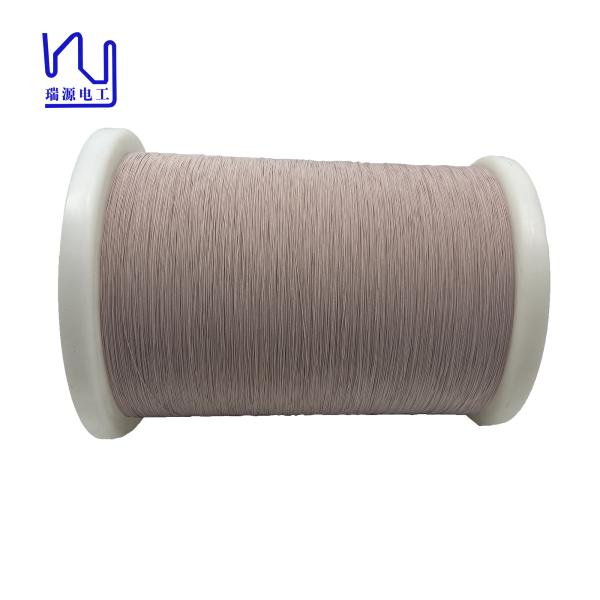

High Frequency Stranded Silk Covered Litz Wire

Ask Lasest Price
Brand Name :	Ruiyuan
Model Number :	USTCF litz wire
Certification :	UL/ISO9001/ISO14001/RoHS/Reach
Price :	Negotiation
Payment Terms :	TT/Paypal
Supply Ability :	100kg/week
Delivery Time :	7 days

Add to Cart

Product Details
Company Profile

High Frequency Stranded Silk Covered Litz Wire

High Frequency Stranded Silk Covered Litz Wiree

Of course, when designing new litz wire, the number of strands is chosen with the size of the individual wires in mind. More important is the resistance it need to achieve, the outer diameter, etc. We have a team of professionals who can support you in this regard.

Whether you require specific specifications or a unique configuration, we can produce custom silk-covered wire to your design. Additionally, we are able to press the wire into flat wire covered litz wire, allowing further customization to your width and thickness preferences.

Description Conductor diameter*Strand number		1USTC-F 0.08*10
Single wire	Conductor diameter(mm)	0.080
	Conductor diameter tolerance (mm)	±0.003
	Minimal insulation thickness(mm)	0.007
	Maximal overall diameter (mm)	0.120
	Thermal Class (℃)	155
Strand Composition	Strand number	10
	Pitch(mm)	29±5
	Stranding direction	S
Insulation layer	Category	Polyester
	UL	/
	Material specs(mm*mm or D)	250
	Times of Wrapping	1
	Overlap(%) or thickness(mm),mini	0.02
	Wrapping direction	S
Characteristics	Max O. D (mm)	0.45
	Max pin holes 个/6m	20
	Max resistance (Ω/Km at20℃)	377.5
	Mini breakdown voltage (V )	2000
