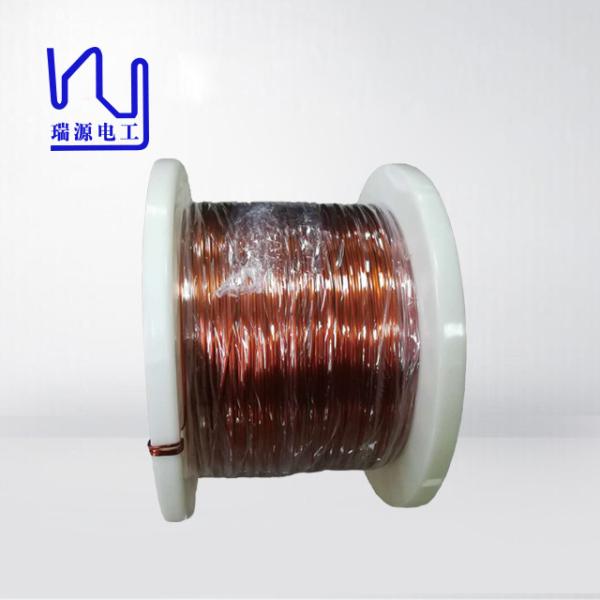

Flat Enameled Copper Wire 4.0mm For Generator

Ask Lasest Price
Brand Name :	Rvyuan
Model Number :	Class 220
Certification :	IEC/NEMA/JIS/RoHS/ISO
Price :	Negotiation
Payment Terms :	Negotiation, T/T, L/C
Supply Ability :	Satisfy your demand
Delivery Time :	2-15 workding days

Add to Cart

Product Details
Company Profile

Flat Enameled Copper Wire 4.0mm For Generator

Flat Enameled Copper Wire 4.0mm For Generator

Ruiyuan's custom enameled flat copper wire is a versatile and reliable solution for a variety of industrial applications. With a commitment to customization and quality, we strive to meet the unique needs of our customers and provide them with the best solutions for their electrical and electronic requirements.

Item		Conductor dimension		Thickness Of Insulation		Overall dimension		Dielectric breakdown voltage	Pinhole	Conductor resistance
		Thickness	Width	Thickness	Width	Thickness	Width
Unit		mm	mm	mm	mm	mm	mm	kv	Pcs/m	Ω/km 20℃
SPEC	AVE	0.500	0.700	0.025	0.025	–	–
	Max	0.509	0.760	0.040	0.040	0.550	0.800		3	62.250
	Min	0.491	0.640	0.010	0.010	–	–	0.700
No. 1		0.494	0.711	0.024	0.022	0.541	0.755	2.310	0	53.461
No. 2		–	–	–	–	–	–	2.360
No. 3		–	–	–	–	–	–	2.201
No. 4		–	–	–	–	–	–	2.240
No. 5		–	–	–	–	–	–	2.056
Ave		0.494	0.711	0.024	0.022	0.541	0.755	2.233
Number of reading		1	1	1	1	1	1	5
Min. reading		0.494	0.711	0.024	0.022	0.541	0.755	2.056
Max. reading		0.494	0.711	0.024	0.022	0.541	0.755	2.360
Range		0.000	0.000	0.000	0.000	0.000	0.000	0.304
Result		OK	OK	OK	OK	OK	OK	OK	OK	OK
