Brand Name : | Ruiyuan |
Model Number : | OCC |
Certification : | UL/ISO9001/ISO14001/RoHS/Reach |
Price : | Negotiation |
Payment Terms : | Negotiation |
Supply Ability : | 10/week |
Delivery Time : | 2-15 days |

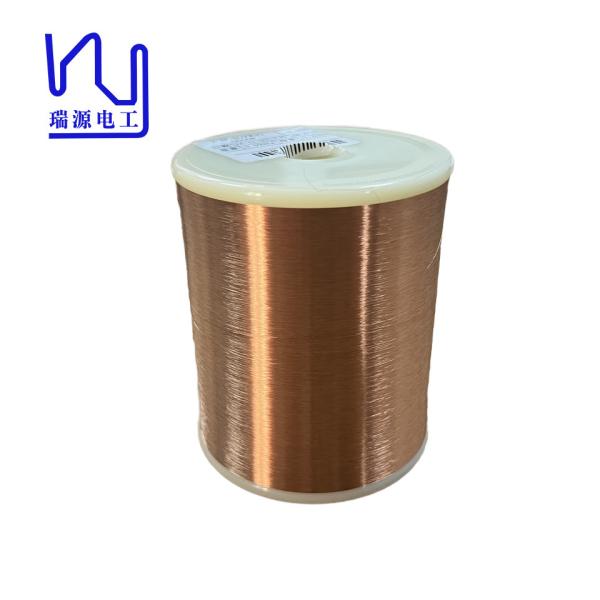

6N OCC 0.025mm Pure Self Bonding Enameled Copper Wire For Audio Cable
One of the outstanding features of our high purity enameled copper wire is its hot air self-adhesive properties. This innovative design allows for easy, secure bonding during audio cable assembly without the need for additional adhesives or complex processes.
The ability to self-adhesive not only simplifies the construction of high-end audio cables, but also contributes to a more reliable and durable connection. This means you can focus on enjoying your music rather than worrying about the integrity of your cables.
Name | 6N OCC 0.025mm Pure Self Bonding Enameled Copper Wire For Audio Cable |
Key word | 6N OCC 0.025mm Pure Self Bonding Enameled Copper Wire For Audio Cable |
Thermal rating | 155 |
Item | Tech requirement | Test value | ||
Overall dimention mm | Max.0.035 | 0.035 | 0.034 | 0.0345 |
Conductor Diameter mm | 0.025±0.002 | 0.025 | 0.025 | 0.025 |
Conductor resistance Ω/m | Tested value | 35.1 | 35.1 | 35.1 |
Pinhole (5m) pcs | Max 5 | 0 | 0 | 0 |
Elongation % | Min 10 | 16.8 | 15.2 | 16 |
Solderability | Max 2 | OK |
![]() |
