Flat Enameled Copper Wire With Thermal Rating 180 - 220

Ask Lasest Price
Brand Name :	Rvyuan
Model Number :	Class 220
Certification :	IEC/NEMA/JIS/RoHS/ISO
Price :	Negotiation
Payment Terms :	Negotiation, T/T
Supply Ability :	Satisfy your demand
Delivery Time :	2-15 workding days

Add to Cart

Product Details
Company Profile

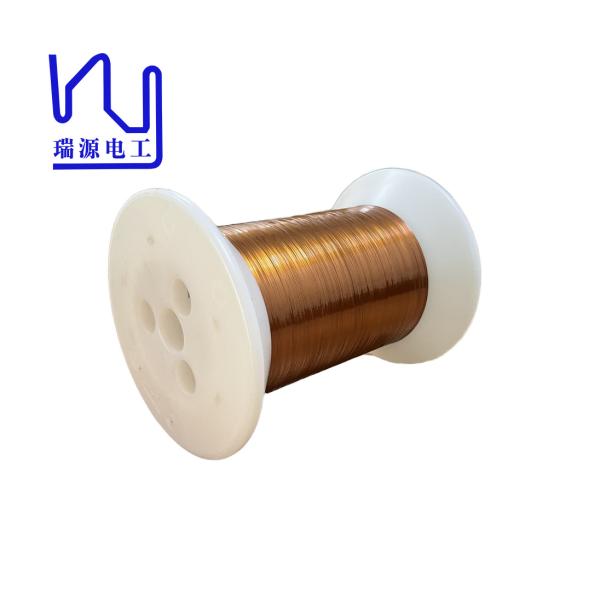

Flat Enameled Copper Wire With Thermal Rating 180 - 220

Flat Enameled Copper Wire With Thermal Rating 180 - 220

The high temperature resistance of our wire plays a vital role in its application. Audio equipment often generates heat during operation, and using wire that can withstand high temperatures ensures longevity and reliability. This feature is especially important in professional audio settings, where equipment is often pushed to its limits. Our enameled copper wire not only meets these requirements, but exceeds them, providing peace of mind for users who rely on audio systems for personal enjoyment and professional performances.

Item		Conductor dimension		Unilateral insulation thickness		Overall dimension		Dielectric breakdown voltage	Conductor resistance
		Thickness	Width	Thickness	Width	Thickness	Width
Unit		mm	mm	mm	mm	mm	mm	kv	Ω/km 20℃
SPEC	AVE	0.030	0.500	0.005	0.039	0.039	0.510
	Max	0.034	0.0520	0.006	0.043	0.043	0.530		1398
	Min	0.091	1.940	0.010	0.010	0.035	0.490	0.500	989
No. 1		0.104	1.992	0.020	0.013	0.038	0.513	0.965	1164
No. 2								0.725
No. 3								0.852
No. 4								0.632
No. 5								0.864
Ave		0.030	0.501	0.004	0.006	0.038	0.513	0.808
NO of reading		1	1	1	1	1	1	5
Min. reading		0.030	0.501	0.004	0.006	0.038	0.513	0.632
Max. reading		0.030	0.501	0.004	0.006	0.038	0.513	0.965
Range		0.000	0.000	0.000	0.000	0.000	0.000	0.333
Result		OK	OK	OK	OK	OK	OK	OK	OK
