0.1 * 1.5mm Class 155 180 220 Rectangular / Flat Enamelled Copper Wire

Ask Lasest Price
Brand Name :	Rvyuan
Model Number :	Class 220
Certification :	IEC/NEMA/JIS/RoHS/ISO
Price :	Negotiation
Payment Terms :	Negotiation, T/T
Supply Ability :	Satisfy your demand
Delivery Time :	2-15 workding days

Add to Cart

Product Details
Company Profile

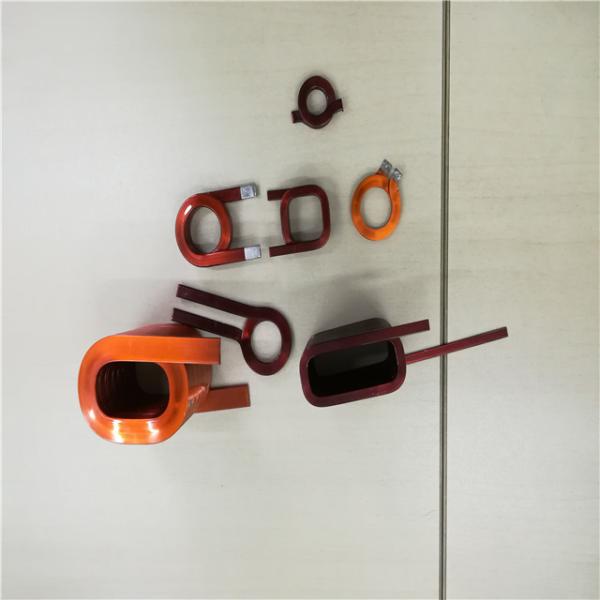

0.1 * 1.5mm Class 155 180 220 Rectangular / Flat Enamelled Copper Wire

0.1 * 1.5mm Class 155 180 220 Rectangular / Flat Enamelled Copper Wire

In the ever-evolving field of industrial applications, the need for reliable, efficient materials is crucial. Among them, high-temperature enameled flat copper wire stands out as the best choice for various fields such as motor and transformer windings and automotive applications. With an exceptional temperature resistance level of 220 degrees Celsius, this wire is able to withstand extreme conditions while maintaining optimal performance. This introduction will delve into the characteristics, advantages and diverse applications of enameled flat copper wire, highlighting its significance in modern industry.

Item		conductor dimension		Unilateral insulation layer thickness		Overall dimension		Dielectric breakdown voltage	Conductor resistance	Elongation
Item		Thickness	Width	Thickness	Width	Thickness	Width	Dielectric breakdown voltage	Conductor resistance	Elongation
Unit		mm	mm	mm	mm	mm	mm	kv	Ω/km 20℃	%
SPEC	AVE	0.100	1.500	0.025	0.025
	Max	0.109	1.560	0.040	0.040	0.150	1.600		124.770
	Min	0.091	1.440	0.010	0.010			0.700		30
No. 1		0.101	1.537	0.021	0.012	0.143	1.560	1.320	120.540	42
No. 2								1.850
No. 3								1.360
No. 4								2.520
No. 5								2.001
No. 6
No. 7
No. 8
No. 9
No. 10
Avg		0.101	1.537	0.021	0.012	0.143	1.560	1.810
Number of reading		1	1	1	1	1	1	5
Min. reading		0.101	1.537	0.021	0.012	0.143	1.560	1.320
Max. reading		0.101	1.537	0.021	0.012	0.143	1.560	2.520
Range		0.000	0.000	0.000	0.000	0.000	0.000	1.200
Result		OK	OK	OK	OK	OK	OK	OK	OK	OK
