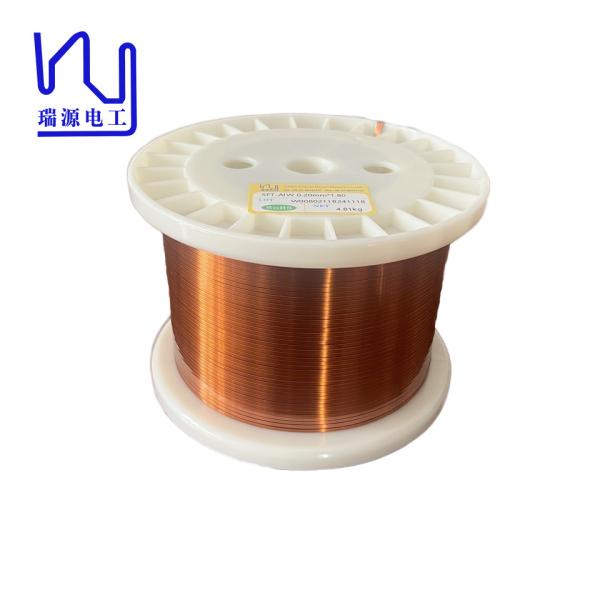

AIW 0.20*1.80mm 220℃ Flat Enamelled Copper Wire For Motor Windings

Tianjin Ruiyuan Electric Material Co,.Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap AIW 0.20*1.80mm 220℃ Flat Enamelled Copper Wire For Motor Windings from wholesalers

    Buy cheap AIW 0.20*1.80mm 220℃ Flat Enamelled Copper Wire For Motor Windings from wholesalers
    • Buy cheap AIW 0.20*1.80mm 220℃ Flat Enamelled Copper Wire For Motor Windings from wholesalers

    AIW 0.20*1.80mm 220℃ Flat Enamelled Copper Wire For Motor Windings

    Ask Lasest Price
    Brand Name : Rvyuan
    Model Number : Class 220
    Certification : IEC/NEMA/JIS/RoHS/ISO
    Price : Negotiation
    Payment Terms : Negotiation, T/T, L/C
    Supply Ability : Satisfy your demand
    Delivery Time : 2-15 workding days
    • Product Details
    • Company Profile

    AIW 0.20*1.80mm 220℃ Flat Enamelled Copper Wire For Motor Windings

    AIW 0.20*1.80mm 220℃ Flat Enamelled Copper Wire for Motor Windings

    This Ultrafine High Temperature Flat Enameled copper Wire is a premium product that combines superior performance with customization options to meet the needs of our customers. Whether you are involved in the manufacture of electric motors, transformers, or other electronic devices, our enameled flat copper wire will provide excellent results. With its high temperature resistance, customizable sizes, and efficient design, this wire will become an essential part of your next project. When choosing the right enameled flat wire for your application, trust our expertise and commitment to quality.

    TEST REPORT

    Model

    SFT-AIW

    Date


    Size(mm):

    0.200 × 1.800

    Lot

    /



    Item

    conductor dimension

    Unilateral insulation

    layer thickness

    Overall dimension

    Dielectric

    breakdown

    voltage


    Pinhole


    Conductor resistance


    Elongation


    Apperance


    Flexibility


    Adherence


    Thermal

    shock

    Thickness

    Width

    Thickness

    Width

    Thickness

    Width

    Unit

    mm

    mm

    mm

    mm

    mm

    mm

    kv

    Pcs/m

    Ω/km 20℃

    %

    No to be

    scratched

    No dirt


    No crack


    No crack


    No crack


    SPEC

    AVE

    0.200

    1.800

    0.025

    0.025







    Max

    0.209

    1.860

    0.040

    0.040

    0.250

    1.900


    3

    52.500


    Min

    0.191

    1.740

    0.010

    0.010



    0.700



    30

    No. 1

    0.205

    1.806

    0.019

    0.015

    0.242

    1.835

    1.320


    0


    46.85?0


    38


    No to be

    scratched

    No dirt


    Good


    Good


    Good

    No. 2







    1.020

    No. 3







    2.310

    No. 4







    2.650

    No. 5







    1.002

    No. 6








    No. 7








    No. 8








    No. 9








    No. 10








    Avg

    0.205

    1.806

    0.019

    0.015

    0.242

    1.835

    1.660

    Number of reading

    1

    1

    1

    1

    1

    1

    5

    Min. reading

    0.205

    1.806

    0.019

    0.015

    0.242

    1.835

    1.002

    Max. reading

    0.205

    1.806

    0.019

    0.015

    0.242

    1.835

    2.650

    Range

    0.000

    0.000

    0.000

    0.000

    0.000

    0.000

    1.648

    Result

    OK

    OK

    OK

    OK

    OK

    OK

    OK

    OK

    OK

    OK

    OK

    OK

    OK

    OK

    AIW 0.20*1.80mm 220℃ Flat Enamelled Copper Wire For Motor Windings
