0.1mmx 80 Natural Silk Covered Litz Wire Green / Red Wire

Ask Lasest Price
Brand Name :	Ruiyuan
Model Number :	USTCF litz wire
Certification :	UL/ISO9001/ISO14001/RoHS/Reach
Price :	Negotiation
Payment Terms :	TT/Paypal
Supply Ability :	100kg/week
Delivery Time :	7 days

Add to Cart

Product Details
Company Profile

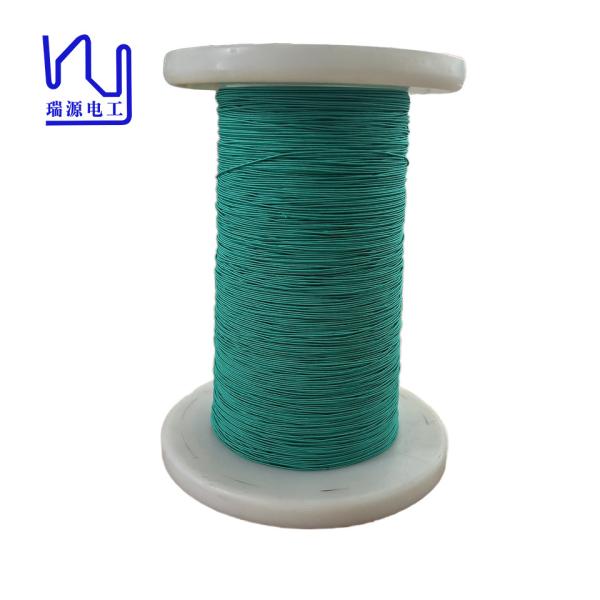

0.1mmx 80 Natural Silk Covered Litz Wire Green / Red Wire

0.1mmx 80 Natural Silk Covered Litz Wire Green/ Red Wire
The inner core consists of 80 strands of 0.1mm enameled copper wire, designed to minimize signal loss and maximize fidelity. This unique combination of materials makes our Silk Covered Litz Wire an excellent choice for high-end audio applications.
Whether you design speakers, amplifiers, or other audio components, our silk-wrapped Litz wire can help you achieve the clarity and richness that discerning listeners crave.

Type Conductor diameter*Strand number			2USTC-F 0.10*80
Single wire(strand)	Conductor diameter(mm)		0.100±0.003
	overall diameter (mm)		0.107-0.125
	Thermal Class(℃)		155
Strands construction	Strands number		80
	Pitch(mm)		29±5
	bunching direction		S
Insulation layer	Material type		Natural silk
	Material specs(mm*mm or D)		300
	Times of Wrapping		1
	Overlap(%) or thickness(mm),mini		0.02
	Wrapping direction		S
Characteristics	Overall Diameter	Nominal (mm)	1.20
		Max(mm)	1.28
	Max pinholes Faults/6m		40
	Max resistance (Ω/Km at20℃)		29.76
	Breakdown voltage Mini (V)		1100
